HOTSPOT
You have a System Center 2012 Virtual Machine Manager (VMM) infrastructure.
You create a SQL Server Profile.
You plan to deploy new virtual machines based on a virtual machine template named VT1.
You need to ensure that the SQL Server Profile is applied to the new virtual machines.
Which object should you create from the VMM Administrator Console?
To answer, select the appropriate object type in the answer area.

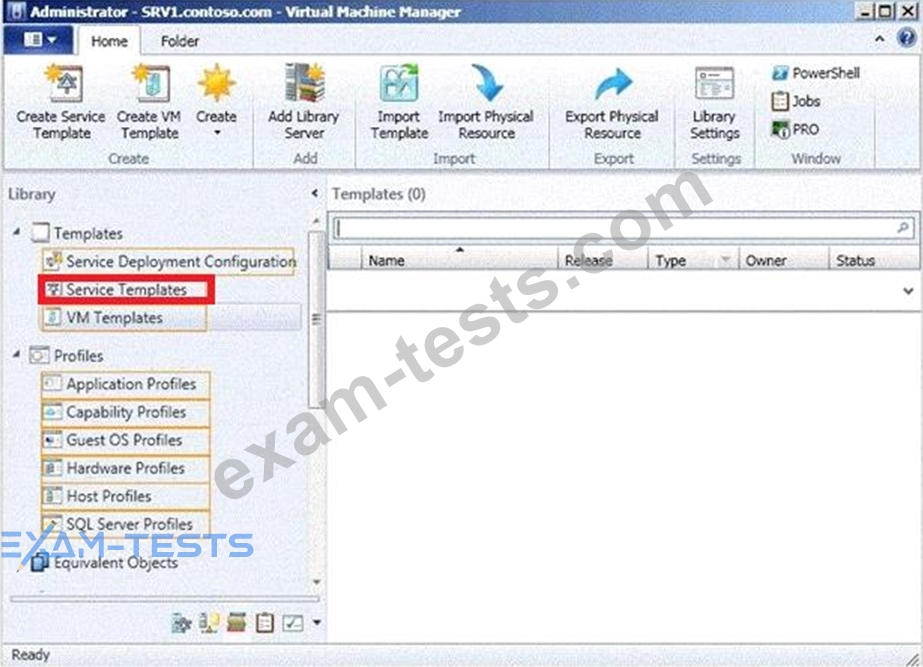

Correct Answer:

Explanation:
SQL Server Profile is supported for services, but not for standalone VM creation. Therefore, there are three main steps
to use SQL Server profile to deploy VMs and configure SQL Server:
1. Create SQL Server profile.
2. Create Service Template.
3. Deploy Service.
Reference:
http://blogs.technet.com/b/scvmm/archive/2011/09/27/vmm-2012-sql-server-profile.aspx?Redirected=true

DRAG DROP
You need to recommend a solution that meets the manageability requirements of Customer1 after a stamp and a
tenant object for Customer1 are created in Service Provider Foundation.

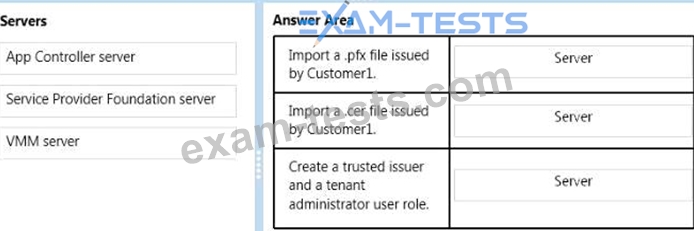

From which server should you recommend performing each task? To answer, drag the appropriate servers to the
correct tasks. Each server may be used once, more than once, or not at all. You may need to drag the split bar
between panes or scroll to view content.

Correct Answer:

Case Study: 7
Woodgrove Bank
Overview
Existing Environment
Active Directory Environment
The network contains a single Active Directory production forest named woodgrovebank.com.
Currently, there is no trust relationship between the Active Directory forests of Woodgrove Bank and
Contoso.
Network Environment
Woodgrove Bank has a perimeter network that hosts Internet-facing servers.
Woodgrove Bank uses Hyper-V Network Virtualization to isolate its production, development, and test
environments.
Woodgrove Bank has a Microsoft Azure subscription.
System Center Environment
Woodgrove Bank deploys infrastructure servers that host the following System Center 2012 R2 components.
Operations Manager
*
Data Protection Manager (DPM)
*
Virtual Machine Manager (VMM)
*
Woodgrove Bank plans to deploy Service Provider Foundation, System Center 2012 R2 Orchestrator, and
System Center 2012 R2 Service Manager.
All of the internal Hyper-V hosts and the file servers on the Woodgrove Bank network are registered with
VMM. VMM and Windows Server Update Services (WSUS) are integrated. Woodgrove Bank has three
VMM logical networks intended for clients, management, and storage. Each VMM logical network is
configured to use a host group of All Hosts.
The Operations Manager agent is deployed to each server.
On-premises Computing and Application Environment

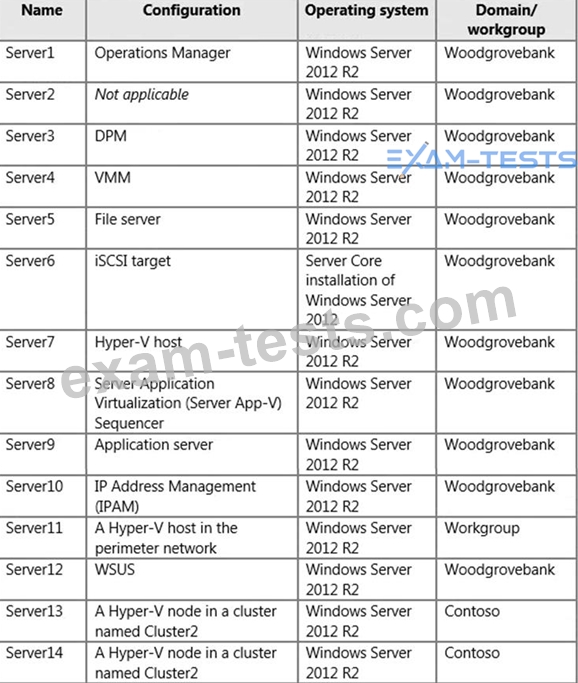

The main office has the servers configured as shown in the following table.

Server5 and Server6 were added to VMM by using explicit user credentials.
A Windows update named Update1 is part of the baseline assigned to All Hosts.
Server3 is configured to have a 2-TB storage pool. Tapes are used for long term backup.
An application named App2 is installed on Server9. App2 requires complex installation and manual setup.
Requirements
Planned Changes
Woodgrove Bank plans to implement the following changes:
Deploy Service Manager.
*
Integrate Orchestrator and Service Manager.
*
Deploy all of the components of Orchestrator.
*
Deploy Service Provider Foundation to Server2.
*
Replace the tape backups with Microsoft Azure Backup.
*
Use a domain account named WOODGROVEBANK\vmmuser1 to view and modify the IP address
*
space in IPAM.
Provide additional SMB storage to Server7 from Server5.
*
Provide additional iSCSI storage to Server7 from Server5.
*
Connectivity Requirements
Woodgrove Bank identifies the following connectivity requirements:
Minimize the Internet bandwidth used by the backups.
*
Create a logical switch that will allow you to restrict host access to the logical networks of the clients
*
only.
Provide external connectivity to the virtual machine networks that are isolated from the clients by
*
using the Network Virtualization using Generic Routing Encapsulation (NVGRE) gateway.
Application Requirements
Woodgrove Bank identifies the following application requirements:
Minimize the number of VMM service template versions used to deploy App1.
*
Create Server App-V packages while minimizing the impact on the existing environment.
*
Deploy five instances of a multi-tier application named App1 by using a VMM service template. Each
*
instance will have different deployment settings.
Compliance Requirements
Woodgrove Bank identifies the following compliance requirements:
Use the principle of least priviledge, whenever possible.
*
Leverage Azure-based services for assessing the on-premises environment.
*
Exclude Server7 from the installation of Update1. The missing patch must not affect the compliance
*
status of Server7 against the baseline assigned to All Hosts.

Your network contains an Active Directory domain. The domain contains two servers named Server1 and Server2.
Server1 has System Center 2012 Virtual Machine Manager (VMM) installed. Server2 has System Center 2012
Operations Manager installed.
You need to configure Operations Manager to monitor the VMM infrastructure.
Which three management packs should you install on Server2? (Each correct answer presents part of the solution.
Choose three.)

• A.the File Services Management Pack
• B.the Internet Information Services 7 Monitoring Management Pack
• C.the Microsoft SQL Server Monitoring Management Pack
• D.the Windows Server Operating System Management Pack
• E.the Monitoring Pack for Active Directory (AD)
• F.the Windows Server Hyper-V Management Pack
• G.Windows Server DNS 2003/2008/2008 R2 Monitoring Management Pack

You need to recommend a solution to meet the high-availability requirements for VMM 2012.
What should you include in the recommendation?

• A.Install Network Load Balancing (NLB) on Servers.
• B.Install Failover Clustering and Network Load Balancing (NLB) on Server1.
• C.Split the VMM roles between separate servers.
• D.Store all of the VMM templates in a Distributed File System (DFS) namespace.

You have a System Center 2012 Virtual Machine Manager (VMM) infrastructure that contains a virtualization host
named Server2. Server2 runs Windows Server 2008 R2 Service Pack 1 (SP1). Server2 has the Hyper-V server role
installed. You plan to deploy a service named Service1 to Server2. Service1 has multiple load-balanced tiers.
You need to recommend a technology that must be implemented on Server2 before you deploy Service1.
What should you recommend?

• A.TCP offloading
• B.the Multipath I/O (MPIO) feature
• C.the Network Policy and Access Services (NPAS) server role
• D.MAC address spoofing
