Online Access Free 156-315 Practice Test

Greg is creating rules and objects to control VoIP traffic in his organization, through a VPN-
1 NGX Security Gateway. Greg creates VoIP Domain SIP objects to represent each of his organization's three SIP gateways. Greg then creates a simple group to contain the VoIP Domain SIP objects. When Greg attempts to add the VoIP Domain SIP objects to the group, they are not listed. What is the problem?

• A.The VoIP gateway object must be added to the group, before the VoIP Domain SIP object is eligible to be added to the group.
• B.VoIP Domain SIP objects cannot be placed in simple groups.
• C.The VoIP Domain SIP object's name contains restricted characters.
• D.The installed VoIP gateways specify host objects.
• E.The related end-points domain specifies an address range.

In a distributed VPN-1 Pro NGX environment, where is the Internal Certificate Authority (ICA) installed?

• A.On the primary SmartCenter Server
• B.On the Smart View Monitor
• C.On the Policy Server
• D.Certificate Manager Server
• E.On the Security Gateway

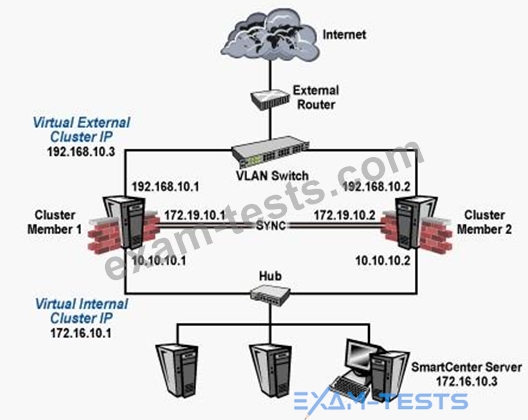

You are preparing a lab for a ClusterXL environment, with the following topology:
Vip internal cluster IP = 172.16.10.1; Vip external cluster IP = 192.168.10.3 Cluster Member 1: four NICs, three enabled: qfe0: 192.168.10.1/24, qfe1: 10.10.10.1/24, qfe2: 172.16.10.1/24 Cluster Member 2: five NICs, three enabled; hme0: 192.168.10.2/24, eth1: 10.10.10.2/24, eth2: 172.16.10.2/24 Member Network tab on internal-cluster interface: is 10.10.10.0, 255.255.255.0 SmartCenter Pro Server: 172.16.10.3 External interfaces 192.168.10.1 and 192.168.10.2 connect to a Virtual Local Area Network (VLAN) switch. The upstream router connects to the same VLAN switch. Internal interfaces
10.10.10.1 and 10.10.10.2 connect to a hub. There is no other machine in the 10.10.10.0 network. 172.19.10.0 is the synchronization network. What is the problem with this configuration?

• A.The internal network does not have a third cluster member.
• B.There is no problem with this configuration. It is correct.
• C.Cluster members cannot use the VLAN switch. They must use hubs.
• D.The SmartCenter Pro Server cannot be in the synchronization network.
• E.Members do not have the same number of NICs.

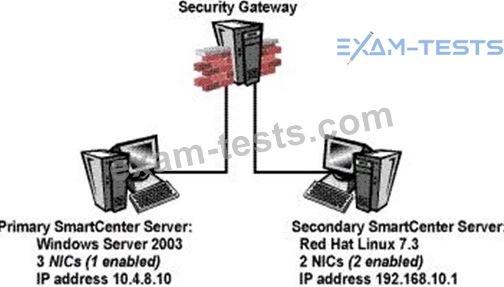

The following configuration is for VPN-1 NGX:Is this configuration correct for Management High Availability (HA)?

• A.No, the SmartCenter Servers must be installed on the same operating system.
• B.No, a VPN-1 NGX SmartCenter Server cannot run on Red Hat Linux 7.3.
• C.No, the SmartCenter Servers do not have the same number of NICs.
• D.No, the SmartCenter Servers must reside on the same network.
• E.No, A VPN-1 NGX SmartCenter Server can only be in a Management HA configuration, if the operating system is Solaris.

VPN-1 NGX supports VoIP traffic in all of the following environments, EXCEPT which environment?

• A.H.323
• B.SIP
• C.MGCP
• D.MEGACO
• E.SCCP
