Scenario: A Citrix Architect has deployed two MPX devices, 12.0.53.13 nc and MPX 11500 models, in high availability (HA) pair for the Workspace labs team. The deployment method is two-arm and the devices are installed behind a CISCO ASA 5585 Firewall. The architect enabled the following features on the NetScaler devices. Content Switching, SSL Offloading, Load Balancing, NetScaler Gateway, Application Firewall in hybrid security and Appflow. All are enabled to send monitoring information to NMAS 12.0.53.13 nc build.
The architect is preparing to configure load balancing for Microsoft Exchange 2016 server.
The following requirements were discussed during the implementation:
* All traffic needs to be segregated based on applications, and the fewest number of IP addresses should be utilized during the configuration
* All traffic should be secured and any traffic coming into HTTP should be redirected to HTTPS.
* Single Sign-on should be created for Microsoft Outlook web access (OWA).
* NetScaler should recognize Uniform Resource Identifier (URl) and close the session to NetScaler when users hit the Logoff button in Microsoft Outlook web access.
* Users should be able to authenticate using either user principal name (UPN) or sAMAccountName.
* The Layer 7 monitor should be configured to monitor the Microsoft Outlook web access servers and the monitor probes must be sent on SSL Which monitor will meet these requirements?

Which three steps should a Citrix Architect complete to configure session settings for different user accounts or groups? (Choose three.)

Scenario: A Citrix Architect has configured NetScaler Gateway integration with a XenApp environment to provide access to users from two domains: vendorlab.com and workslab.com. The Authentication method used is LDAP.
Which two steps are required to achieve Single Sign-on StoreFront using a single store? (Choose two.)

Scenario: A Citrix Architect has implemented two high availability pairs of MPX 5500 and MPX 11500 devices respectively with 12.0.53.13 nc version. The NetScaler devices are set up to handle NetScaler Gateway, Load Balancing, Application Firewall, and Content Switching. The Workspacelab infrastructure is set up to be monitored with NMAS version 12.0.53.13 nc by the Workspacelab administrators. The Workspacelab team wants to implement one more pair of NetScaler MPX 7500 devices with version
12.0.53.13 nc.
The Citrix consulting team has assigned the task to implement these NetScaler devices in the infrastructure and set them up to be monitored and managed by NMAS.
The following are the requirements that were discussed during the project initiation call:
* NMAS should be configured to get the infrastructure information under sections such as HDX Insight, WEB Insight, and Security Insight.
* Configuration on the new MPX devices should be identical to MPX 11500 devices.
* Configuration changes after the deployment and initial setup should be optimized using NMAS.
* NMAS should be utilized to configure templates that can be utilized by the Workspacelab team in future deployment.
* As per the requirement from the Workspacelab team, NMAS should be store the audited data for only
15 days.
Which process should the architect utilize to ensure that the deployment of MPX 11500 devices are optimized and that it is correct, before deploying the devices in production?

Scenario: A Citrix Architect needs to assess an existing NetScaler multi-site deployment. The deployment is using Global Server Load Balancing (GSLB) configured in a parent-child configuration.

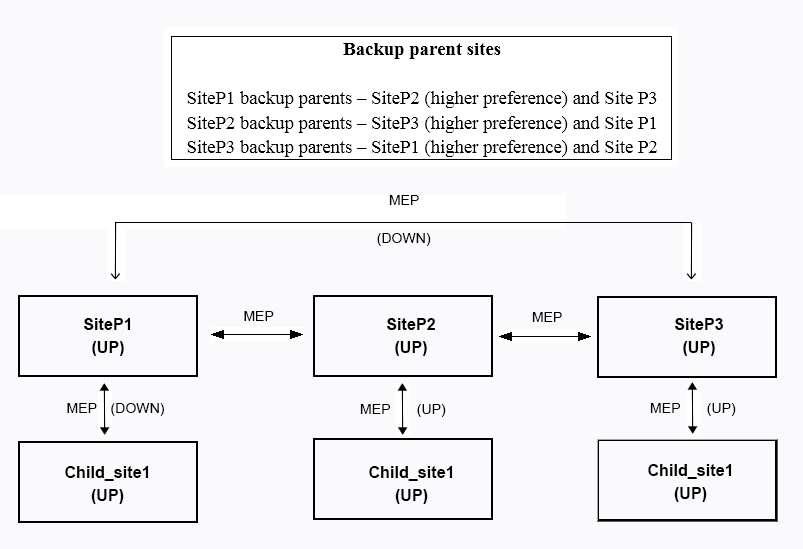

Click the Exhibit button to view the diagram of the current GSLB configuration and parent-child relationships, as well as the status of the sites and the connectivity between them.

Based on the displayed configuration and status, Chil_site1_______ a connection from _______. (Choose the correct option to complete the sentence.)
