Explanation
Deleting an Image
When you no longer need an old image or you simply want to clean up the list of image tags in a repository, you can delete images from Oracle Cloud Infrastructure Registry.
Your permissions control the images in Oracle Cloud Infrastructure Registry that you can delete. You can delete images from repositories you've created, and from repositories that the groups to which you belong have been granted accessby identity policies. If you belong to the Administrators group, you can delete images from any repository in the tenancy.
Note that as well deleting individual images , you can set up image retention policies to delete images automatically based on selection criteria you specify (see Retaining and Deleting Images Using Retention Policies).
Note:
In each region in a tenancy, there's a global image retention policy. The global image retention policy's default selection criteria retain all images so that no images are automaticallydeleted. However, you can change the global image retention policy so that images are deleted if they meet the criteria you specify. A region's global image retention policy applies to all repositories in the region, unless it is explicitly overridden byone or more custom image retention policies.
You can set up custom image retention policies to override the global image retention policy with different criteria for specific repositories in a region. Having created a custom image retention policy, you apply the custom retention policy to a repository by adding the repository to the policy. The global image retention policy no longer applies to repositories that you add to a custom retention policy.
https://docs.cloud.oracle.com/en-us/iaas/Content/Registry/Tasks/registrymanagingimageretention.htm#:~:text=In

Explanation
After a new version of Kubernetes has been released and when Container Engine for Kubernetes supports the new version, you can use Container Engine for Kubernetes to upgrade master nodes running older versions of Kubernetes. Because Container Engine for Kubernetes distributes the KubernetesControl Plane on multiple Oracle-managed master nodes (distributed across different availability domains in a region where supported) to ensure high availability, you're able to upgrade the Kubernetes version running on master nodes with zero downtime.
Having upgraded master nodes to a new version of Kubernetes, you can subsequently create new node pools running the newer version. Alternatively, you can continue to create new node pools that will run older versions of Kubernetes (providing those older versions are compatible with the Kubernetes version running on the master nodes).
Note that you upgrade master nodes by performing an 'in-place' upgrade, but you upgrade worker nodes by performing an 'out-of-place' upgrade. To upgrade the version of Kubernetesrunning on worker nodes in a node pool, you replace the original node pool with a new node pool that has new worker nodes running the appropriate Kubernetes version. Having 'drained' existing worker nodes in the original node pool to prevent new pods starting and to delete existing pods, you can then delete the original node pool.
Upgrading the Kubernetes Version on Worker Nodes in a Cluster:
After a new version of Kubernetes has been released and when Container Engine for Kubernetes supports the new version, you can use Container Engine for Kubernetes to upgrade master nodes running older versions of Kubernetes. Because Container Engine for Kubernetes distributes the Kubernetes Control Plane on multiple Oracle-managed master nodes (distributed across different availability domains in a region where supported) to ensure high availability, you're able to upgrade the Kubernetes version running on master nodes with zero downtime.
You can upgrade the version of Kubernetes running on the worker nodes in a clusterin two ways:
(A) Perform an 'in-place' upgrade of a node pool in the cluster, by specifying a more recent Kubernetes version for new worker nodes starting in the existing node pool. First, you modify the existing node pool's properties to specify the morerecent Kubernetes version. Then, you 'drain' existing worker nodes in the node pool to prevent new pods starting, and to delete existing pods. Finally, you terminate each of the worker nodes in turn.
When new worker nodes are started in the existing node pool, they run the more recent Kubernetes version you specified. See Performing an In-Place Worker Node Upgrade by Updating anExisting Node Pool.
(B) Perform an 'out-of-place' upgrade of a node pool in the cluster, by replacing the original node pool with a new node pool. First, you create a new node pool with a more recent Kubernetes version. Then, you 'drain' existing worker nodes in the original node pool to prevent new pods starting, and to delete existing pods.
Finally, you delete the original node pool. When new worker nodes are started in the new node pool, they run the more recent Kubernetes version you specified. See Performing an Out-of-Place Worker Node Upgrade by Replacing an Existing Node Pool with a New Node Pool.
Note that in both cases:
The more recent Kubernetes version you specify for the worker nodes in the node pool must be compatible with the Kubernetes version running on the master nodes in the cluster. See Upgrading Clusters to Newer Kubernetes Versions).
You must drain existing worker nodes in the original node pool. If you don't drain the worker nodes, workloads running onthe cluster are subject to disruption.
References:
https://docs.cloud.oracle.com/en-us/iaas/Content/ContEng/Tasks/contengupgradingk8sworkernode.htm

Explanation
Pulling Images from Registry during Deployment
During the deployment of an application to a Kubernetes cluster, you'll typically want one or more images to be pulled from a Docker registry. In the application's manifest file you specify the images to pull, the registry to pull them from, and the credentials to use when pulling the images. The manifest file is commonly also referred to as a pod spec, or as a deployment.yaml file (although other filenames are allowed).
If you want the application to pull images that reside in Oracle Cloud Infrastructure Registry, you have to perform two steps:
- You have to use kubectl to create a Docker registry secret. The secret containsthe Oracle Cloud Infrastructure credentials to use when pulling the image. When creating secrets, Oracle strongly recommends you use the latest version of kubectl To create a Docker registry secret:
1- If you haven't already done so, follow the steps to set up the cluster's kubeconfig configuration file and (if necessary) set the KUBECONFIG environment variable to point to the file. Note that you must set up your own kubeconfig file. You cannot access a cluster using a kubeconfig file that a different userset up.
2- In a terminal window, enter:
$ kubectl create secret docker-registry <secret-name> --docker-server=<region-key>.ocir.io
--docker-username='<tenancy-namespace>/<oci-username>' --docker-password='<oci-auth-token>'
--docker-email='<email-address>'
where:
<secret-name> is a name of your choice, that you will use in the manifest file to refer to the secret . For example, ocirsecret
<region-key> is the key for the Oracle Cloud Infrastructure Registry region you're using. For example, iad.
See Availability by Region.
ocir.io is the Oracle Cloud Infrastructure Registry name.
<tenancy-namespace> is the auto-generated Object Storage namespace string of the tenancy containing the repository from which the application is to pull the image (as shown on the Tenancy Information page). For example, the namespace of the acme-dev tenancy might be ansh81vru1zp. Note that for some older tenancies, thenamespace string might be the same as the tenancy name in all lower-case letters (for example, acme-dev).
<oci-username> is the username to use when pulling the image. The username must have access to the tenancy specified by <tenancy-name>. For example, [email protected] . If your tenancy is federated with Oracle Identity Cloud Service, use the format oracleidentitycloudservice/<username>
<oci-auth-token> is the auth token of the user specified by <oci-username>. For example, k]j64r{1sJSSF-;)K8
<email-address> is an email address. An email address is required, but it doesn't matter what you specify. For example, [email protected]
- You have to specify the image to pull from Oracle Cloud Infrastructure Registry, including the repository location and the Dockerregistry secret to use, in the application's manifest file.
References:
https://docs.cloud.oracle.com/en-us/iaas/Content/Registry/Tasks/registrypullingimagesfromocir.htm

Explanation
Web Application Firewall (WAF):
Oracle Cloud Infrastructure Web Application Firewall (WAF) is a cloud-based, Payment Card Industry (PCI) compliant, global security service that protects applications from malicious and unwanted internet traffic.
WAF can protect any internet facing endpoint,providing consistent rule enforcement across a customer's applications.
WAF provides you with the ability to create and manage rules for internet threats including Cross-Site Scripting (XSS), SQL Injection and other OWASP-defined vulnerabilities. Unwantedbots can be mitigated while tactically allowed desirable bots to enter. Access rules can limit based on geography or the signature of the request.
The global Security Operations Center (SOC) will continually monitor the internet threat landscape acting asan extension of your IT infrastructure.
References:
https://docs.cloud.oracle.com/en-us/iaas/Content/WAF/Concepts/overview.htm

Explanation
Blue-green deployment is a technique that reduces downtime and risk by running two identical production environments called Blue and Green. At any time, only one of the environments is live, with the live environment serving all production traffic. For this example, Blue is currently live and Green is idle.
https://docs.cloudfoundry.org/devguide/deploy-apps/blue-green.html

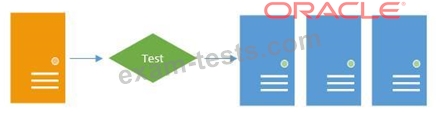

Canary deployments are a pattern for rolling out releases to a subset of users or servers. The idea is to first deploy the change to a small subset of servers, test it, and then roll the change out to the rest of the servers. ...
Canaries were once regularly used in coal mining as an early warning system.
https://octopus.com/docs/deployment-patterns/canary-deployments
