Question 141

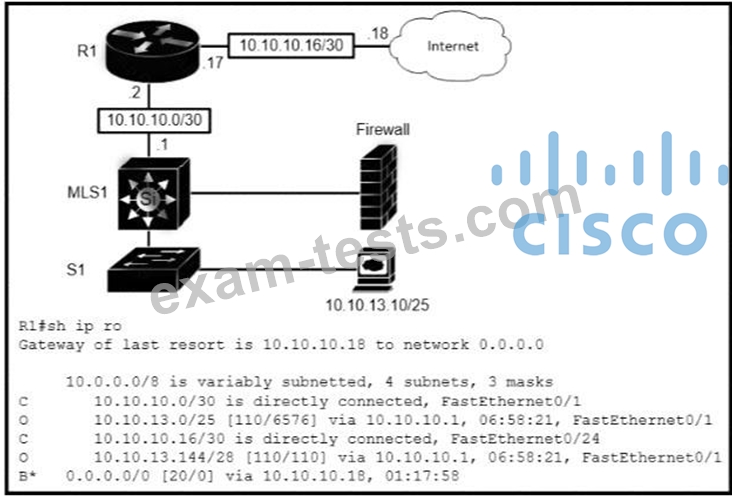

Refer to the exhibit.

Which type of route does R1 use to reach host 10.10.13.10/32?

A.floating static route

B.host route

C.default route

D.network route

Question 142

You are verifying the EIGRP configurations in the topology
statement is true?

A.Branch1 LAN network 172.16.12.0/24 is not advertised into the EIGRP network

B.Branch2 LAN network 172.16.10.0/24 is not advertised into the EIGRP network

C.Branch2 LAN network 172.16.11.0/24 is not advertised into the EIGRP network

D.R3 server farm2 network 10 20 30.0/24 is not advertised into the EIGRP network

Question 143

Refer to the exhibit.

Which switch becomes the root bridge?

A.S4

B.S1

C.S2

D.S3

Question 144

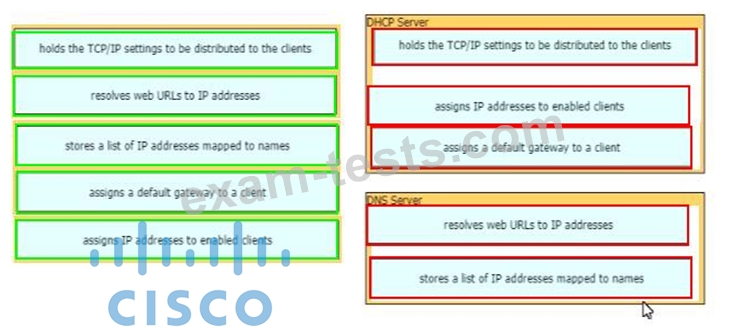

Drag and drop the functions from the left onto the correct network components on the right

Question 145

Two switches are connected and using Cisco Dynamic Trunking Protocol. SW1 is set to Dynamic Auto and SW2 is set to Dynamic Desirable.
What is the result of this configuration?

A.The link becomes an access port.

B.The link is in an error disabled state.

C.The link is in a down state.

D.The link becomes a trunk port.
