Free Access Cisco.200-301.v2022-06-18.q420 Practice Test (Page 53)

Refer to the exhibit.

Which configuration on RTR-1 denies SSH access from PC-1 to any RTR-1 interface and allows all other traffic?

A.access-list 100 deny tcp host 172.16.1.33 any eq 23 access-list 100 permit ip any any
line vty 0 15 ip access-group 100 in

B.access-list 100 deny tcp host 172.16.1.33 any eq 23 access-list 100 permit ip any any
interface GigabitEthernet0/0 ip access-group 100 in

C.access-list 100 deny tcp host 172.16.1.33 any eq 22 access-list 100 permit ip any any
line vty 0 15 ip access-group 100 in

D.access-list 100 deny tcp host 172.16.1.33 any eq 22 access-list 100 permit ip any any
interface GigabitEthernet0/0 ip access-group 100 in

Refer to the exhibit. An engineer configured NAT translations and has verified that the configuration is correct.

Which IP address is the source IP?

A.10.4.4.5

B.10.4.4.4

C.172.23.103.10

D.172.23.104.4

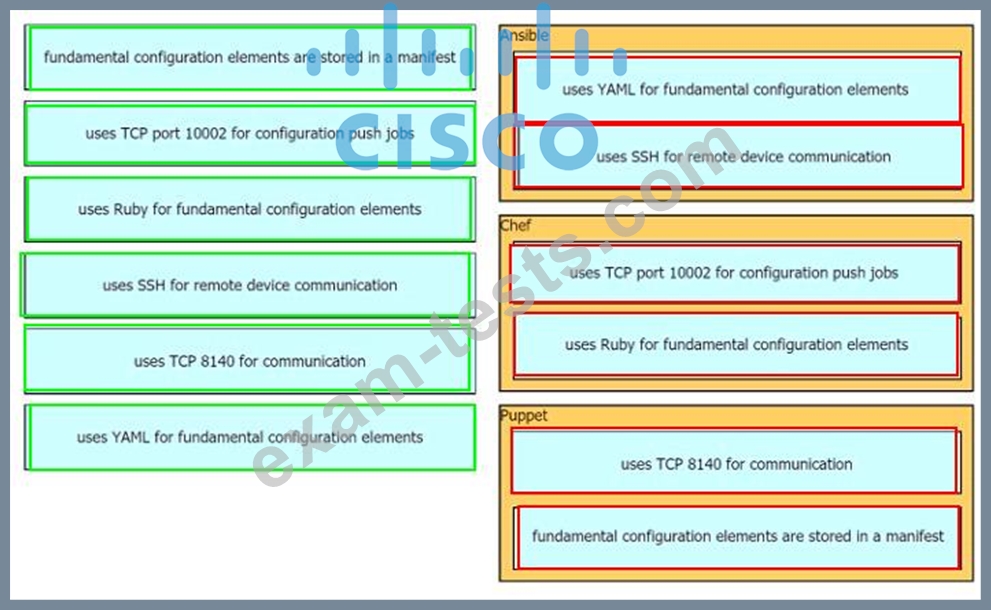

Drag drop the descriptions from the left onto the correct configuration-management technologies on the right.

Refer to the exhibit.

How does the router manage traffic to 192.168.12.16?

A.It selects the RIP route because it has the longest prefix inclusive of the destination address.

B.It chooses the OSPF route because it has the longest prefix inclusive of the destination address.

C.It chooses the EIGRP route because it has the lowest administrative distance

D.it load-balances traffic between all three routes

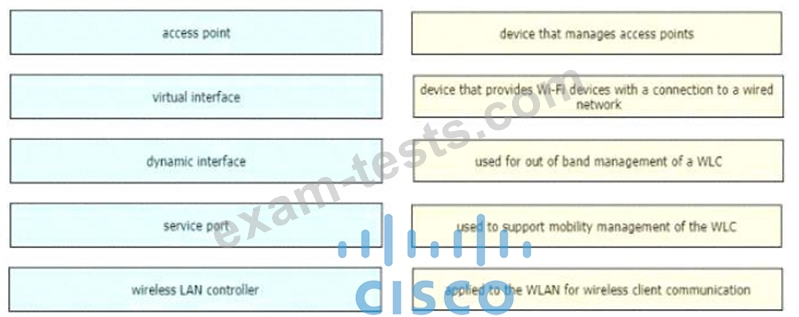

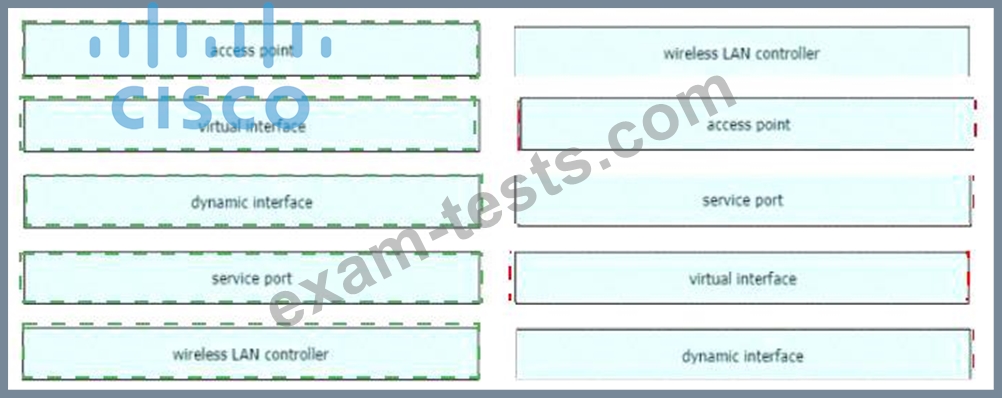

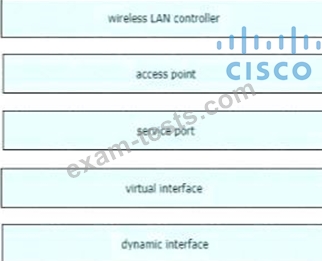

Drag and drop the WLAN components from the left onto the correct descriptions on the right.
