Free Access Cisco.200-301.v2022-11-15.q593 Practice Test (Page 2)

Question 1

What is a function of a remote access VPN?

A.used exclusively when a user is connected to a company's internal network

B.establishes a secure tunnel between two branch sites

C.allows the users to access company internal network resources through a secure tunnel

D.used cryptographic tunneling to protect the privacy of data for multiple users simultaneously

Question 2

What is the default behavior of a Layer 2 switch when a frame with an unknown destination MAC address is received?

A.The Layer 2 switch drops the received frame

B.The Layer 2 switch floods packets to all ports except the receiving port in the given VLAN.

C.The Layer 2 switch sends a copy of a packet to CPU for destination MAC address learning.

D.The Layer 2 switch forwards the packet and adds the destination MAC address to its MAC address table

Question 3

which statement about EIGRP on IPv6 device is true?

A.It is configured directly on the interface

B.The neighbors of each device are directly configured

C.The configuration uses process numbers

D.The configuration uses secondary IP address

Question 4

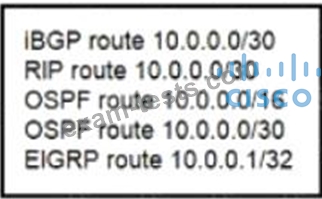

Refer to the exhibit.

A router reserved these five routes from different routing information sources.
Which two routes does the router install in its routing table? (Choose two)

A.RIP route 10.0.0.0/30

B.EIGRP route 10.0.0.1/32

C.OSPF route 10.0.0.0/30

D.OSPF route 10.0.0.0/16

E.iBGP route 10.0.0.0/30

Question 5

R1 has learned route 192.168.12.0/24 via IS-IS. OSPF, RIP. and Internal EIGRP Under normal operating conditions, which routing protocol is installed in the routing table?

A.RIP

B.IS-IS

C.OSPF

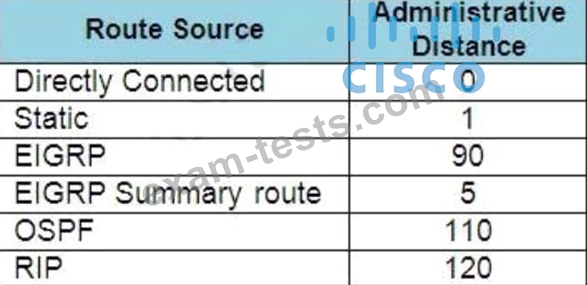

With the same route (prefix), the router will choose the routing protocol with lowest Administrative Distance (AD) to install into the routing table. The AD of Internal EIGRP (90) is lowest so it would be chosen. The table below lists the ADs of popular routing protocols.

Note: The AD of IS-IS is 115. The "EIGRP" in the table above is "Internal EIGRP". The AD of "External EIGRP" is 170. An EIGRP external route is a route that was redistributed into EIGRP.

D.Internal EIGRP
