Free Access Cisco.300-410.v2022-01-27.q256 Practice Test (Page 42)

Question 201

Refer to the exhibit.

An engineer is trying to configure local authentication on the console line, but the device is trying to authenticate using TACACS+. Which action produces the desired configuration?

A.Add the aaa authentication login default group tacacs+ local-case command to the global configuration.

B.Add the aaa authentication login default none command to the global configuration.

C.Add the login authentication Console command to the line configuration

D.Replace the capital "C" with a lowercase "c" in the aaa authentication login Console local command.

Question 202

Refer to the exhibit.

A router receiving BGP routing updates from multiple neighbors for routers in AS 690.
What is the reason that the router still sends traffic that is destined to AS 690 to a neighbor other than 10.222.10.1?

A.The weight value in another statement is higher than 200.

B.The local preference value in another neighbor statement is higher than 250.

C.The route map is applied in the wrong direction.

D.The local preference value should be set to the same value as the weight in the route map.

Question 203

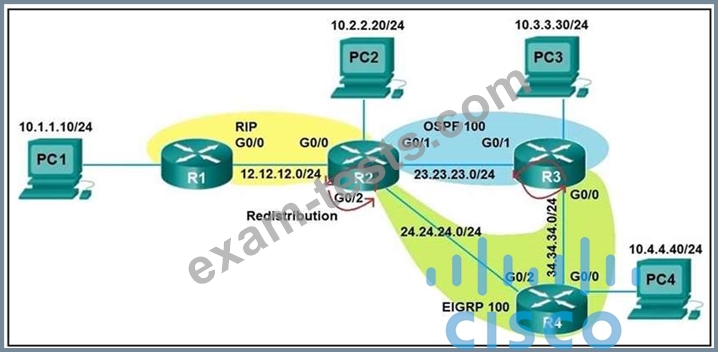

Refer to the exhibit. After redistribution is enabled between the routing protocols; PC2, PC3, and PC4 cannot reach PC1.
Which action can the engineer take to solve the issue so that all the PCs are reachable?

A.Set the administrative distance 100 under the RIP process on R2.

B.Filter the prefix 10.1.1.0/24 when redistributed from OSPF to EIGRP.

C.Filter the prefix 10.1.1.0/24 when redistributed from RIP to EIGRP.

D.Redistribute the directly connected interfaces on R2.

Question 204

Refer to the exhibit. An engineer must establish multipoint GRE tunnels between hub router R6 and branch routers R1, R2, and R3. Which configuration accomplishes this task on R1?
A)

A.Option C

B.Option B

C.Option D

D.Option A

Question 205

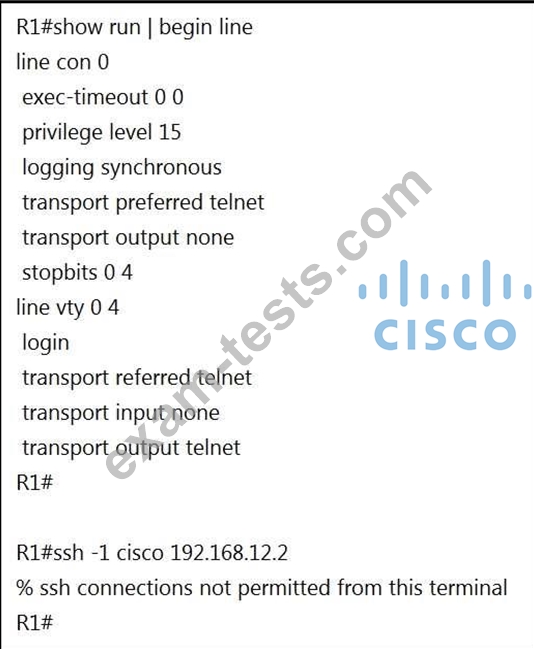

Refer to the exhibit. An engineer receives this error message when trying to access another router in-band from the serial interface connected to the console of R1.
Which configuration is needed on R1 to resolve this issue?

A.R1(config)#line vty 0
R1(config-line)# transport output ssh

B.R1(config)#line console 0
R1(config-line)# transport output ssh

C.R1(config)#line console 0
R1(config-line)# transport preferred ssh

D.R1(config)#line vty 0
R1(config-line)# transport output ssh
R1(config-line)# transport preferred ssh
