Free Access Cisco.300-410.v2022-11-26.q118 Practice Test (Page 23)

Question 106

Refer to the exhibit.

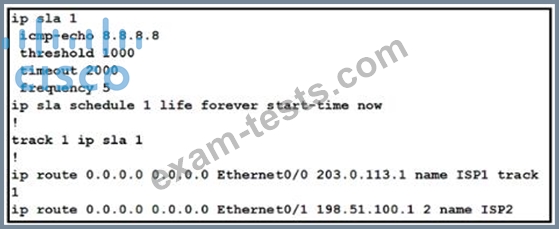

Refer to the exhibit. After recovering from a power failure. Ethernet0/1 stayed down while Ethernet0/0 returned to the up/up state The default route through ISP1 was not reinstated m the routing table until Ethernet0/1 also came up Which action resolves the issue?

A.Reference the track object 1 in both static default routes

B.Remove the references to the interface names from both static default routes

C.Add a static route to the 8 8.8 8/32 destination through the next hop 203.0.113.1

D.Configure the default route through ISP1 with a higher administrative distance than 2.

Question 107

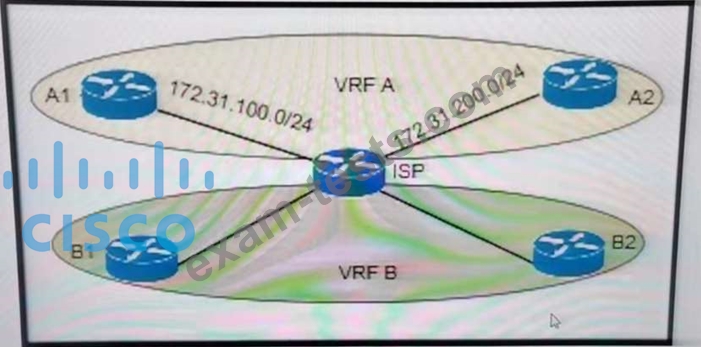

Refer to the exhibit. The ISP router is fully configured for customer A and customer B using the VRF-Lite feature. What is the minimum configuration required for customer A to communicate between routers A1 and A2?

A.A1:
interface fa0/0
description To->ISP
ip add 172.31.200.1 255.255.255.0
no shut
!
router ospf 100
net 172.31.200.1 0.0.0.255 area 0
A2:
interface fa0/0
description To->ISP
ip add 172.31.100.1 255.255.255.0
no shut
!
router ospf 100
net 172.31.100.1 0.0.0.255 area 0

B.A1:
interface fa0/0
description To->ISP
ip vrf forwarding A
ip add 172.31.100.1 255.255.255.0
no shut
!
router ospf 100 vrf A
net 172.31.100.1 0.0.0.255 area 0
A2:
interface fa0/0
description To->ISP
ip vrf forwarding A
ip add 172.31.200.1 255.255.255.0
no shut
!
router ospf 100 vrf A
net 172.31.200.1 0.0.0.255 area 0

C.A1:
interface fa0/0
description To->ISP
ip add 172.31.100.1 255.255.255.0
no shut
!
router ospf 100
net 172.31.100.1 0.0.0.255 area 0
A2:
interface fa0/0
description To->ISP
ip add 172.31.200.1 255.255.255.0
no shut
!
router ospf 100
net 172.31.200.1 0.0.0.255 area 0

D.A1:
interface fa0/0
description To->ISP
ip vrf forwarding A
ip add 172.31.100.1 255.255.255.0
no shut
!
router ospf 100
net 172.31.100.1 0.0.0.255 area 0
A2:
interface fa0/0
description To->ISP
ip vrf forwarding A
ip add 172.31.200.1 255.255.255.0
no shut
!
router ospf 100
net 172.31.200.1 0.0.0.255 area 0

Question 108

Refer to the exhibit.

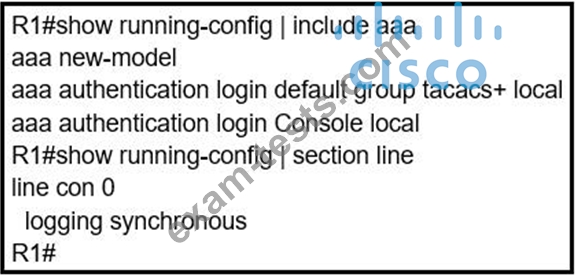

An engineer is trying to configure local authentication on the console line, but the device is trying to authenticate using TACACS+. Which action produces the desired configuration?

A.Add the aaa authentication login default none command to the global configuration.

B.Replace the capital "C" with a lowercase "c" in the aaa authentication login Console local command.

C.Add the aaa authentication login default group tacacs+ local-case command to the global configuration.

D.Add the login authentication Console command to the line configuration

Question 109

Refer to the exhibit.

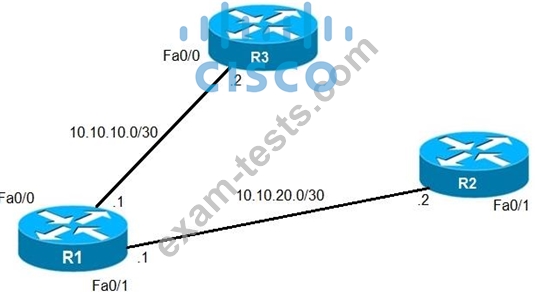

An IP SLA was configured on router R1 that allows the default route to be modified in the event that Fa0/0 loses reachability with the router R3 Fa0/0 interface. The route has changed to flow through router R2. Which debug command is used to troubleshoot this issue?

A.debug ip flow

B.debug ip sla error

C.debug ip routing

D.debug ip packet
