Free Access Cisco.300-410.v2023-01-28.q148 Practice Test (Page 19)

Question 86

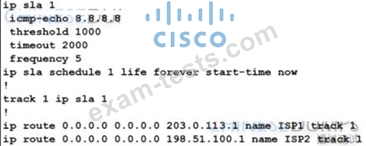

Refer to the exhibit.

An administrator configures a router to stop using a particular default route if the DNS server 8.8.8.8 is not reachable through that route. However, this configuration did not work as desired and the default route still works even if the DNS server 8.8.8 8 is unreachable. Which two configuration changes resolve the issue? (Choose two.)

A.Use a separate track object to reference the existing IP SLA 1 probe for every static route.

B.Reference the proper exit interfaces along with the next hops in both static default routes.

C.Associate every IP SLA probe with the proper WAN address of the router.

D.Use a separate IP SLA probe and track object for every static route

E.Configure two static routes for the 8.8.8.8/32 destination to match the IP SLA probe for each ISP.

Question 87

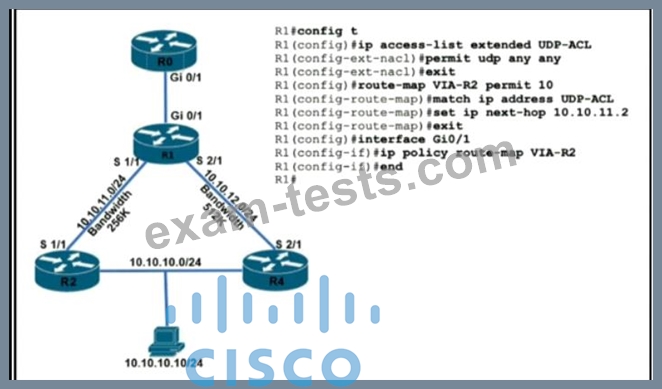

Refer to the exhibit.

TCP traffic should be reaching host 10.10.10.10/24 via R2. Which action resolves the issue?

A.Allow TCP in the access list with no changes to the route map

B.TCP traffic will reach the destination via R2 without any changes

C.Set IP next-hop to 10.10.12.2 under the route-map permit 10 to allow TCP traffic.

D.Add a permit 20 statement in the route map to allow TCP traffic

Question 88

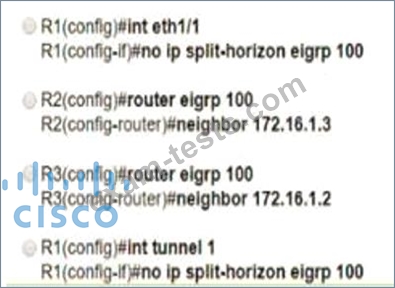

Refer to the exhibit.

An engineer sets up a DMVPN connection to connect branch 1 and branch 2 to HQ branch 1 and branch 2 cannot communicate with each other. Which change must be made to resolve this issue?

A.Option A

B.Option B

C.Option C

D.Option D

Question 89

The network administrator must implement IPv6 in the network to allow only devices that not only have registered IP addresses but are also connecting from assigned locations. Which security feature must be implemented?

A.IPv6 Destination Guard

B.IPv6 Snooping

C.IPv6 Router Advertisement Guard

D.IPv6 Prefix Guard

Question 90

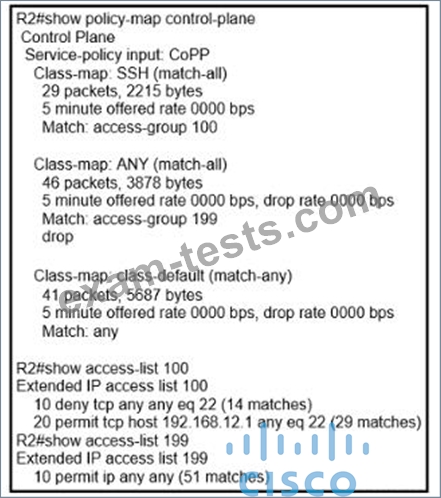

Refer to the exhibit.

Refer to the exhibit. Which action limits the access to R2 from 192.168.12.1?

A.Modify sequence 10 to deny tcp any eq 22 any to access-list 100.

B.Swap sequence 10 with sequence 20 in access-list 100.

C.Swap sequence 20 with sequence 10 in access-list 100

D.Modify sequence 20 to permit tcp host 192.168.12.1 eq 22 any to access-list 100
