Question 121

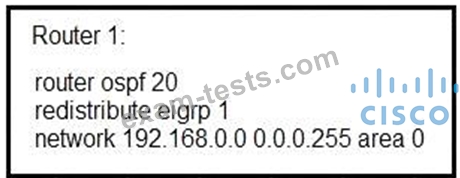

Refer to the exhibit.

An engineer is troubleshooting an OSPF issue. Router 1 has a neighbor relationship with router 2. Only router 1 classful EIGRP routes can be seen on router 2. In order for all EIGRP routes to be redistributed correctly, which action should be taken?

A.Router 1 must have the keyword included in the redistribution command for all EIGRP routes to be redistributed.

B.Router 1 must remove the AS number 1 from the redistribution command for all EIGRP routes to be redistributed.

C.Router 1 must have the keyword subnets included in the redistribution command for all EIGRP routes to be redistributed.

D.Router 1 must have the keyword 1 included in the redistribution command for all EIGRP routes to be redistributed.

Question 122

Refer to the exhibit. Which tree does multicast traffic follow?

A.shared tree

B.MDT voice

C.source tree

D.MDT default

Question 123

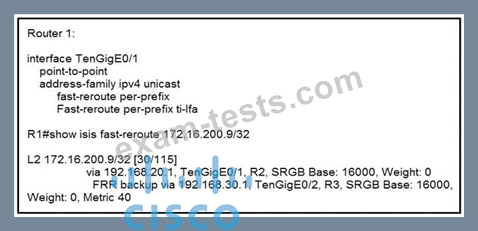

Refer to the exhibit.

Router 1 is connected to router 2 on interface TenGigE0/1. Which interface provides the alternate path to 172.16.200.9/32 when the link between router 1 and router 2 goes down?

A.TenGigE0/2 interface provides the alternate path

B.TenGigE0/1 interface provides the alternate path

C.A primary path must be manually installed

D.A backup path must be statically installed

Question 124

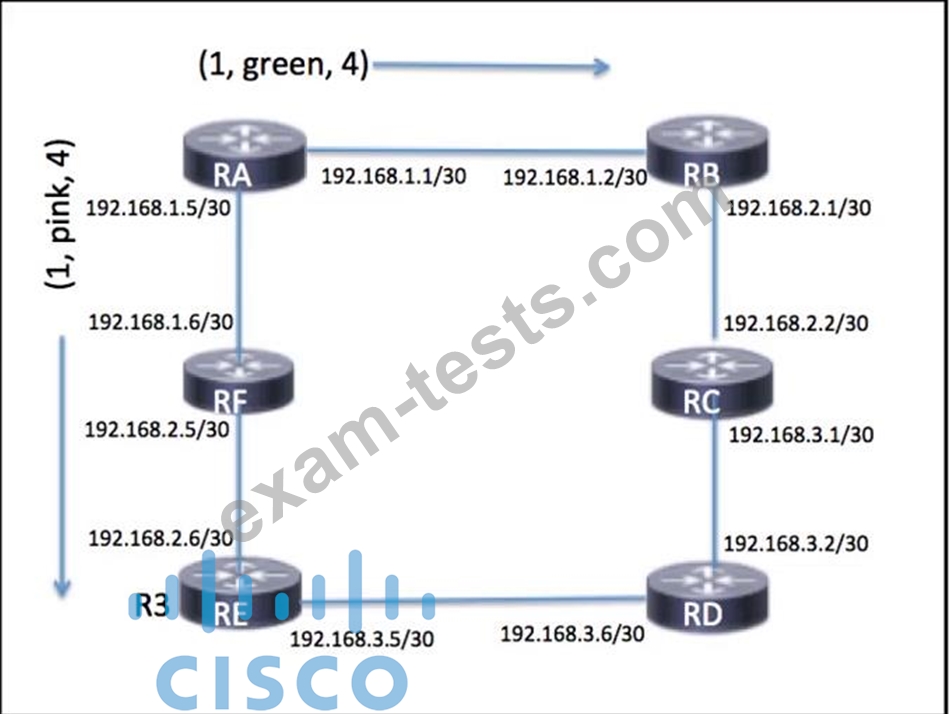

Refer to the exhibit.

The green policy is designed with low delay, and the pink policy is designed with low cost. What is the next hop for node A on its way to node D, with the objective of achieving a low delay?

A.192.168.3.6

B.192.168.1.6

C.192. 168.1.2

D.192.168.3.2

Question 125

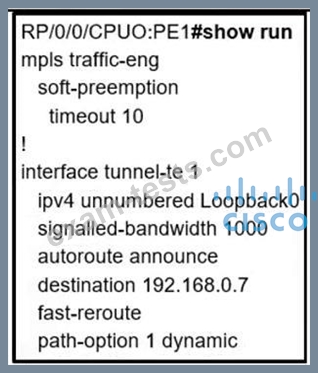

Refer to the exhibit.

A network operator is troubleshooting TE tunnels and discovers that the soft preemption is not working as desired. Where should the soft preemption be applied to solve the issue?

A.explicitly for tunnel-te 1 under the Cisco MPLS TE configuration mode after the timeout setting

B.under the tunnel-te1 interface on PE1

C.Under the interface Loopback0 necessary for this deployment type.

D.on the tail-end device for tunnel-te1 192.168.0.7
