Question 1

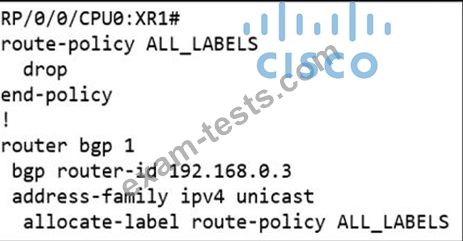

Refer to the exhibit.

A network operator is working to deploy a Unified BGP design and allow it to be available only in selected markets and services in the future. The label allocation is not functioning as desired. Which action will fix the issue?

A.Reconfigure the route-policy ALL_LABELS to match all after the drop.

B.Remove the route policy and only configure "allocate-label".

C.Remove the allocate-labels command.

D.Reconfigure the route-policy ALL_LABELS to pass.

Question 2

Refer to the exhibit. Router 1 has attempted to establish a Cisco MPLS TE tunnel to router 2, but the tunnel has failed.
Which statement about this configuration is true?

A.Router 1 and router 2 must define the RSVP bandwidth reserved on the physical interfaces

B.Router 1 must have Cisco MPLS TE enabled on interface gigabitethernet0/1

C.Router 2 must have a tunnel interface created with router 1 as the destination

D.Router 1 must define an explicit path to router 2

Question 3

Refer to the exhibit.

After troubleshooting BGP traffic steering issue, which action did the network operator take to achieve the correct effect of this configuration?

A.Routes directly attached to AS 65517 have the local preference set to 150.

B.Routes that have passed through AS 65517 have the local preference set to 150 and the traffic is denied.

C.Routes that have originated through AS 65517 have the local preference set to 150.

D.Routes that have passed through AS 65517 have the local preference set to 150.

Question 4

Refer to the exhibit.

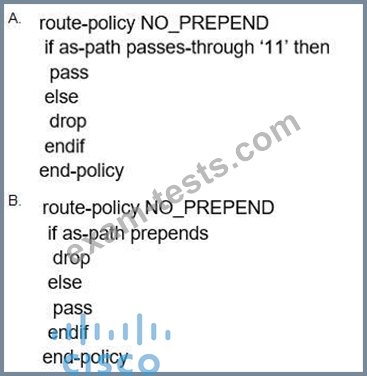

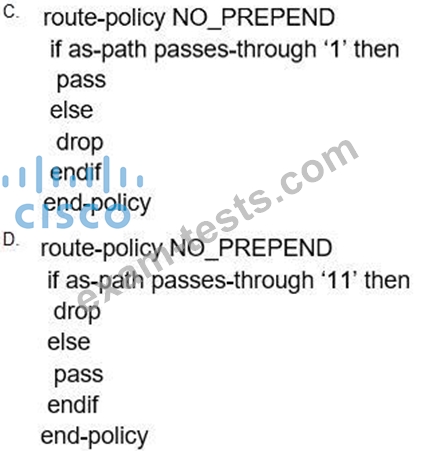

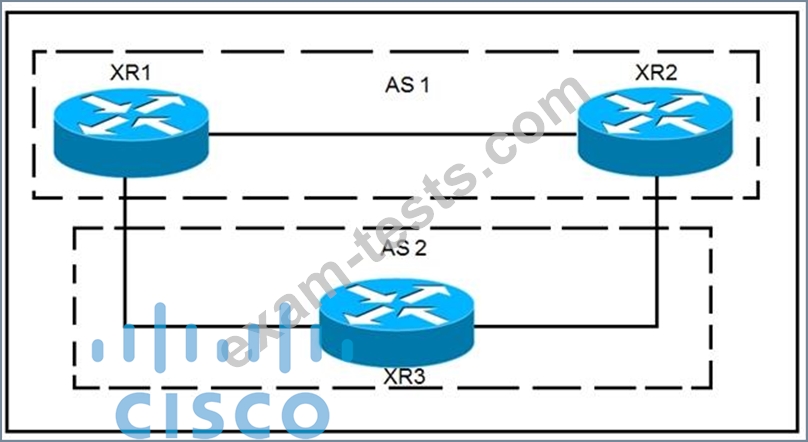

XR1 and XR2 are sending the prefix 10.11.11.0/24 to XR3. A configured policy on XR1 is incorrectly prepending AS path 11 11 12 12 onto this prefix. A network operator wants to add a policy onto XR3 that will not allow the falsely prepending prefix from being installed. Which policy configuration applied to the XR3 neighbor configuration for XR1 can accomplish this requirement without impact to other or future received routes?

A.Option B

B.Option C

C.Option D

D.Option A

Question 5

Which output from the show isis interface command helps an engineer troubleshoot an IS-IS adjacency problem on a Cisco IOS-XR platform?

A.circuit type

B.hello interval

C.metric

D.priority
