Question 36

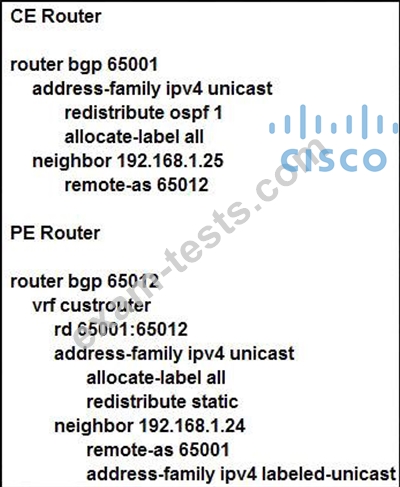

Refer to the exhibit.

The CE router has established a BGP peering with the PE router, and the CE will use the core infrastructure of the PE as a backbone carrier to support CSC. Which additional task can you perform to complete the configuration?

A.Configure static routing on the CE router.

B.Configure OSPF on the PE router.

C.Configure the address-family ipv4 labeled-unicast command under the neighbor configuration of the CE router for the PE.

D.Change the rd value to 65001:65001 under the VRF section of the PE router.

Question 37

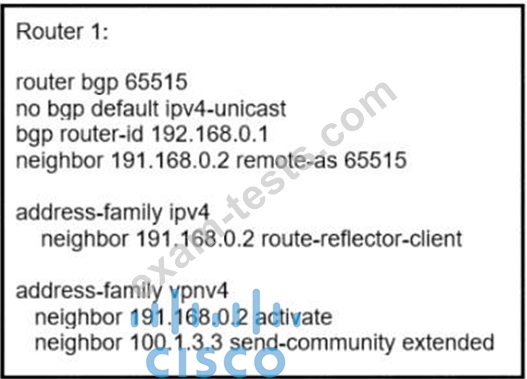

Refer to the exhibit.

Router 1 is a route reflector client within a service provider core PE1 cannot see VPNv4 routes received from the ASBR PE1 only has an iBGP relationship with Router 1. Which action resolves this issue?

A.Activate PE1 as a neighbor under the IPv4 address family.

B.Configure PE1 to have an eBGP relationship with Router 1.

C.Enable BGP default ipv4-unicast

D.Configure Router 1 as a route reflector for PE1 under the VPNv4 address family.

Question 38

An ISP provides a major client MPLS VPN for managed services. The MPLS engineering team needs to use the advanced VPN feature of selective VRF import so that only specific prefixes are present in the required VPNs.
Which aspect of this feature must the team consider?

A.A route must pass the import route map first and then the route target import filter.

B.The routers that are imported in the VRF can be BGP and IGP routes, so other match conditions in the route map, besides communities, can be used.

C.The import-map command is applied under the PE interface that connects to the CE router.

D.A route is imported into the VRF only when at least one RT that is attached to the route matches one RT that is configured in the VRF and the route is permitted by the import route map.

Question 39

An engineer is troubleshooting AToM on an IOS XE router and receives an error when creating the xconnect. Which command does he need to complete to create the xconnect in AToM?

A.protocol 12tpv3

B.encapsulation 12tpv3

C.protocol none

D.encapsulation mpls
