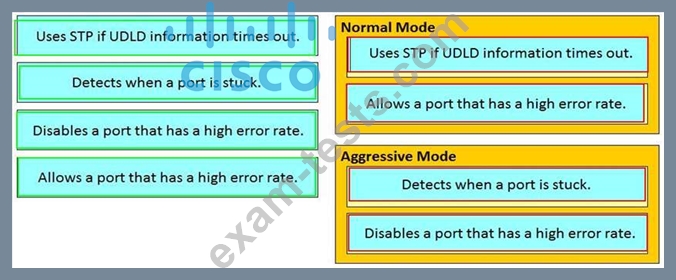

Drag the appropriate from the left onto the current UDLD modes of operation on the right.

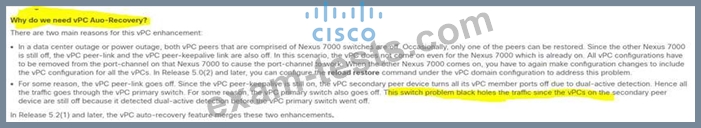

An engineer configured the OSPF protocol in the vPC topology. During the catastrophic failure of one of the vPC the member switches, the traffic was routed to a black hole. This route was caused by the long convergence time caused by the delay of the of the vPC member switch reboot. After the failure, the engineer rebooted both switches, but the secondary switch powered on before the primary one. It caused all the vPCs to be shut down due to consistency-check violations. Which two features must be used to prevent these situations from happening in the future? (Choose two.)

A network engineer designs a Cisco Nexus data center network for a client-server farm using a pair of Nexus 9000 Series. Switches In a vPC setup. Each server connects with two interfaces to both Nexus switches. The Nexus switches must always initiate the negotiation with the server. Which feature should be used in this design to ensure traffic is forwarded from the server to the data center network?

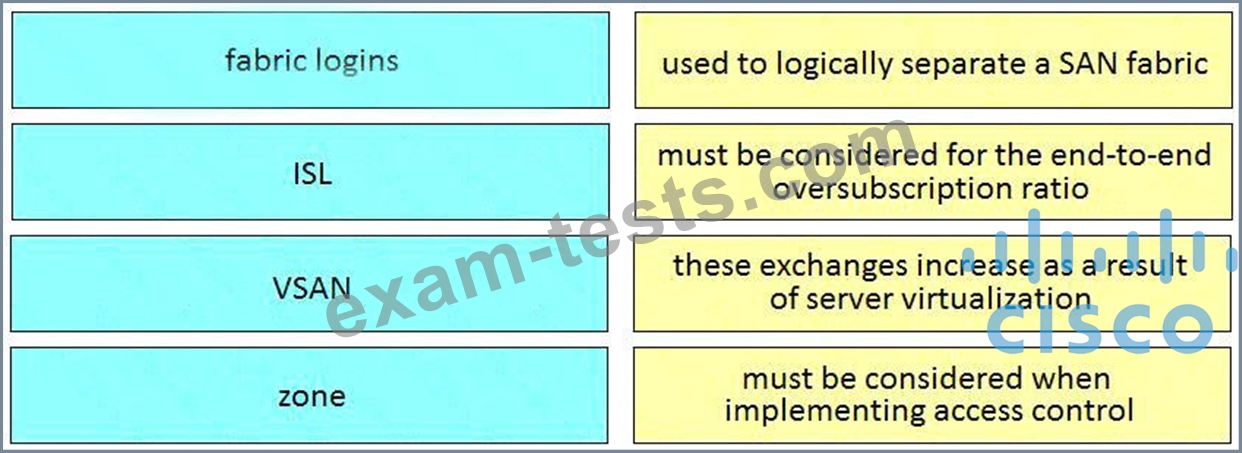

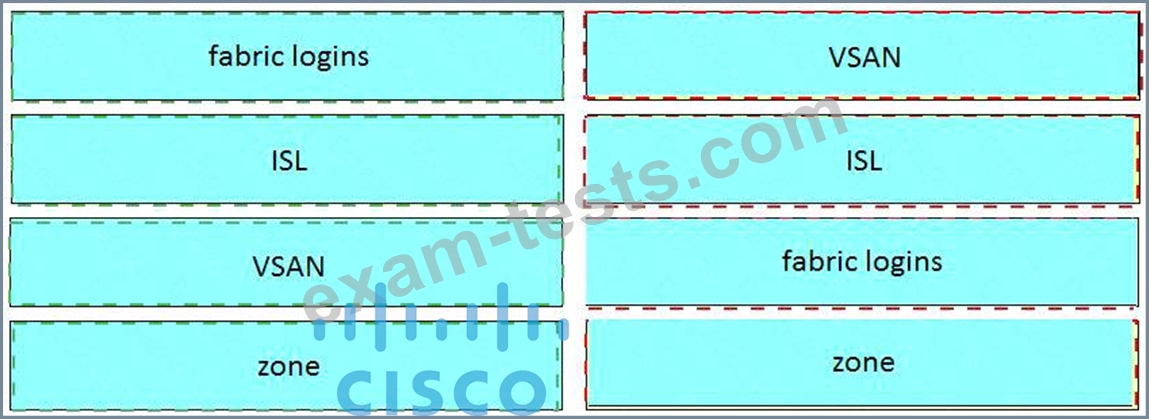

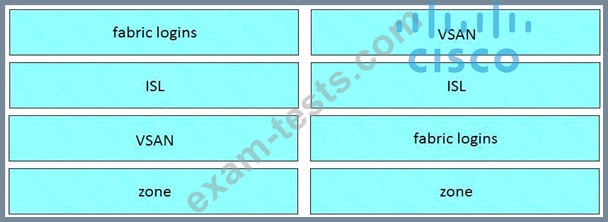

Drag and drop the SAN components from the left onto the correct design considerations on the right.

A customer needs to deploy a three-tier network architecture that will consist of web, and other business-critical applications. The solution will include Cisco UCS 6324 Fabric interconnects managing B and C Series servers The Fabric interconnects will be connected to the cisco nexus 7706 series switch for network access. A storage array will be directly connected to the UCS deployment. Which type must be used to meet these requirements?
