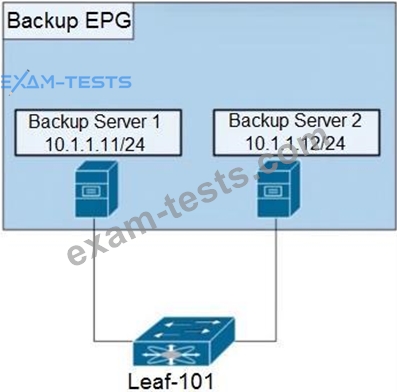

Refer to the exhibit. An engineer must disable the communication between the two backup servers in the backup EPG. Which action accomplishes this goal?

• A.Set Preferred Group Member to Excluded.
• B.Set a different static binding for the encap VLAN.
• C.Set the physical domain to None.
• D.Set Intra EPG Isolation to Enforced.

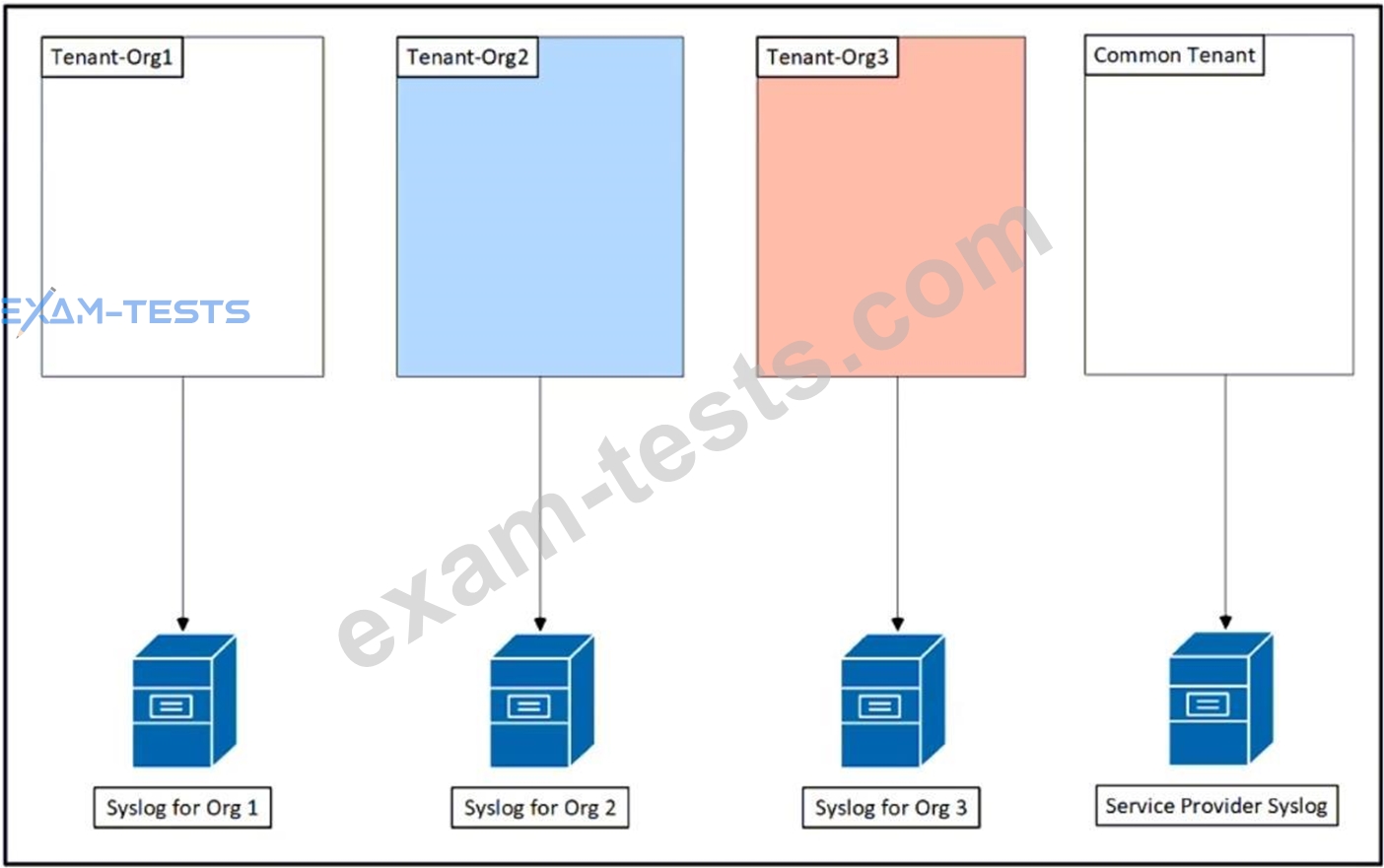

Refer to the exhibit. A service provider hosts applications for multiple organizations. Each organization owns a separate tenant and syslog server. The events from each tenant must be sent to the corresponding syslog server. Which action accomplishes this goal?

• A.Configure a single shared external syslog server and apply it to the common tenant.
• B.Configure an external syslog server for each tenant and apply all of them to the common tenant.
• C.Configure an external syslog server for each tenant and apply each of them to the related tenant.
• D.Configure a single shared external syslog server and apply it to all of the user tenants.

An engineer is extending EPG connectivity to an external network. The external network houses the Layer 3 gateway and other end hosts.
Which ACI bridge domain configuration should be used?

• A.Forwarding: Custom
  L2 Unknown Unicast: Hardware Proxy
  L3 Unknown Multicast Flooding: Flood
  Multi Destination Flooding: Flood in BD
  ARP Flooding: Disabled
• B.Forwarding: Custom
  L2 Unknown Unicast: Flood
  L3 Unknown Multicast Flooding: Flood
  Multi Destination Flooding: Flood in BD
  ARP Flooding: Disabled
• C.Forwarding: Custom
  L2 Unknown Unicast: Flood
  L3 Unknown Multicast Flooding: Flood
  Multi Destination Flooding: Flood in BD
  ARP Flooding: Enabled
• D.Forwarding: Custom
  L2 Unknown Unicast: Hardware Proxy
  L3 Unknown Multicast Flooding: Flood
  Multi Destination Flooding: Flood in BD
  ARP Flooding: Enabled

Which tenant is used when configuring in-band management IP addresses for Cisco APICs, leaf nodes, and spine nodes?

• A.common
• B.default
• C.infra
• D.mgmt

Refer to the exhibit. The external subnet and internal EPG1 must communicate with each other, and the L3Out traffic must leak into the VRF named "VF1". Which configuration set accomplishes these goals?

• A.Export Route Control Subnet
  Import Route Control Subnet
  Aggregate Shared Routes
• B.External Subnets for External EPG
  Shared Route Control Subnet
  Shared Security Import Subnet
• C.External Subnets for External EPG
  Import Route Control Subnet
  Shared Route Control Subnet
• D.Export Route Control Subnet
  Shared Security Import Subnet
  Aggregate Shared Routes
