Question 16

Which endpoint learning operation is completed on the ingress leaf switch when traffic is received from a Layer 3 Out?

A.The source MAC address of the traffic is learned as a remote endpoint.

B.The source IP address of the traffic is learned as a local endpoint.

C.The source MAC address of the traffic is learned as a local endpoint.

D.The source IP address of the traffic is learned as a remote endpoint.

Question 17

An engineer configured a bridge domain with the hardware-proxy option for Layer 2 unknown unicast traffic.
Which statement is true about this configuration?

A.The spine switch drops the Layer 2 unknown unicast packet if it is unable to find the MAC address in the proxy database.

B.The Layer 2 unknown hardware proxy lacks support of the topology change notification.

C.The leaf switch forwards the Layers 2 unknown unicast packets to all other leaf switches if it is unable to find the MAC address in its local forwarding tables.

D.The leaf switch drops the Layer 2 unknown unicast packet if it is unable to find the MAC address in the local forwarding tables.

Question 18

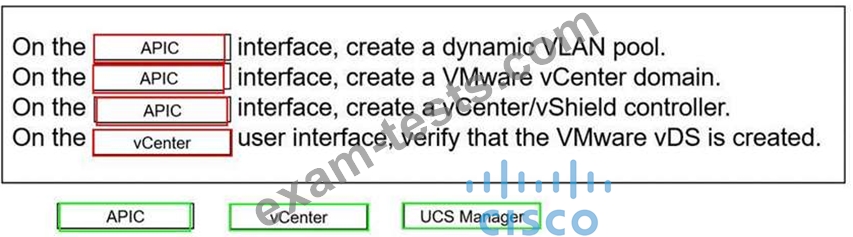

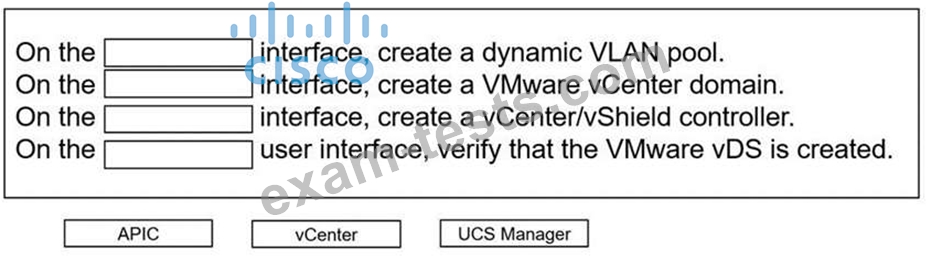

An engineer must configure VMM domain integration on a Cisco UCS B-Series server that is connected to a Cisco ACI fabric. Drag and drop the products used to create VMM domain from the bottom into the sequence in which they should be implemented at the top. Products are used more than once.

Question 19

An engineer created two interface protocol policies called Pol_CDP40275332 and Pol_LLDP46783451. The policies must be used together in a single policy. Which ACI object must be used?

A.switch profile

B.interface policy group

C.interface profile

D.switch policy group

Question 20

A bridge domain for an EPC called "Web Servers" must be created in the Cisco APIC. The configuration must meet these requirements:
Only traffic to known Mac addresses must be allowed to reduce noice.
The multicast traffic must be limited to the ports that are participating in multicast routing.
The endpoints within the bridge domain must be kept in the endpoint table for 20 minultes without any updates.
Which set of steps configures the bridge domain that satisfies the requirements?

A.Multicast Destination Flooding should be set to Flood in BD.
Set L3 Unknown Multicast Flooding to Flood.
Select the default Endpoint Retention Policy with a Local Endpoint Aging Interval of 1200 seconds.

B.Select the ARP Flooding checkbox.
Create an Endpoint Retention Policy with a Remote Endpoint Aging Interval of 20 minutes.
Set L3 Unknown Multicast Flooding to Optimized Flooding

C.Switch L2 Unknown Unicast to Flood.
Select the default Endpoint Retention Policy and set the Local Endpoint Aging to 20 minutes.
Set Multicast Destination Flooding to Flood in Encapsulation.

D.Set L2 Unknown Unicast to Hardware Proxy.
Configure L3 Unknown Multicast Flooding to Optimized Flood.
Create an Endpoint Retention Policy with a Local Endpoint Aging interval of 1200 seconds.
