Question 1

How does an engineer globalize routing for ingress calls coming from the PSTN to internal DNs?

A.At the PSTN gateway, put the calling number in PSTN format and the called number in DN format.

B.At Cisco Unified CM, put the calling number in E.164 format and the called number in PSTN format.

C.At the PSTN gateway, put the calling number in E.164 format and the called number in localized (DN) format.

D.At Cisco Unified Communications Manager, put the calling number in E.164 format and the called number in E.164 format.

Question 2

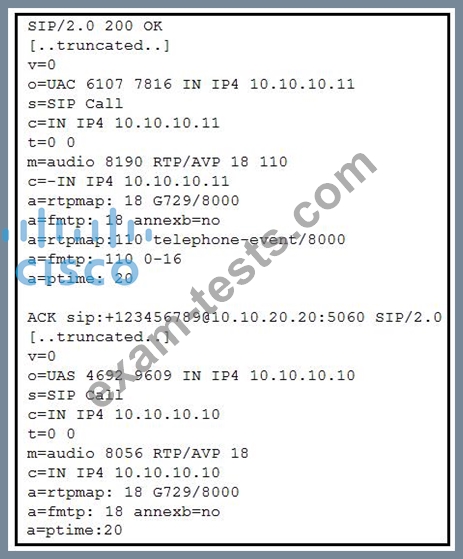

Refer to the exhibit.

Users report that when they dial to Cisco Unity Connection from an external network, they cannot enter any digits. Assuming only in-band DTMF is supported, what is a reason for this malfunction?

A.There is SIP Delayed Offer. DTMF is supported only in Early Offer.

B.No DTMF is negotiated.

C.The rtpmap:0 value for the negotiated codec is marking DTMF as inactive.

D.The negotiated RTP port is outside of the range described by RFC, so inband DTMFs do not work.

Question 3

Which two configuration parameters are prerequisites to set Native Call Queuing on Cisco Unified Communications Manager? (Choose two.)

A.Cisco IP Voice Media Streaming Service must be activated on at least one node in the cluster.

B.A unicast music on hold audio source must be configured.

C.Cisco RIS data collector service must be running on the same server as the Cisco CallManager service.

D.The maximum number of callers allowed in queue must be 10.

E.The phone button template must have the Queue Status Softkey configured.

Question 4

Refer to the exhibit.

Which INVITE is sent to 10.10.100.123 as a result of this log?

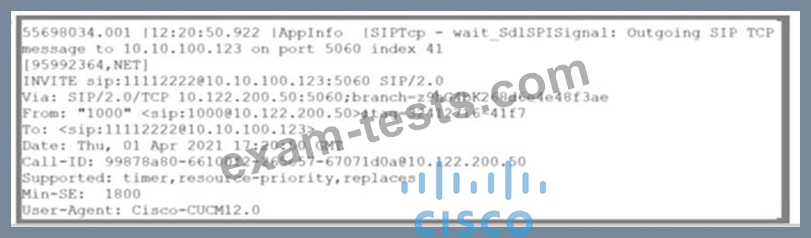

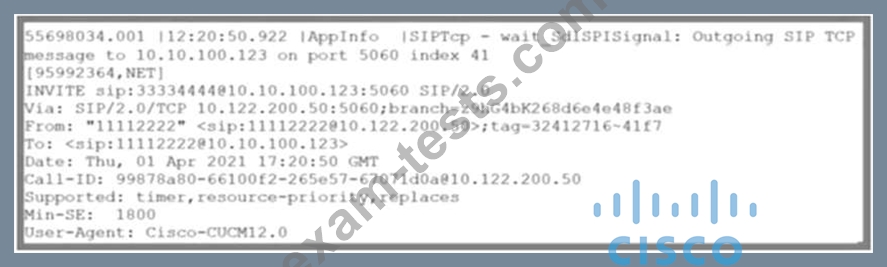

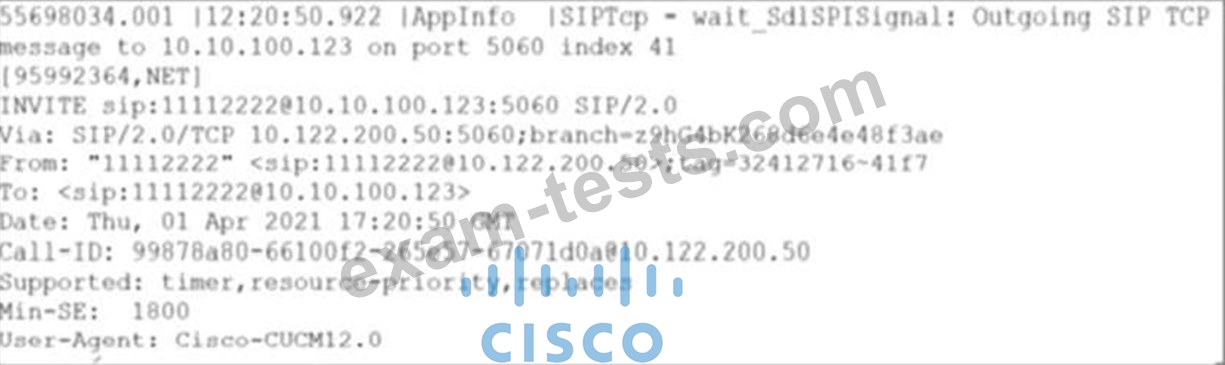

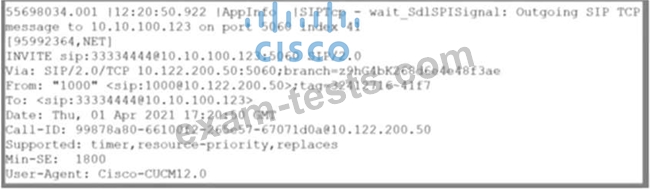

A)

A.Option D

B.Option A

C.Option B

D.Option C

Question 5

A network engineer designs a new dial plan and wants to block a certain range of numbers (8135100 through
8135105). What is the most specific route pattern that can be configured to block only the numbers in this range?

A.81XXXXX

B.813510[^0-5]

C.813510[12345]

D.813510[012345]
