Question 6

Some users who connect to a busy Virtual Server have connections reset by the BIG-IP system.
Pool member resources are NOT a factor in this behavior. What is a possible cause for this behavior?

A.The Connection Rate Limit is set too high

B.The server SSL Profile has NOT been reconfigured.

C.The Connection Limit is set too low.

D.The Rewrite Profile has NOT been configured.

Question 7

An LTM Specialist has a single HTTPS virtual server doing SSL termination. No server SSL profile is defined. The pool members are on the internal VLAN answering on HTTP port 80. Users with certain browsers are experiencing issues. Which two locations are most appropriate to gather packets needed to determine the SSL issue? (Choose two.)

A.LTM device's internal VLAN

B.LTM device's management interface

C.server interface

D.LTM device's external VLAN

E.user's computer

Question 8

A new DNS virtual server has been configured. Testing reveals that DNS server has failed to accept DNS over TCP. The configuration of the virtual server is as follows:

Which action should be taken to correct this issue?

A.create a new virtual server with the service port of 53 and the protocol set to TC

B.add a TCP prone to the existing virtual server.

C.change the profile set on the virtual server To TCP/UDP

D.change the profile set on the virtual server to TCP

Question 9

The three VLANS shown provide connectivity to backend servers. The backend servers are being moved to unmanaged switches and require separate interfaces. How should the F5 device interfaces be configured?

A.Create VLAN named VLAN_A enter 100 under Tag and move interface 1.1 to tagged Create VLAN_B enter 200 and move interface 1.2 to tagged Create VLAN_C Center 300 and move interface 1.3 to tagged.

B.Create a Trunk interface and select VLAN,,A, VLAN_B. and VLAN_C.

C.Create a Trunk interface and combined interface 1.1.1.2 and 1.3.

D.Create VLAN_A move interface 1.1 to untagged. Create VLAN_B move interface 1.2 to untagged.
Create VLAN_C move interface 1.3 to untagged.

Question 10

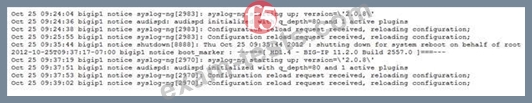

Refer to the exhibit. An LTM Specialist uses the information in the logs to determine the cause of a failover event in a high-availability (HA) pair. What caused the failover?
