Question 196

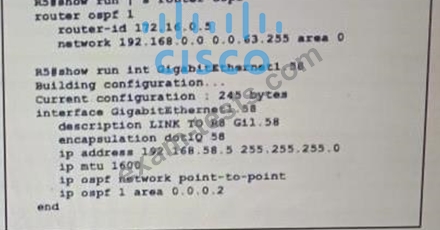

Refer to the exhibit.

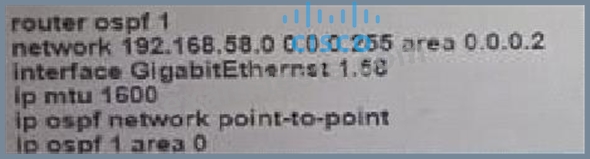

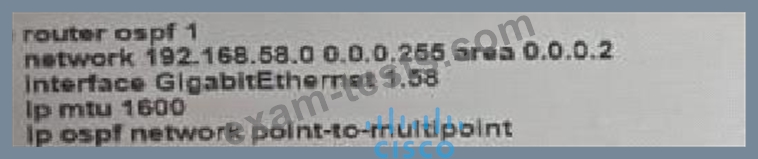

Which configuration must be implemented on router R8 so that it will establish OSPF adjacency with R5?
A)

A.Option A

B.Option C

C.Option B

D.Option D

Question 197

Refer to the exhibit:

Export statistics received do not include the BGP next hop.
Which statement about the NetFlow export statistics is true?

A.Loopback 0 must be participating in BGP for it to be included in the export statistics

B.To include the BGP next hop in the export statistics, those keywords must be included with the version 9 entry.

C.The origin AS and the peer-as will be included in the export statistics

D.Only the origin AS of the source router will be included in the export statistics.

Question 198

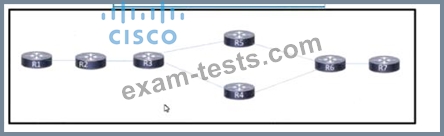

Refer to the exhibit. After a networking team configured this MPLS topology, the supervisor wants to view MPLS labels to verify the path that packets take from router R1 to router R7 The team already Issued an ICMP ping to verify connectivity between the devices. Which task must the team perform to allow the supervisor to view the label switch path?

A.Configure MPLS TE to display the labels in the stack between the head and tail-end routers

B.Configure MPLS LDP Sync to sync labels from the routing table to the MPLS forwarding table.

C.Implement MPLS LDP to assign labels to all the routes in the transit path.

D.Implement MPLS OAM to display the labels for each hop along the path

Question 199

Refer to the exhibit.

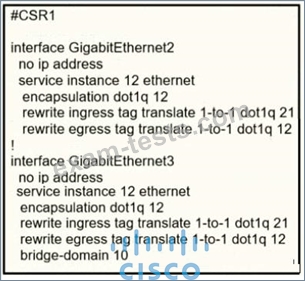

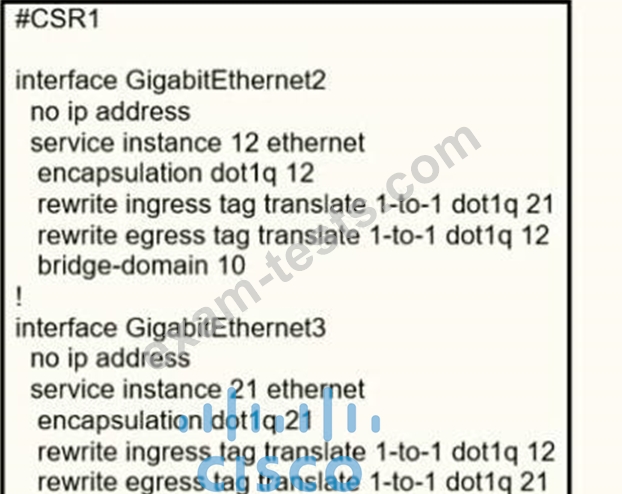

A network operator must configure CSR1 interlaces GigabitEihernet2 and GigabitEthemet to rewrite VLAN tags 12 and 21 for traffic between R1 and R2 respectively. Which configurator accomplishes this task?
A)
