Question 561

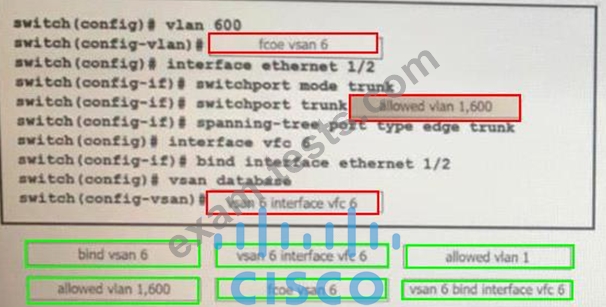

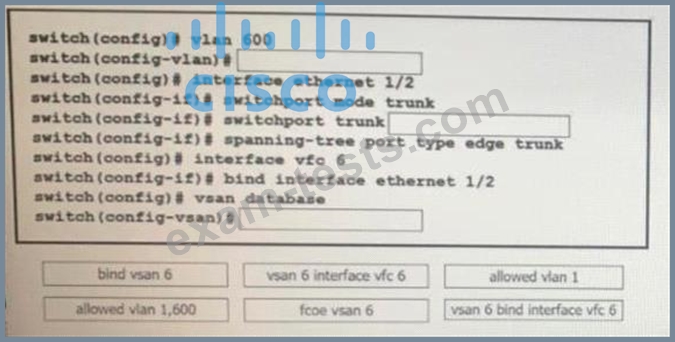

A network engineer must configure FCoE on an interface of a Cisco MDS 9000 Series Switch. It should be used for mapping between VLAN 600 and VSAN 6. Drag and drop the commands from the bottom into their implementation order in the FCoE configuration. Not all commands are used.
Question 562

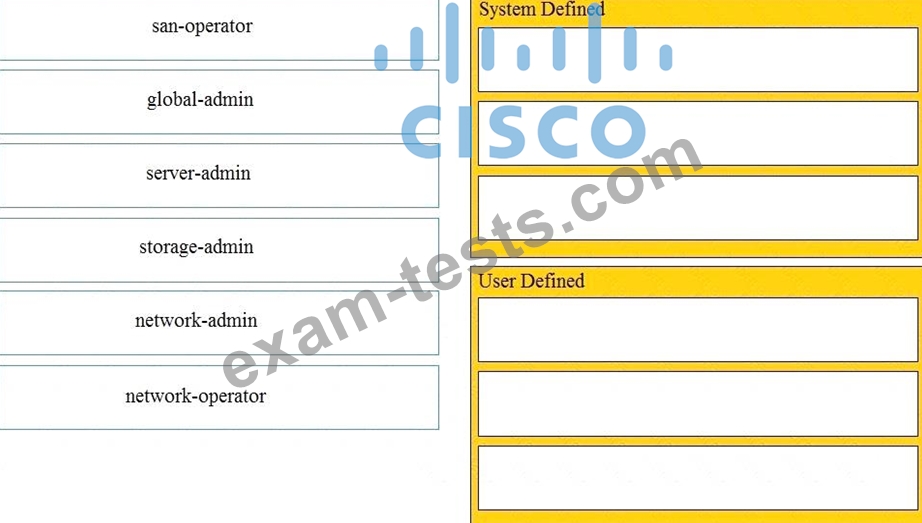

A network engineer must implement RBAC on Cisco MDS 9000 Series Multilayer Switches.
Drag and drop the Cisco MDS 9000 Series roles from the left onto the correct categories on the right.
Drag and drop the Cisco MDS 9000 Series roles from the left onto the correct categories on the right.
Question 563
Refer to the exhibit. An engineer must configure a QoS policy that controls only vHBA traffic. Which policy must be used to meet this requirement?
Question 564

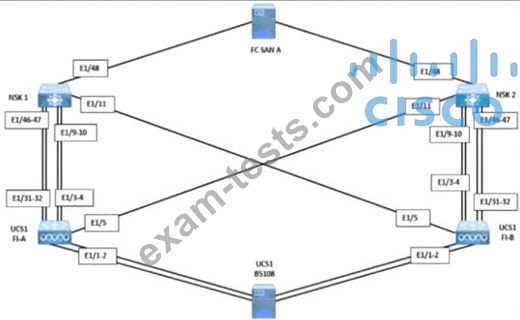

Refer to the exhibit.
A network engineer must configure port E1/31- 32 to forward only storage server traffic of VLAN 200 on Cisco fabric interconnects A and B. Port E1/31- 32 is not reserved for any other traffic. Which port type must be configured to accomplish this goal?
A network engineer must configure port E1/31- 32 to forward only storage server traffic of VLAN 200 on Cisco fabric interconnects A and B. Port E1/31- 32 is not reserved for any other traffic. Which port type must be configured to accomplish this goal?
Question 565

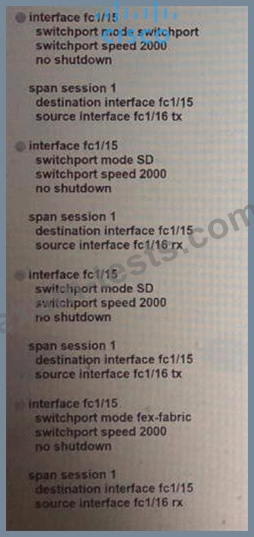

A network engineer must configure a Fibre Channel port monitoring for the local port. The source port should be monitored in the ingress direction. which configuration should be implemented to achieve this objective?
