Free Access Cisco.352-001.v2022-03-07.q250 Practice Test (Page 45)

Question 216

A company wants to use an external appliance between its data center and WAN to optimize email and HTTP communications. The traffic flow must pass this appliance in both directions. The appliance is connected with only one interface to a Cisco IOS router and has a single IP address. Which two adjustments can you make to the network design so that the appliance is added into the traffic path? (Choose two.)

A.Configure NAT to force the traffic to the appliance.

B.Configure static routes to route the traffic to the appliance.

C.Configure a route map at the WAN-side interface to forward the traffic to the appliance IP address.

D.Adjust the dynamic routing to route the traffic to the appliance.

E.Configure a route map at the appliance-facing interface to forward the traffic to the appliance IP address.

F.Configure a route map at the data center-side interface to forward the traffic to the appliance IP address.

Question 217

Which two IoT use cases require the low latency and high reliability that 5G networks provide?

A.Health and Wellness

B.Automotive

C.Smart Cities

D.Smart Home

E.Sports and Fitness

Question 218

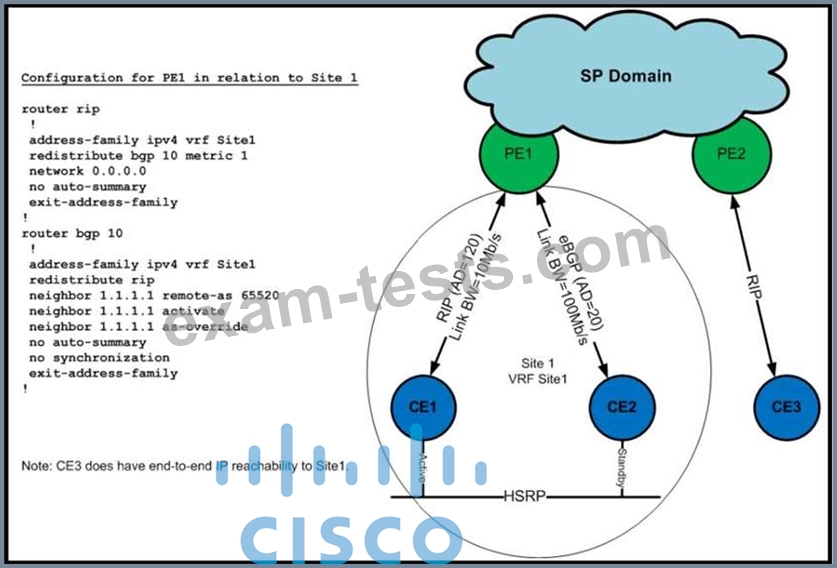

Refer to the exhibit.

Your junior design engineer presents this configuration design. What is the next-hop router for CE3, and why?

A.CE2. The link between CE2 and PE1 has more bandwidth than CE1-to-PE1.

B.CE2. EBGP administrative distance is lower than RIP.

C.CE1. HSRP on CE1 is in active state.

D.CE1. BGP weight is higher than CE2.

Question 219

You are designing an 802.11 wireless network to include a controller as a central configuration point and access points across several remote sites. Which two aspects will manage the flow of the traffic to meet these design considerations? (Choose two.)

A.The 802.1x authentication for a client associated to an AP on a locally switched WLAN is always handled at the wireless LAN controller side.

B.WLAN access lists can be applied only to centrally switched WLANs.

C.The access point can receive multicast traffic in the form of multicast packets from the WLC.

D.Layer 3 roaming is not supported for locally switched WLANs.

E.WLAN local switching with VLAN mapping requires that VLAN ID that is mapped on the AP to match a dynamic interface that is configured on the wireless LAN controller.

Question 220

During a network design review, it is recommended that the network with a single large area should be broken up into a backbone and multiple nonbackbone areas. There are differing opinions on how many ABRs are needed for each area for redundancy. What would be the impact of having additional ABRs per area?

A.There is no impact to increasing the number of ABRs.

B.The size of the FIB is increased.

C.The SPF calculations are more complex.

D.The number of externals and network summaries are increased.
