Free Access Alcatel-Lucent.4A0-100.v2022-02-28.q358 Practice Test (Page 28)

Question 131

What must occur before a LAG becomes operational?

A.There must be multiple ports assigned to the LAG.

B.All ports in the LAG must be configured with the same speed and duplex settings.

C.Auto-negotiation must be enabled on all ports in the LAG.

D.The duplex setting on all the ports must be forced to half.

E.Auto-negotiation must be set to limited or disabled on at least one member port.

Question 132

In the diagram, what type of BGP session is established between the routers of AS 65001 and AS 2002?

A.IBGP

B.IGP

C.EBGP

D.EGP

E.BGP cannot be run between routers in different ASs.

Question 133

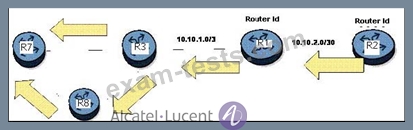

In the diagram, R7 receives a new LSA from R3 and installs it in its link state database. 10 ms. later it receives another copy of the LSA with the same sequence number from R8. What does R7 do with the LSA received from R8?

A.R7 installs the LSA received from R8 in its link state database, sends an ACK to R8 and floods a copy to its neighbors .

B.R7 silently discards the LSA received from R8.

C.R7 discards the LSA received from R8 and sends an ACK to R8.

D.R7 installs the LSA received from R8 in its link state database and floods a copy to its neighbors .

Question 134

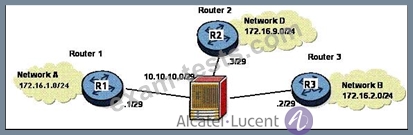

Based on the network diagram (click on exhibit), Router 1 installs the network D in its routing table, based on a dynamic routing update from Router 2. Which of the following describes the information that will be installed in the routing table?

A.172.16.9.0/24 next-hop 10.10.10.1

B.172.16.9.0.24 next-hop 10.10.10.3

C.Any of the above

D.172.16.9.0/24 next-hop 10.10.10.2

Question 135

How is Ethernet II different from Ethernet 802.3?

A.Ethernet II can be used on broadcast networks where as 802.3 was designed for point-to-point networks.

B.Ethernet II and Ethernet 802.3 are two different names for the same protocol.

C.Ethernet II identifies its frame length while 802.3 indicates the payload type.

D.Ethernet II identifies its payload type where as 802.3 indicates the frame length.
