Free Access Alcatel-Lucent.4A0-106.v2022-03-14.q134 Practice Test (Page 14)

Question 61

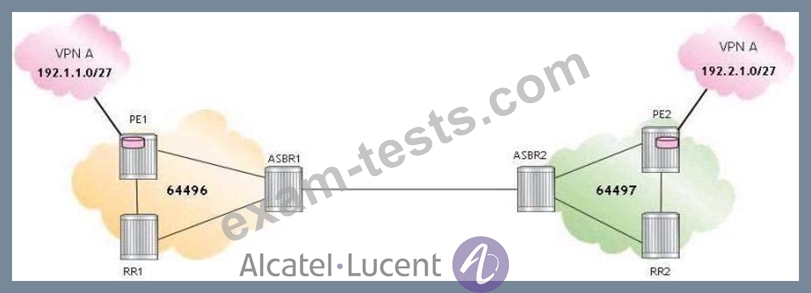

Click the exhibit.

For the inter-AS model C VPRN, which of the following is FALSE when an IP packet is sent from 192.1.1.1 to 192.2.1.1?

A.ASBR2 forwards the IP packet with two labels to PE2.

B.PE2 pops the labels and forwards the unlabeled IP packet to its destination.

C.PE1 pushes two labels on the IP packet and forwards it to ASBR1.

D.ASBR1 pops the LDP label, swaps the BGP label and forwards the IP packet to ASBR2.

Question 62

In a VPRN that uses MPLS transport tunnels, which of the following statements about P devices is TRUE?

A.P devices participate in service provider core routing.

B.P devices are not required to be MPLS-enabled.

C.P devices must be aware of the VPRNs.

D.P devices must support MP-BGP.

Question 63

A customer has two sites connected to PE-1 and a third site dual-homed to PE-2 and PE-3. If BGP is used as the PE-CE protocol, what is the total number of BGP and MP-BGP sessions required on PE-1 for a functional VPRN service? Assume that route reflection is not used.

A.0 BGP and 2 MP-BGP sessions

B.2 BGP and 0 MP-BGP sessions

C.2 BGP and 1 MP-BGP sessions

D.2 BGP and 2 MP-BGP sessions

E.1 BGP and 2 MP-BGP sessions

Question 64

The policies shown below from the configuration of an Nokia 7750 SR have been created to implement an Extranet VPRN between the main sites of two separate VPRNs. How should these policies be applied?

A.ample Policy should be applied as an export policy on both PEs connected to the main site of Customer 1 and the main site of Customer 2

B.ample Policy should be applied as an export policy on the PE connected to the main site of Customer 1

C.ample Policy 3 should be applied as an export policy on the PE connected to the main site of Customer 2

D.ample Policy 3 should be applied as an export policy on both PEs connected to the main site of Customer 1 and the main site of Customer 2

E.ample Policy should be applied as an export policy on all PEs connected to sites of Customer 1

Question 65

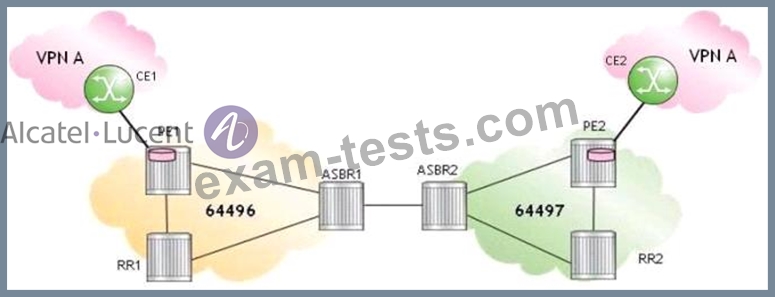

Click the exhibit.

For the inter-AS model C VPRN, which of the following statements about a data packet sent from CE1 toCE2isTRUE?

A.ASBR1 sends the data packet with one label: the BGP label.

B.PE1 sends the data packet with three labels: the bottom label is a service label, the middle label is a BGP label, and the top label is an LDP label.

C.ASBR1 sends the data packet with one label: the service label.

D.ASBR2 sends the data packet with three labels: the bottom label is a service label, the middle label is a BGP label, and the top label is an LDP label.
