Free Access Nokia.4A0-C01.v2022-03-22.q236 Practice Test (Page 28)

Question 131

Which of the following about SAPs is FALSE?

A.A SAP is the subscriber's point of entry to the service network.

B.A SAP can be associated with more than one service.

C.A SAP is created by specifying a physical port and an encapsulation type.

D.A SAP can only be created on a port configured as "access".

Question 132

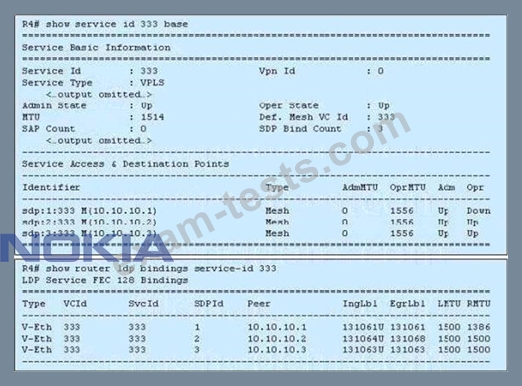

Click the exhibit.

Both clips of output are from router R4. The show service command indicates that an SDP is down.
What might be the cause?

A.The service MTU on 10.10.10.1 has been set to a different value.

B.The mesh SDP on 10.10.10.1 has been shutdown.

C.The IngLbl and EgrLbl that router R4 has for 10.10.10.1 are identical.

D.The mesh SDP on router R4 has been shutdown.

Question 133

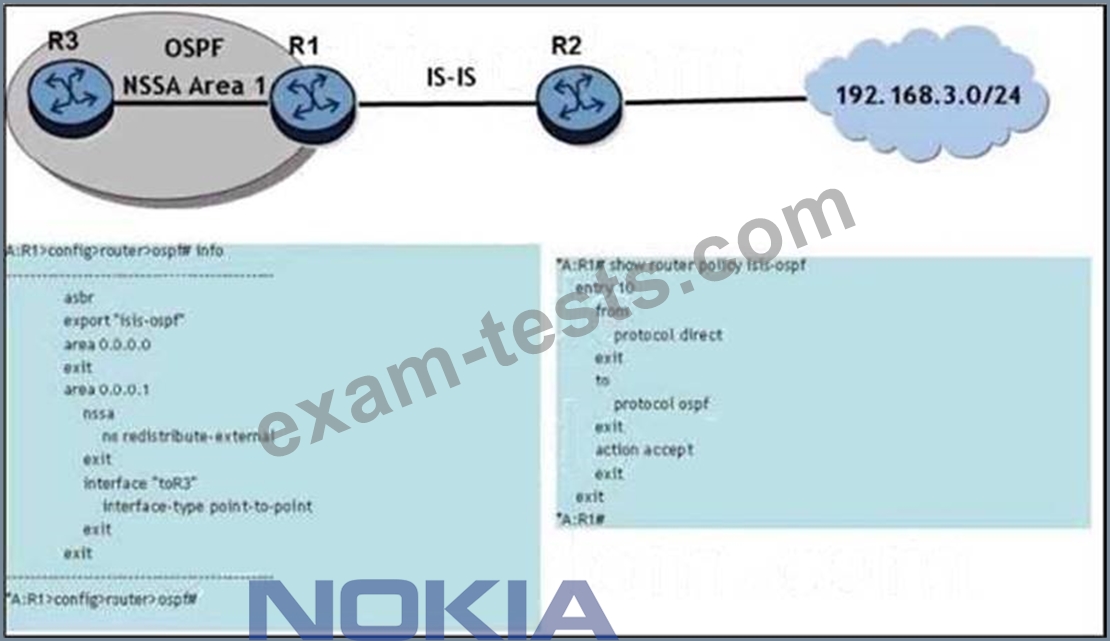

Click the exhibit button

The 192 168 3.0/24 network is learned on router R1 via IS-IS Given the OSPF configuration shown, and assuming that the OSPF adjacency between routers R1 and R3 is up, why is the 192 168.3.0/24 route not in router R3's route table? (Choose two)

A.The route policy should be applied as in import policy

B.The no-redistribute-external command is used on router R1

C.The interface between routers R1 and R3 needs to be in OSPF area 0 rather than OSPF area 1 because a backbone area must always exist.

D.It is not possible to be an ASBR and an NSSA. The ASBR configuration should be removed.

E.The route policy is incorrect. It should say "from protocol ISIS" rather than "from protocol direct".

Question 134

Which of the following regarding the IS-IS PSNP is FALSE?

A.A PSNP lists some of the LSPs in the router's database.

B.PSNPs are used on point-to-point links to acknowledge the receipt of an LSP.

C.There are three types of PSNPs: Level 1, Level 2, and Level 1/2.

D.PSNPs are used by an IS-IS router to request LSP information from a neighboring router.

Question 135

Which type of IS-IS router is summarization most likely to be configured on?

A.L1 and L2 routers

B.L1/L2 routers

C.L1 routers

D.L2 routers
