Free Access Nokia.4A0-C02.v2022-05-05.q224 Practice Test (Page 31)

Question 146

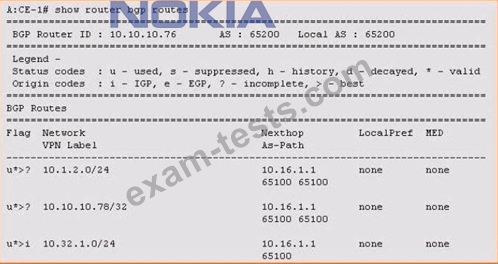

Click the exhibit.

Assuming that the as-override command is used, what is the most likely location of prefix 10.1.2.0/24?

A.There is a single Autonomous System between the local AS and the AS that originated the prefix.

B.The prefix is located in an Autonomous System directly connected to this router.

C.There are two Autonomous Systems between the local AS and the AS that originated the prefix.

D.The prefix is located in Autonomous System 65100.

Question 147

What class of attribute is Originator_ID?

A.Well-known discretionary.

B.Optional non-transitive.

C.Well-known mandatory.

D.Optional transitive.

Question 148

Which of the following statements regarding BGP Add-Paths is FALSE?

A.A BGP speaker must advertise the capability to send multiple paths to its peer.

B.A BGP speaker must advertise the capability to receive multiple paths from its peer.

C.Add-Paths allows non-best paths to be advertised to a peer.

D.Add-Paths capabilities are exchanged between peers after the BGP session is established.

Question 149

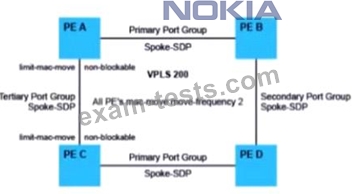

The port groups have been configured consistently on the PE routers, as highlighted in the exhibit. Which SDP connection will be blocked first when the re-learn rate is exceeded?

A.The connection between PE*D and PE-B

B.The connection between PE-D and PE-C

C.The connection between PE-A and PE-B

D.The connection between PE-A and PE-C

Question 150
