Question 6

Which failure scenario is NOT supported by IEEE 802.lag?

A.Merged Services.

B.Loop detection.

C.Loss of connectivity.

D.End-to-end bit error rates.

E.Unidirectional Loss.

Question 7

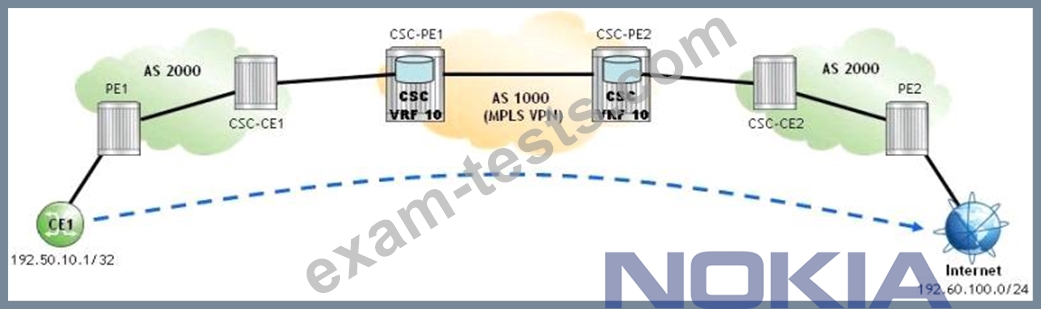

Click the exhibit.

A Carrier Supporting Carrier (CSC) VPRN is configured for a customer carrier who is an Internet Service Provider (ISP). If CE1 sends an IP packet to 192.60.100.1, which of the following is FALSE?

A.CSC-CE2 pops the BGP label and pushes an LDP transport label.

B.PE1 pushes an LDP transport label.

C.CSC-PE1 pops the BGP label and pushes two labels: a VPN label and an MPLS transport label.

D.CSC-PE2 pops the MPLS transport label and pushes a BGP label.

Question 8

Router R1 is a route reflector with clients R2, R5 and R6. Prefixes advertised by router R5 have a local preference of 200. Router R3 advertises the prefix 192.168.1.0/27 to routers R5 and R6.

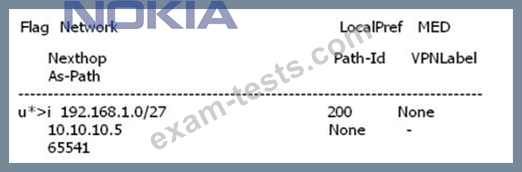

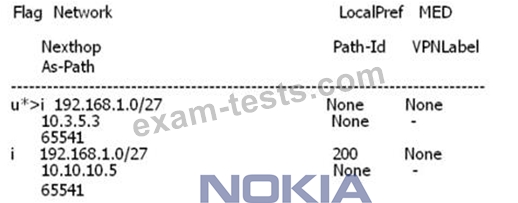

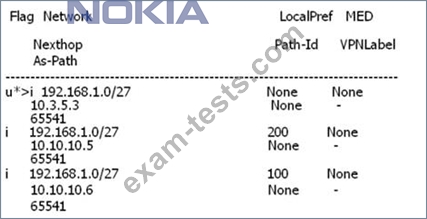

Assuming that router R6 is configured with "advertise-external", what is the expected output of "show router bgp routes" when executed on router R5?

A.Option A

B.Option C

C.Option D

D.Option B

Question 9

For the extranet VPRN and community lists shown, which of the following communities will be included in the export policy applied to VPRN 20 on router R2?

A."Blue-Green"

B."Blue-Only" and "Blue-Green"

C."Green-Only"

D."Extranet-VPN-Green"

E."Blue-Only"

Question 10

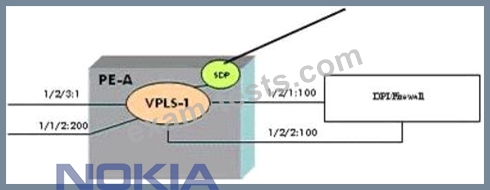

Click on the exhibit below.

In the following diagram, traffic ingressing on SAP 1/2/3:1 will be passed to the layer-2 DPI device for inspection based on a filter policy applied to the ingress of the SAP. What feature should be enabled on SAP 1/2/1:100 and SAP 1/2/2:100 to ensure that incorrect information is not populated in the FDB of VPLS 1?

A.The SAPs connected to the DPI should be configured with the "discard-unknown" feature to limit MAC learning on the port

B.An IP filter should be applied to both SAPs connected to the DPI to prevent FDB instability

C.A MAC filter should be applied to both SAPs connected to the DPI to limit MAC learning on the port

D.Learning should be disabled on both SAPs connected to the DPI device to prevent FDB instability
