Online Access Free 600-660 Practice Test

An organization migrates its virtualized servers from a legacy environment to Cisco ACI. VM1 is incorrectly attached to PortGroup IT|3TierApp|Web.

Which action limits IP address learning in BD1?

• A.Enable Enforce Subnet Check
• B.Enable GARP-based EP Move Detection Mode
• C.Enable Rouge Endpoint Control
• D.Disable Remote EP Learn

Which firewall connection allows for the integration of service nodes in transparent mode with a Cisco ACI Multi-Pod setup?

• A.active-standby mode across pods
• B.active-active mode per pods for communication between internal endpoints
• C.active-standby mode per pods for communication between endpoints and external networks
• D.active-active mode across pods

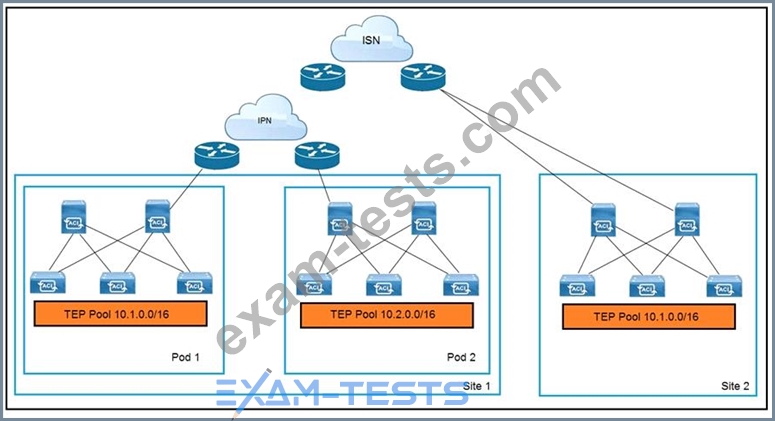

Refer to the exhibit.

Which two configuration steps are required in ISN for Cisco ACI Multi-Site setup? (Choose two.)

• A.Enable IGMPv3 on ISN routers
• B.Connect Spine2 to ISN routers.
• C.Configure OSPF between spines and ISN routers
• D.Increase ISN MTU to support the maximum MTU that is sent by endpoints
• E.Configure BIDIR-PIM throughout the ISN

What is a use of the Overlay Multicast TEP in Cisco ACI Multi-Site communication?

• A.to act as the source IP for BUM traffic
• B.to establish MP-BGP adjacencies with remote spines
• C.to perform headend replication
• D.to send and receive unicast VXLAN data plane traffic

What are two characteristics of Cisco ACI interaction with MSTP? (Choose two.)

• A.Mis-cabling protocol is used to snoop the MSTP TCN packets.
• B.The PVST simulation must be configured on external network switches to support MSTP.
• C.A dedicated EPG must be created for the native VLAN ID with static bindings toward the MSTP-enabled switches.
• D.A static path binding is required for native VLAN to carry the MST BPDUs in existing EPGs.
• E.A Cisco ACI leaf flushes all local endpoints in the received EPG when an MSTP TCN frame is received.
