In order to set up the Customer Data Block within Element Manager to support Zone Based
Dialing, and assuming Package 420 ZBD Package is installed and active, what needs to be done first?

• A.Select the "Enable Numbering Zones" option from the customer's Feature page.
• B.Select the Public Dial Plan from the customer's Features page.
• C.Select the Private Dial Plan from the customer's Features page.
• D.Configure Numbering Zones.

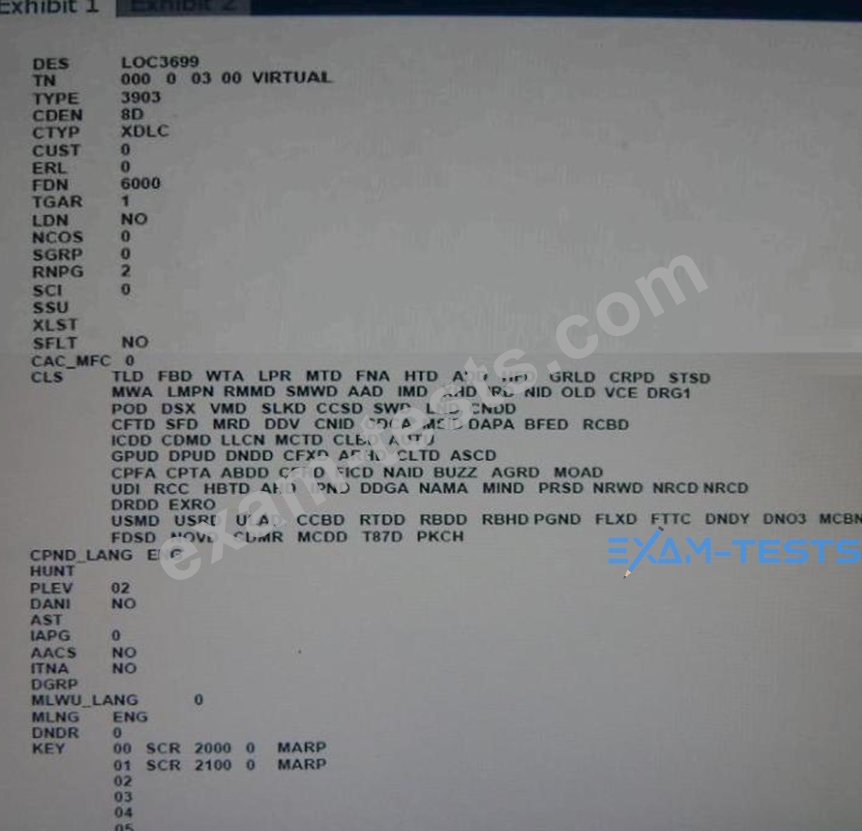

Click the Exhibit button.

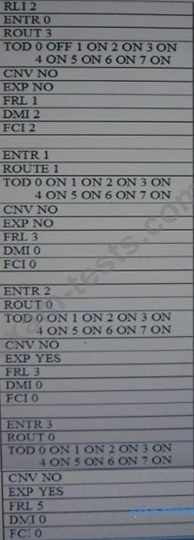

Refer to the customer's dialing plan and programming show in the exhibits.
Assuming all required Route List Indexes have been programmed, why will the station user's dialed call of 8-1-717-398-8001 not complete?

• A.AC1 Access Code was not dialed
• B.398-8001 would be denied under the SDRR programming
• C.NPA 1717 is not provisioned in the customer's database
• D.AC2 Access Code was not dialed

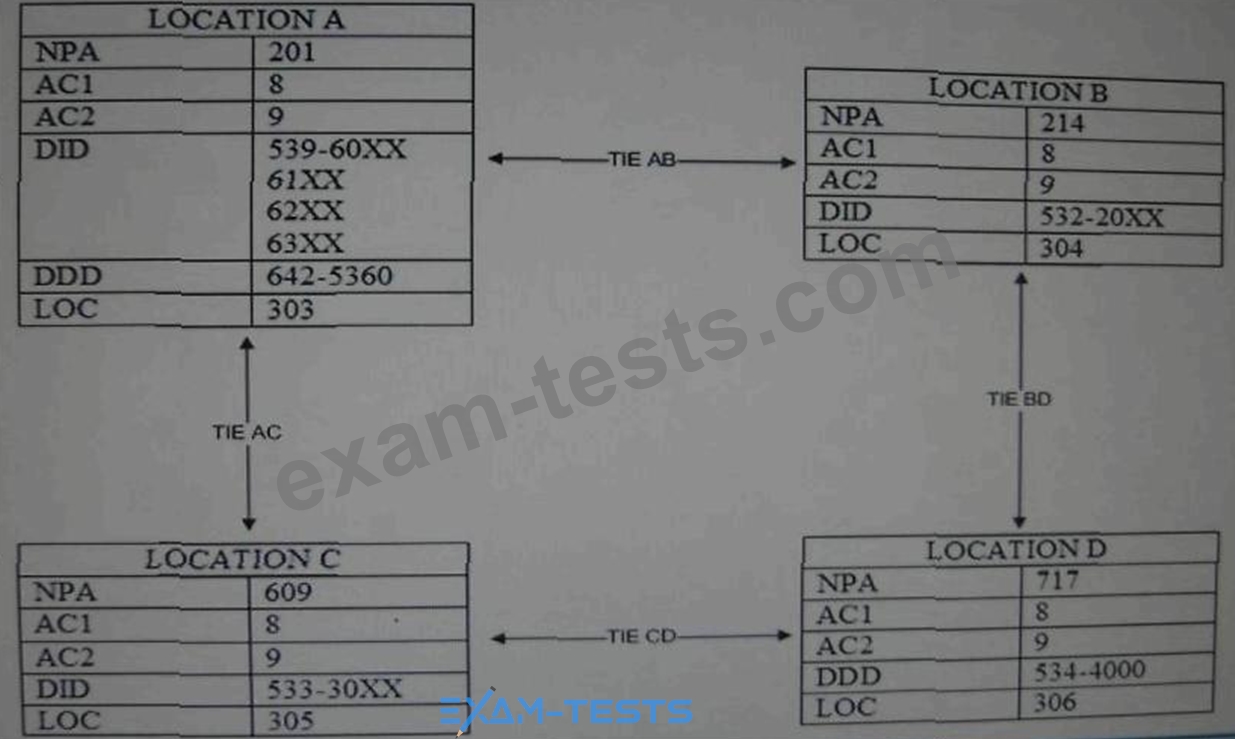

Click the Exhibit button.

Consider the a customer's dialing plan shown in the exhibit, which detail on-net and off-net dialing requirements:
TIE trunks between Location A and Location B are currently out of service.
TIE trunks between Location B and Location D are currently out of service.
All over TIE trunks are fully functional.
Which route will a call to LOC 304-2001 take if it originates from location B?

• A.The call will not leave the originating PBX
• B.TIE BD to Location D, then TIE CD to Location C then TIE AC to Location A
• C.TIE AB to Location A.
• D.TIE BD to Location D.

You are using Element Manager to program a Route List Index (RLI).
Which Electronic Switched Network (ESN) parameters must you define to be able to successfully program an RLI?

• A.Optimal Route (OPRT)
• B.Maximum number of route lists (MXRL)
• C.Routing Control (PTCL)
• D.Minimum number of route lists (MNRL)

Click the Exhibit button.

Consider a company's dialing plan shown in the exhibit and an example for its requirements:
A station user at the company, with Location Code 221, placed an ESN call, dialing 7-221-
2581. This would be an On-Net call and the NARS programming must remove the LOC code and dial the DN internally.
What programming would remove the location code for a call dialed within the originating
Communication Server 1000 to a DN on that same Communication Server 1000?

• A.Each site would have its own Location Code programmed as a Home Location Code
  (HLOC) under Translation Table #1 in their CS 1000.
• B.Home NPA Codes (HNPA) for each site would be programmed under Translation Table
  #1 at each location in their CS 1000.
• C.Each site would have the Location Codes for all sites programmed as Home Location
  Codes (HLOC) in Translation Table #1 of their CS 1000.
• D.The location codes for each site would be programmed under the LOC programming in
  Translation Table #2 at all locations.
