Which command is used to filter out the UDP traffic in an Access Point?

• A.tcpdump se01 filter-expr "udp" -vvv
• B.tcpdump gig1 filter-expr "udp" -vvv
• C.tcpdump eth0 filter-expr "udp" -vvv
• D.tcpdump eth1 filter-expr "udp" -vvv

When applying the 8D methodology to mobility network troubleshooting, how should you perform the data collection?

• A.Perform a complete data set collection at each step of the process.
• B.Collect the data for each hypothesis as you test it.
• C.Collect all the data at the end of hypothesis development and testing.
• D.Collect the majority of the data at the beginning of the process before hypothesis development and testing.

A customer implements and supports 1000 Access Points in a single RF cloud.
Which two RF characteristics would you recommend to the customer? (Choose two.)

• A.They need to create separate roaming zones.
• B.They need to limit the number of broadcast domains.
• C.They need to use different Access Points with different SSIDs.
• D.They need to implement more numbers of antennas.

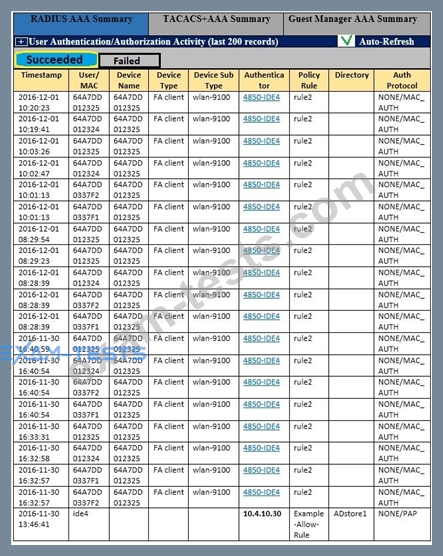

Refer to the exhibit.

When troubleshooting the Wireless Access Points, what information can be determined from the exhibit?

• A.The Access Points are authenticated through Active Directory (AD).
• B.The Access Points are authenticated using Ignition Server (Tacacs + Server).
• C.There are 30 Access Points which are currently monitored by IDE.
• D.The Access Points are authenticated using Ignition Server (Radius Server).

Which two diagnostic views are provided by IDE Ignition Dashboard? (Choose two.)

• A.Syslog information Debugger
• B.Directory Service Debugger
• C.Packet Captures
• D.Access Point Log Debugger
• E.System MAC Tables
