Online Access Free ACMP-6.4 Practice Test

An administrator configures wired access control for Aruba Remote APs (RAPs) located in the company's branch offices with these specifications:
* Some RAP Ethernet ports are set up as trunk ports
* The RAP Ethernet ports are connected to a user's phone, and the data port on the phone is connected to the user's PC
* The phone traffic is tagged and the PC traffic is untagged on these trunk ports
* The administrator defines the Ethernet port as untrusted, but the phone VLAN as trusted
* The administrator defines a global AAA profile for the phone traffic on the tagged VLAN How do the RAPs process the phone traffic?

• A.Apply the AAA profile to the phone traffic
• B.Allow all the phone traffic
• C.Drop all the phone traffic
• D.Apply the global profile to the phone traffic

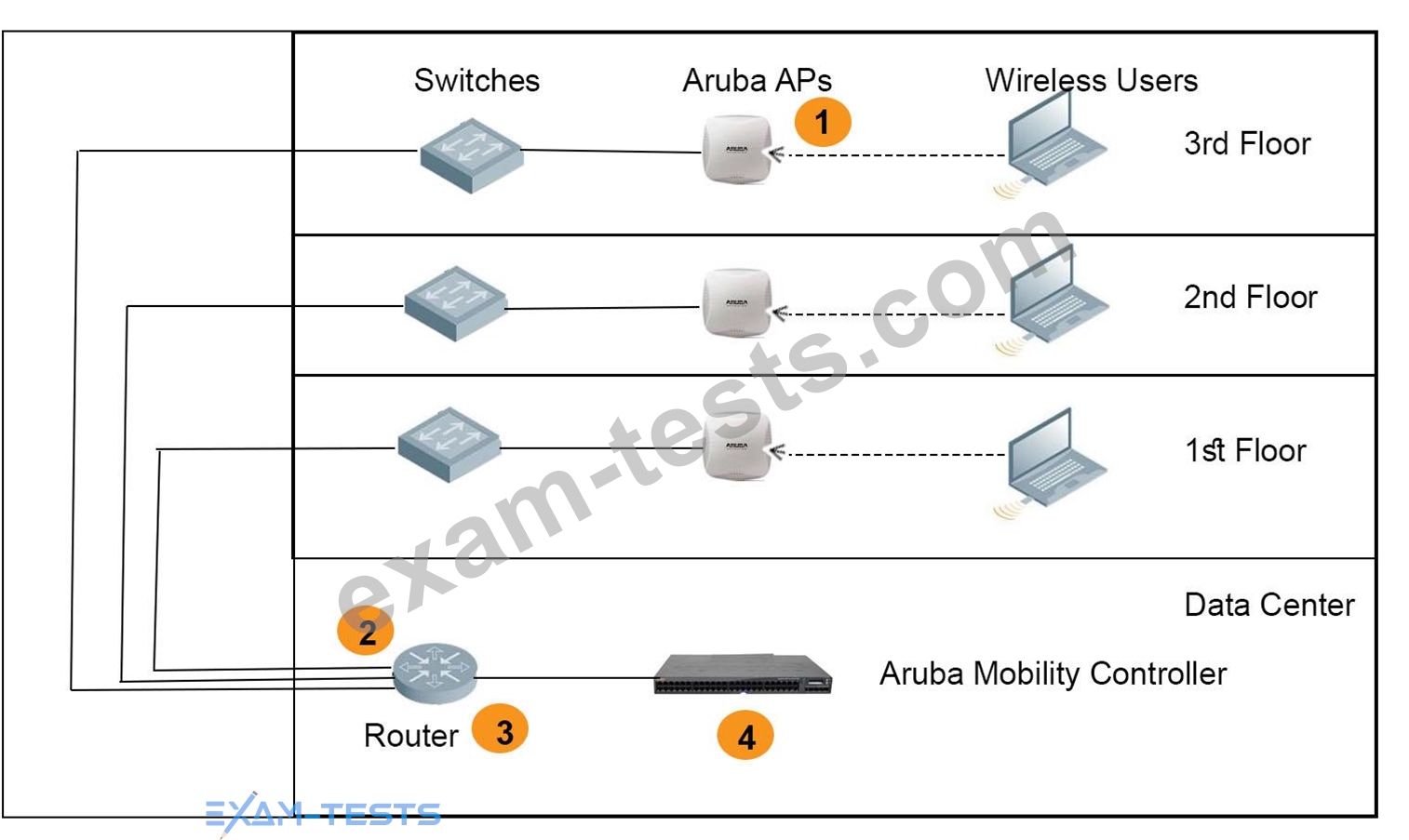

Refer to the exhibit.

An administrator manages a network in an office building. The Aruba APs in the network are configured for tunnel mode when they connect to the Aruba Mobility Controller in the data center. Each floor of the building has a separate VLAN for the wireless users. These VLANs are included in the trunk configuration from the Aruba Mobility Controller to the Router.
Which default gateway address should the wireless user receive with DHCP?

• A.1 - Aruba on each respective floor
• B.3 - Router's interface connected to the Aruba Mobility Controller
• C.4 - Aruba Mobility Controller's trunk interface connected to the router
• D.2 - Router's interface connected to the switch on each respective floor

A network administrator runs a 'show ap mesh topology' command on an Aruba controller. Which of the following information would he be able to obtain?

• A.The parent of each mesh node
• B.The channel settings of each mesh node
• C.The number of hops each mesh points has to make to reach the mesh portal
• D.The number of mesh nodes in the network

When configuring split tunnel mode on a Remote AP (RAP) where is the routing function for the split tunnel defined?

• A.On the AP provisioning screen.
• B.In the RAP static routing tables
• C.In the Firewall policy
• D.On the IP routing tab in the configuration screen.
• E.In the RAP whitelist

A port on a controller has been configured as untrusted. No wired access AAA profile or Global AAA profile is configured. When a user connects to that port which of the following statements is true?

• A.When configuring the port as untrusted, an error message of "no wired access AAA profile exists" Therefore this is an invalid configuration.
• B.Since there is no wired access AAA profile or Global AAA profile the user will be given the logon role.
• C.The user will fall into the default wired access AAA profile and will be given the initial role.
• D.Since there is no wired access AAA profile, only port policies will be applied
• E.the user is denied all access automatically because no wired access AAA or Global AAA profile is assigned.
