A block entity in the current drawing needs to be converted to a new drawing file of its own.
Which command should be used?

• A.BLOCK
• B.WBLOCK
• C.BSAVEAS
• D.BEDIT

Exhibit.

The exhibit shows the drawing scales available in the current drawing.
The drawing units Length type is set to decimal.
A CAD designer needs to add a 1" = 120' drawing scale.
Which drawing and paper units should be entered in the Add Scale dialog to create the required drawing scale?

• A.Drawing units to 120 and paper units to 15
• B.Drawing unite to 1 and paper units to 120
• C.Drawing units to 960 and paper units to 120.
• D.Drawing units to 120 and paper units to 1.

Refer to exhibit.

• A.Start, End, Direction
• B.Start, Center, Length
• C.Start, Center, End
• D.Center, Start, Angle

While working in a drawing AutoCAD unexpectedly closes After restarting AutoCAD, the Drawing Recovery Manager palette appears on the screen it shows the drawing tile that was opened in the backup flies list.
Which process should be used within the Drawing Recovery Manager to determine which available file is the most current? (Note. Mac commands shown in parentheses.]

• A.Double-click the tile name to open the tile and review the data
• B.Right-click (Control-click) the file name and select the properties option to view the lime and date.
• C.Select each file name and review the last saved date and time in the Details panel.
• D.Press and hold the Ctrl (Command) key select each file and review the displayed results.

Refer to the exhibit.

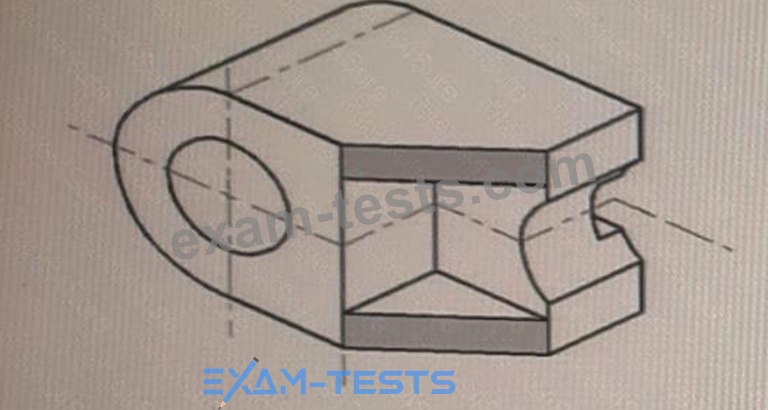

When working on this part created with AutoCAD solids, the dimensions of the shaded planes need to be established.
Which U'CS shows the correct size and shape of the shaded planes?

• A.Face
• B.Vertical
• C.View
• D.World
