Online Access Free CCST-Networking Practice Test

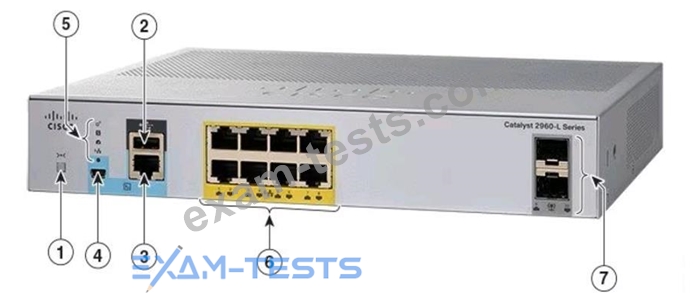

A Cisco PoE switch is shown in the following image. Which type of port will provide both data connectivity and power to an IP phone?

• A.Ports identified with number 6
• B.Ports identified with number 7
• C.Ports identified with numbers 3 and 4
• D.Port identified with number 2

You purchase a new Cisco switch, turn it on, and connect to its console port. You then run the following command:

For each statement about the output, select True or False.
Note: You will receive partial credit for each correct selection.

Correct Answer:

Explanation:
* The two interfaces are administratively shut down:
* False: The output does not show any "shutdown" command under the interfaces, which would indicate that they are administratively shut down. Therefore, they are likely in their default state, which is administratively up.
* The two interfaces have default IP addresses assigned:
* False: The output does not show any IP address configuration. In the default state, interfaces do not have IP addresses assigned unless explicitly configured.
* The two interfaces can communicate over Layer 2:
* True: By default, interfaces on a switch are Layer 2 interfaces capable of forwarding Ethernet frames. As there is no configuration provided that changes this, it can be assumed they can communicate over Layer 2.
* Interface Status: The absence of the "shutdown" command means the interfaces are not administratively shut down.
* IP Address Assignment: There is no evidence in the output that IP addresses have been assigned to the interfaces, which would typically be shown as "ip address" entries.
* Layer 2 Communication: Switch interfaces in their default state operate at Layer 2, enabling them to forward Ethernet frames and participate in Layer 2 communication.
References:
* Cisco IOS Interface Configuration: Cisco Interface Configuration
* Understanding Cisco Switch Interfaces: Cisco Switch Interfaces

Which protocol allows you to securely upload files to another computer on the internet?

• A.NTP
• B.HTTP
• C.SFTP
• D.ICMP

Which two statements are true about the IPv4 address of the default gateway configured on a host? (Choose 2.) Note: You will receive partial credit for each correct selection.

• A.The same default gateway IPv4 address is configured on each host on the local network.
• B.Hosts learn the default gateway IPv4 address through router advertisement messages.
• C.The default gateway is the Loopback0 interface IPv4 address of the router connected to the same local network as the host.
• D.The IPv4 address of the default gateway must be the first host address in the subnet.
• E.The default gateway is the IPv4 address of the router interface connected to the same local network as the host.

Which command will display all the current operational settings configured on a Cisco router?

• A.show version
• B.show protocols
• C.show running-config
• D.show startup-config
