See the solution below with Step by Step Explanation.
Explanation:
Solution (Step by Step) :
1 . Choose the appropriate Container Network Interface Plugin:
- For secure and reliable communication between services within the same Kubernetes cluster, the Calico container network interface plugin is a recommended choice.
2. Reasons for choosing Calico:
- Security: Calico provides robust network security features like network policies that allow you to define fine- grained access control rules between pods and services. This ensures secure communication only between authorized entities.
- Reliability: Calico offers high availability and reliability. It uses a distributed architecture and supports BGP for efficient routing and load balancing, leading to resilient network connectivity.
- Ease of Use: Calico integrates seamlessly with Kubernetes and is easy to configure and manage.
- Scalability: It's highly scalable, enabling you to manage large and complex Kubernetes environments.
3. Example Implementation:
- Install Calico: Use the 'kubectl' command to install Calico on your Kubernetes cluster:
kubectl apply -f https://docs.projectcalico.org/v3.19/getting-
started/kubernetes/installation/l .8+/manifests/calico.yaml

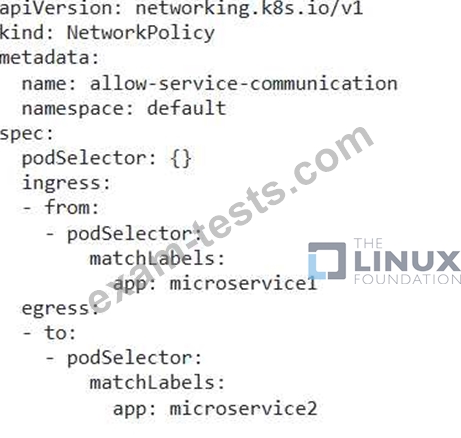

- Define Network Policies: Create network policies to control communication between your services. Here's an example:

This policy allows pods labeled 'app: microservice? to communicate with pods labeled 'app: microservice? within the 'default' namespace. 4. Verify the Configuration: - Use 'kubectl get networkpolicies' to list the defined network policies. - Test communication between your services. Note: Calico is a popular and highly regarded choice for Kubernetes networking. However, other plugins like Flannel and Weave are also viable options, depending on your specific requirements and preferences. ,

See the solution below with Step by Step Explanation.
Explanation:
Solution (Step by Step) :
1. Implement a Hierarchical Structure:
- Create high-level roles for common tasks such as "admin," "developer," "viewer," etc., providing broad permissions.
- Build more specific roles for specific applications or services, inheriting permissions from the higher-level roles.
- Example:
- "admin" role: grants full access to the cluster.
- "app-developer" role: inherits from "admin," but with restricted permissions only to specific namespaces and resources related to the application.
- "app-viewer" role: inherits from "app-developer" with limited permissions for monitoring and viewing resources.
2. Utilize ClusterRoles for Global Permissions:
- ClusterRoles are designed to grant permissions across the entire cluster, simplifying management for resources that need consistent access.
- This allows for centralized control of common permissions, reducing duplication of role definitions.
3. Leverage Service Accounts for Application-Level Permissions:
- Create service accounts for each application and bind them to appropriate roles.
- Use service accounts to manage access for pods, deployments, and other resources related to a specific application.
- This reduces the need for manually assigning permissions to individual resources.
4. Adopt a Role-Based Structure:
- Design RBAC policies around roles instead of individual users.
- This allows for easier management of permissions by modifying roles rather than individual user bindings.
- Ensure users are assigned to appropriate roles based on their responsibilities.
5. Implement RBAC Auditing and Monitoring:
- Use tools like 'kubectl auth can-i' to test and validate RBAC permissions.
- Monitor RBAC events and changes using audit logging features.
- Analyze audit logs to identify any suspicious activity and troubleshoot RBAC issues.
6. Consider External RBAC Solutions:
- For larger deployments, consider using external RBAC solutions like Keycloak or OpenLDAP for centralized user management and role-based access control.
- This can simplify the process of managing users, roles, and permissions across multiple clusters.
7. Documentation:
- Maintain comprehensive documentation of your RBAC setup, including roles, bindings, and any specific permissions.
- This documentation will be crucial for future maintenance, debugging, and troubleshooting. ,

See the solution below with Step by Step Explanation.
Explanation:
Solution (Step by Step) :
1. Install CoreDNS in Both Clusters:
- Follow the steps in the previous solution to install and configure CoreDNS in both 'cluster 1 ' and 'cluster?.

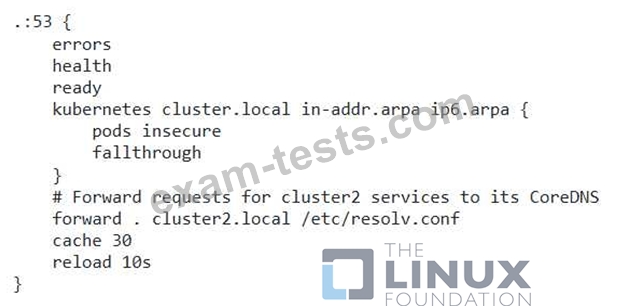

2. Configure Cross-Cluster DNS in CoreDNS:
- In 'cluster 1 ' , modify the CoreDNS configuration file to forward requests for services in 'cluster? to the CoreDNS service in 'cluster?.

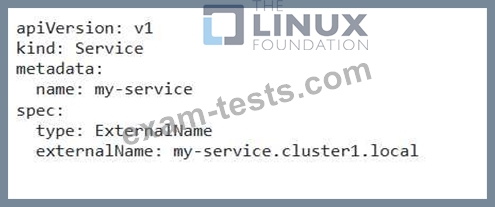

- Repeat the same configuration for 'cluster2' , forwarding requests for services in 'cluster 1 ' to the CoreDNS service in 'clusterl'. 3. Configure Services with External Names: - In 'cluster? , configure the 'my-service' service to have an 'externalName' field set to 'my- service.clusterl .locar. This will tell CoreDNS to forward requests for 'my-service' to the CoreDNS service in 'cluster 1'.

4. Test Cross-Cluster Communication: - Deploy a pod in 'cluster 1 ' that tries to access 'my-service' in 'cluster?. - Verify that the pod can successfully communicate with the service in 'cluster? using its service name.

See the solution below with Step by Step Explanation.
Explanation:
Solution (Step by Step) :

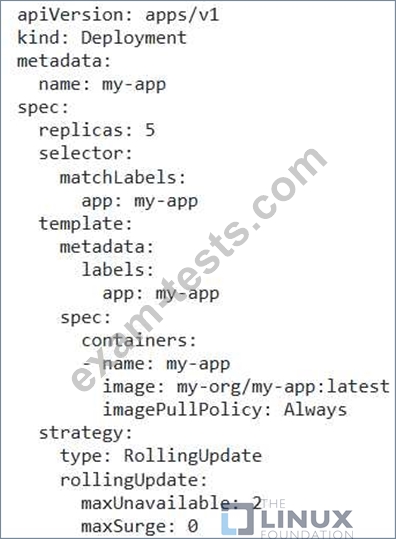

1. Update the Deployment YAML:
- Update the 'replicas' to 5.
- Define 'maxUnavailable: 2' and 'maxSurge: 0' in the 'strategy.rollingUpdate' section to control the rolling update process.
- Configure a 'strategy.type' to 'RollingUpdate' to trigger a rolling update when the deployment is updated.
- Add a 'spec.template.spec.imagePullPolicy: Always' to ensure that the new image is pulled even if it exists in the pod's local cache.

2. Create the Deployment: - Apply the updated YAML file using 'kubectl apply -f my-app.yamP 3. Verify the Deployment: - Check the status of the deployment using 'kubectl get deployments my-app' to confirm the rollout and updated replica count. 4. Trigger the Automatic Update: - Push a new image to the 'my.org/my-app:latest' Docker Hub repository. 5. Monitor the Deployment: - Use 'kubectl get pods -l app=my-app' to monitor the pod updates during the rolling update process. You will observe that up to 2 pods are terminated at a time, while new pods with the updated image are created. 6. Check for Successful Update: - Once the deployment is complete, use 'kubectl describe deployment my-app' to see that the 'updatedReplicas' field matches the 'replicas' field, indicating a successful update.

See the solution below.
Explanation
solution
You must use the kubeadm configuration file located at /etc/kubeadm.conf when initializingyour cluster.
You may use any CNI plugin to complete this task, but if you don't have your favourite CNI plugin's manifest URL at hand, Calico is one popular option:
https://docs.projectcalico.org/v3.14/manifests/calico.yaml
Docker is already installed on both nodes and apt has been configured so that you can install the required tools.
