The process logfiled in FortiGate units with an SSD disk is responsible for buffering logs when FortiAnalyzer is unreachable. If the connection to FortiAnalyzer is lost and the memory log buffer is full, logfiled allows logs to be buffered on disk. These logs are then sent to FortiAnalyzer once the connection is restored. This reliable logging mechanism ensures that logs are not lost during periods when FortiAnalyzer is not reachable, thereby maintaining log integrity and continuity.
Reference: FortiOS 7.4.1 Administration Guide, "Log Buffering" and "Reliable Logging" sections.

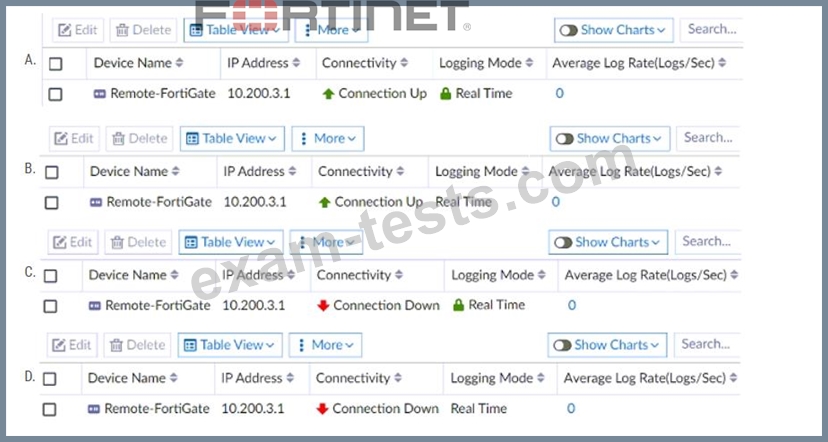

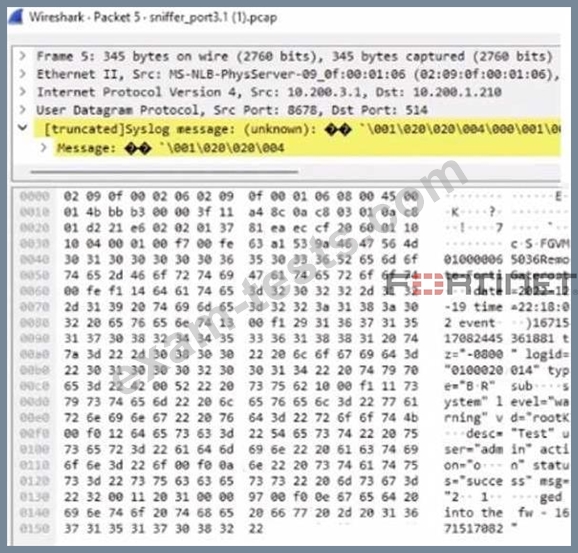

The exhibit shows a packet capture with a syslog message containing a log event from a FortiGate device. This log event includes several details such as the date, time, and event message. The corresponding image that matches this packet capture would be the one which shows that the FortiGate device has logs being received in real-time, as indicated by the highlighted section in the packet capture where it mentions "real-time". Therefore, Option A is the correct answer because it shows logs with "Real Time" status for the FortiGate-VM64 device, indicating that this FortiAnalyzer is currently receiving real- time logs from the device, matching the activity in the packet capture.
Reference: Based on the provided exhibits and the real-time logging information, correlated with the knowledge from the FortiAnalyzer 7.2 Administrator documentation regarding log reception and device management.

FortiAnalyzer Administrator 7.2 Study Guide p. 183 OFTP is used over SSL when information is synchronized between FortiAnalyzer and FortiGate. OFTP listens on port TCP/514. Port UDP/514 is used for unencrypted log communication.
