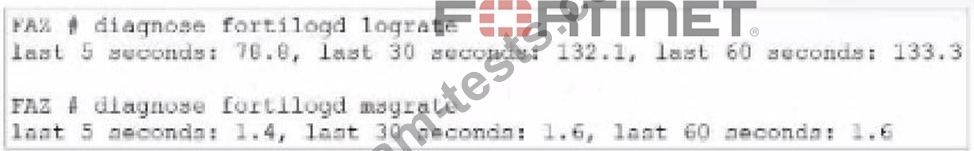

In this output, we see two diagnostic commands executed on a FortiAnalyzer device:
* diagnose fortilogd lograte: This command shows the rate at which logs are being processed by the FortiAnalyzer in terms of log entries per second.
* diagnose fortilogd msgrate: This command displays the message rate, or the rate at which individual messages are being processed.
The values provided in the exhibit output show:
* Log rate (lograte): Consistently high, showing values such as 70.0, 132.1, and 133.3 logs per second over different time intervals.
* Message rate (msgrate): Lower values, around 1.4 to 1.6 messages per second.
Explanation:
* Interpretation of log rate vs. message rate: In FortiAnalyzer, the log rate typically refers to the rate of logs being stored or indexed, while the message rate refers to individual messages within these logs.
Given that a single log entry can contain multiple messages, it's common to see a lower message rate relative to the log rate.
* Understanding normal operation: In this case, the message rate being lower than the log rate is expected and typical behavior. This discrepancy can arise because each log entry may bundle multiple related messages, reducing the message rate relative to the log rate.
Conclusion
* Correct Answer:A. The message rate being lower than the log rate is normal.
* This aligns with the normal operational behavior of FortiAnalyzer in processing logs and messages.
There is no indication that both logs and messages are nearly finished indexing, as that would typically show diminishing rates toward zero, which is not the case here. Additionally, there's no information in this output about specific ADOMs or a comparison between traffic logs and event logs. Thus, options B, C, and D are incorrect.
References:
* FortiOS 7.4.1 and FortiAnalyzer 7.4.1 command guides for diagnose fortilogd lograte and diagnose fortilogd msgrate.

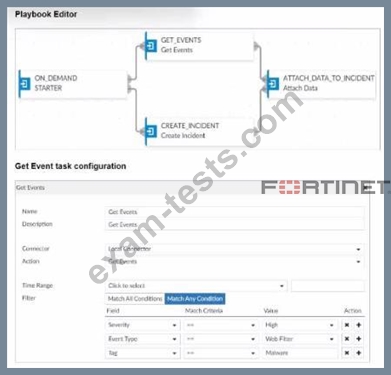

In the exhibit, we see a playbook in FortiAnalyzer designed to retrieve events based on specific criteria, create an incident, and attach relevant data to that incident. The "Get Event" task configuration specifies filters to match any of the following conditions:
* Severity= High
* Event Type= Web Filter
* Tag= Malware
Analysis of Events:
In the FortiAnalyzer Event Monitor list:
* We need to identify events that meet any one of the specified conditions (since the filter is set to "Match Any Condition").
Events Matching Criteria:
* Severity = High:
* There are two events with "High" severity, both with the "Event Type" IPS.
* Event Type = Web Filter:
* There are two events with the "Event Type" Web Filter. One has a "Medium" severity, and the other has a "Low" severity.
* Tag = Malware:
* There are two events tagged with "Malware," both with the "Event Type" Antivirus and
"Medium" severity.
After filtering based on these criteria, there arefour distinct events:
* Two from the "Severity = High" filter.
* One from the "Event Type = Web Filter" filter.
* One from the "Tag = Malware" filter.
Conclusion:
* Correct Answer:D. Four events will be added.
* This answer matches the conditions set in the playbook filter configuration and the events listed in the Event Monitor.
References:
* FortiAnalyzer 7.4.1 documentation on event filtering, playbook configuration, and incident management criteria.
