Question 16

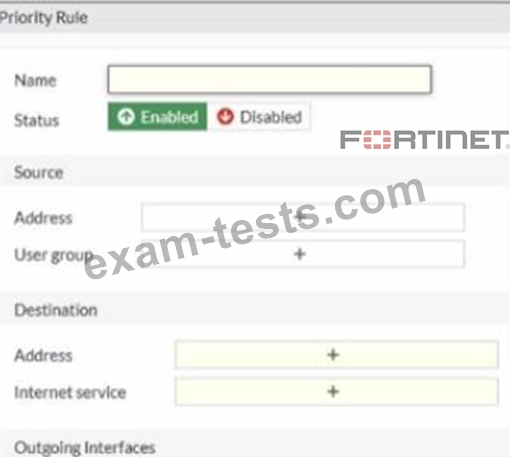

Refer to the exhibit.

An administrator configures SD-WAN rules for a DIA setup using the FortiGate GUI. The page to configure the source and destination part of the rule looks as shown in the exhibit. The GUI page shows no option to configure an application as the destination of the SD-WAN rule Why?

A.You cannot use applications as the destination when FortiGate is used for a DIA setup.

B.You must enable the feature on the CLI.

C.You must enable the feature first using the GUI menu System > Feature Visibility.

D.FortiGate allows the configuration of applications as the destination of SD-WAN rules only on the CLI.

Question 17

Exhibit.

Refer to the exhibit, which shows the SD-WAN rule status and configuration.
Based on the exhibit, which change in the measured packet loss will make HUB1-VPN3 the new preferred member?

A.When HUB1-VPN1 has 12% packet loss

B.When HUB1-VPN3 has 4% packet loss

C.When HUB1-VPN1 has 4% packet loss

D.When all three members have the same packet loss

Question 18

What are three key routing principles of SD-WAN? (Choose three.)

A.SD-WAN rules are skipped if the best route to the destination is a static route

B.Policy routes have precedence over SD-WAN rules.

C.SD-WAN members are skipped if they do not have a valid route to the destination.

D.SD-WAN rules are skipped if the best route to the destination is not an SD-WAN member.

E.Directly connected routes have precedence over SD-WAN rules.

Question 19

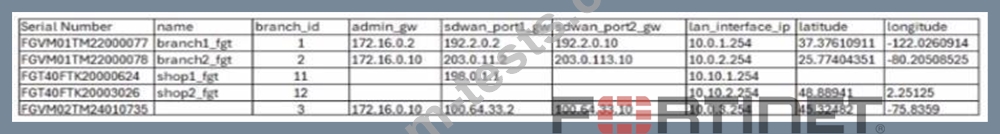

Refer to the exhibit. For your ZTP deployment, you review the CSV file shown in exhibit and note that it is missing important information. Which two elements must you change before you can import it into FortiManager? (Choose two.)

A.You must define a value for each device and each metadata variable that defines an IP address.

B.You must define a value for each device and each user-defined metadata variable.

C.You must define a name for each device

D.You must associate a device blueprint with each device

Question 20

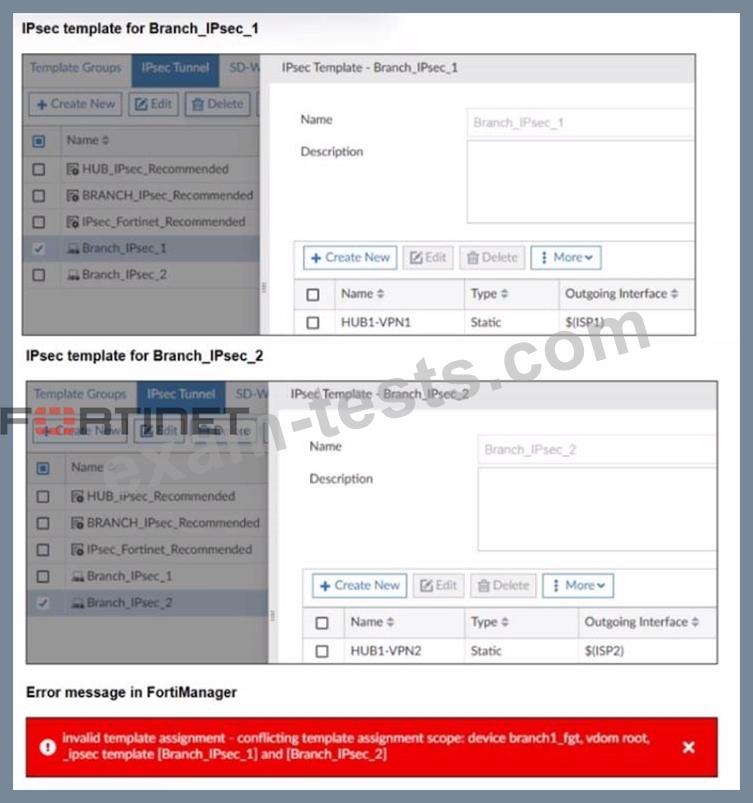

Refer to the exhibits.

The exhibits show two IPsec templates to define Branch IPsec 1 and Branch_IPsec_2. Each template defines a VPN tunnel. The error message that FortiManager displayed when the administrator tried to assign the second template to the FortiGate device is also shown.
Which statement best describes the cause of the issue?

A.You can assign only one template with a tunnel type of static to each FortiGate device.

B.You should use the same outgoing interface of both templates.

C.You can assign only one IPsec template to each FortiGate device.

D.You should review the branch1_fgt configuration for configured tunnels in the rootVDOM.
