Question 81
In the following NSAP, the NET address that can be used as an integrated IS-IS is _______.
Question 82
As shown in the figure, EBGP runs between AS100, AS200, AS300, and AS400.
When AS400 receives BGP routes from AS100, the path sequence recorded in its AS-Path attribute is ______.
When AS400 receives BGP routes from AS100, the path sequence recorded in its AS-Path attribute is ______.
Question 83

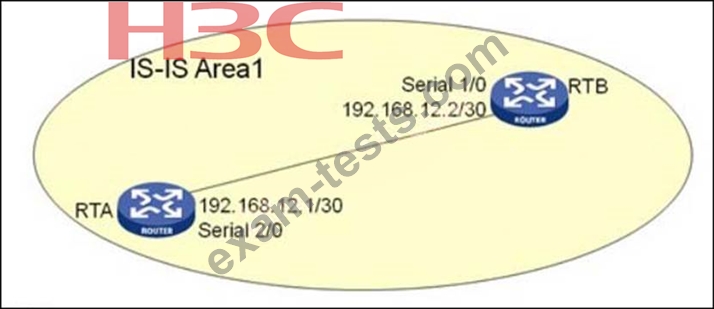

In the IS-IS network as shown in the figure, RTA and RTB are configured as follows:
RTA]isis
RTA-isis-1]is-level level-1
RTA-isis-1]network-entit01.1111.1111.1111.00
RTA-isis-1]interface serial 2/0
RTA-Serial2/0]isis enable 1
RTB]isis
RTB-isis-1]network-entit01.2222.2222.2222.00
RTB-isis-1]interface serial 1/0
RTB-Serial1/0]isis enable 1
RTB-Serial1/0]isis circuit-level level-1
Then between RTA and RTB ______

RTA]isis
RTA-isis-1]is-level level-1
RTA-isis-1]network-entit01.1111.1111.1111.00
RTA-isis-1]interface serial 2/0
RTA-Serial2/0]isis enable 1
RTB]isis
RTB-isis-1]network-entit01.2222.2222.2222.00
RTB-isis-1]interface serial 1/0
RTB-Serial1/0]isis enable 1
RTB-Serial1/0]isis circuit-level level-1
Then between RTA and RTB ______

Question 84
In the IS-IS network as shown in the figure, the RTA, RTB, and RTC configurations are as follows:
RTA]isis
RTA-isis-1]is-level level-1
RTA-isis-1]network-entit01.1111.1111.1111.00
RTA-isis-1]interface serial 2/0
RTA-Serial2/0]isis enable 1
RTA-Serial2/0]isis cost 1
RTB]isis
RTB-isis-1]is-level level-1
RTB-isis-1]network-entit01.2222.2222.2222.00
RTB-isis-1]interface serial 1/0
RTB-Serial1/0]isis enable 1
RTB-Serial1/0]isis cost 1
RTB-Serial1/0]interface Ethernet 0/0
RTB-Ethernet0/0]isis enable 1
RTB-Ethernet0/0]isis cost 1
RTC]isis
RTC-isis-1]is-level level-1
RTC-isis-1]network-entit01.3333.3333.3333.00
RTC-isis-1]interface Ethernet 0/0
RTC-Ethernet0/0]isis enable 1
RTC-Ethernet0/0]isis cost 1
RTC-Ethernet0/0]interface Ethernet 0/1
RTC-Ethernet0/1]isis enable 1
RTC-Ethernet0/1]isis cost 1
After the routing of each router is stable, the cost of IS-IS routing 192.168.3.0/24 on RTA is ______.
RTA]isis
RTA-isis-1]is-level level-1
RTA-isis-1]network-entit01.1111.1111.1111.00
RTA-isis-1]interface serial 2/0
RTA-Serial2/0]isis enable 1
RTA-Serial2/0]isis cost 1
RTB]isis
RTB-isis-1]is-level level-1
RTB-isis-1]network-entit01.2222.2222.2222.00
RTB-isis-1]interface serial 1/0
RTB-Serial1/0]isis enable 1
RTB-Serial1/0]isis cost 1
RTB-Serial1/0]interface Ethernet 0/0
RTB-Ethernet0/0]isis enable 1
RTB-Ethernet0/0]isis cost 1
RTC]isis
RTC-isis-1]is-level level-1
RTC-isis-1]network-entit01.3333.3333.3333.00
RTC-isis-1]interface Ethernet 0/0
RTC-Ethernet0/0]isis enable 1
RTC-Ethernet0/0]isis cost 1
RTC-Ethernet0/0]interface Ethernet 0/1
RTC-Ethernet0/1]isis enable 1
RTC-Ethernet0/1]isis cost 1
After the routing of each router is stable, the cost of IS-IS routing 192.168.3.0/24 on RTA is ______.
Question 85
In the topology shown in the figure, by executing the import-route direct command on RTA, inject 192.168.0.0/24, 192.168.1.0/24, 192.168.2.0/24, 192.168.3.0/24 and 192.168.4.0/ 24 These five routes, and perform the following configuration on RTA, RTB and RTC respectively:
RTA]ospf 1
RTA-ospf-1]area 1
RTA-ospf-1-area-0.0.0.1]network 10.0.0.0 0.0.0.255
RTA-ospf-1-area-0.0.0.1]network 1.1.1.1 0.0.0.0
RTA-ospf-1-area-0.0.0.1]nssa
RTA-ospf-1]asbr-summar192.168.0.0 255.255.224.0 not -advertise
RTB]ospf 1
RTB-ospf-1]area 1
RTB-ospf-1-area-0.0.0.1]network 10.0.0.0 0.0.0.255
RTB-ospf-1-area-0.0.0.1]nssa default-route-advertise
RTB-ospf-1-area-0.0.0.1]area 0
RTB-ospf-1-area-0.0.0.0]network 2.2.2.2 0.0.0.0
RTB-ospf-1-area-0.0.0.0]network 20.0.0.0 0.0.0.255
RTC]ospf 1
RTC-ospf-1]area 0
RTC-ospf-1-area-0.0.0.0]network 3.3.3.3 0.0.0.0
RTC-ospf-1-area-0.0.0.0]network 20.0.0.0 0.0.0.255
Then the impossible routes in the RTC routing table are _____
RTA]ospf 1
RTA-ospf-1]area 1
RTA-ospf-1-area-0.0.0.1]network 10.0.0.0 0.0.0.255
RTA-ospf-1-area-0.0.0.1]network 1.1.1.1 0.0.0.0
RTA-ospf-1-area-0.0.0.1]nssa
RTA-ospf-1]asbr-summar192.168.0.0 255.255.224.0 not -advertise
RTB]ospf 1
RTB-ospf-1]area 1
RTB-ospf-1-area-0.0.0.1]network 10.0.0.0 0.0.0.255
RTB-ospf-1-area-0.0.0.1]nssa default-route-advertise
RTB-ospf-1-area-0.0.0.1]area 0
RTB-ospf-1-area-0.0.0.0]network 2.2.2.2 0.0.0.0
RTB-ospf-1-area-0.0.0.0]network 20.0.0.0 0.0.0.255
RTC]ospf 1
RTC-ospf-1]area 0
RTC-ospf-1-area-0.0.0.0]network 3.3.3.3 0.0.0.0
RTC-ospf-1-area-0.0.0.0]network 20.0.0.0 0.0.0.255
Then the impossible routes in the RTC routing table are _____
