Question 286

Which of the following statements are true about NSAP addresses
  • Question 287

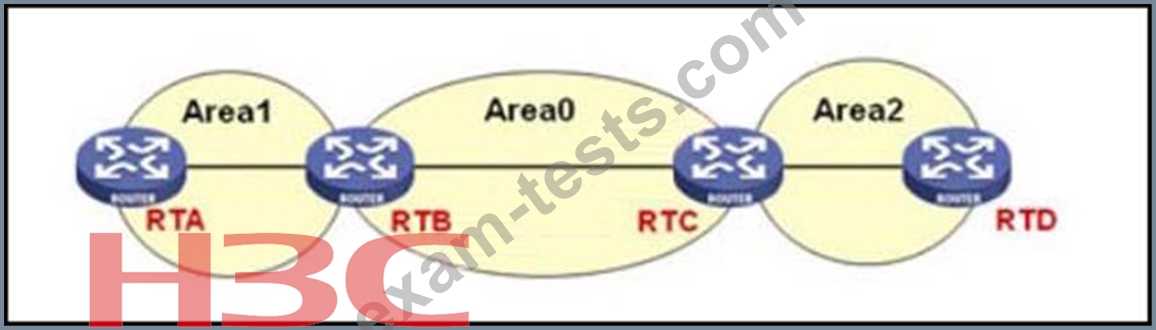

    In the topology shown in the figure, the following configurations are performed on RTA, RTB, RTC and RTD respectively:
    RTA-LoopBack0] ip address 1.1.1.1 255.255.255.255
    RTA]ospf 1
    RTA-ospf-1]area 1
    RTA-ospf-1-area-0.0.0.1]network 10.0.0.0 0.0.0.255
    RTA-ospf-1]import-route direct
    RTB-LoopBack0] ip address 2.2.2.2 255.255.255.255
    RTB]ospf 1
    RTB-ospf-1]area 1
    RTB-ospf-1-area-0.0.0.1]network 10.0.0.0 0.0.0.255
    RTB-ospf-1-area-0.0.0.1]area 0
    RTB-ospf-1-area-0.0.0.0]network 2.2.2.2 0.0.0.0
    RTB-ospf-1-area-0.0.0.0]network 20.0.0.0 0.0.0.255
    RTC-LoopBack0] ip address 3.3.3.3 255.255.255.255
    RTC]ospf 1
    RTC-ospf-1]area 0
    RTC-ospf-1-area-0.0.0.0]network 20.0.0.0 0.0.0.255
    RTC-ospf-1-area-0.0.0.0]area 2
    RTC-ospf-1-area-0.0.0.2]nssa default-route-advertise
    RTC-ospf-1-area-0.0.0.2]network 30.0.0.0 0.0.0.255
    RTC-ospf-1-area-0.0.0.2]network 3.3.3.3 0.0.0.0
    RTD-LoopBack0] ip address 4.4.4.4 255.255.255.25
    RTD]ospf 1
    RTD-ospf-1]area 2
    RTD-ospf-1-area-0.0.0.2]network 30.0.0.0 0.0.0.255
    RTD-ospf-1-area-0.0.0.2]nssa
    RTD-ospf-1]import-route direct
    Which of the following routes may exist in the RTD routing table _______.
  • Question 288

    L is a network design engineer. In a certain network project, in order to reduce the complexity, the small L design network adopts a two-layer architecture, and the functions of the access layer are incorporated into the aggregation layer. In the design, considering that the core layer needs to have a fast convergence function, the aggregation layer performs route aggregation to reduce the number of routes. Which of the following routing protocols should L should use as the core layer routing protocol? (Choose one or more)
  • Question 289

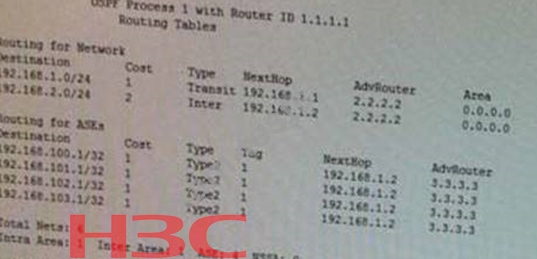

    After executing the display ospt routing command on the MSR router RTA, the router output is as follows

    Judging from the above output
  • Question 290

    P router RTA runs OSPF and BGP routing protocols at the same time. If an OSPF route is imported into BGP in network mode, the ORIGIN attribute value of the route in the BGP routing table is ____.
