Free Access Huawei.H12-811.v2022-12-19.q169 Practice Test (Page 10)

Question 41

When the Trunk port send the data frame, how to deal with?

A.When the VLAN ID is different from the PVID of the port, the data frame is dropped

B.When the VLAN ID is different from the PVID of the port, strip off the TAG and forward

C.When the VLAN ID is the same as the PVID of the port and is a VLAN ID allowed by the port, remove the Tag and send the message

D.When the VLAN ID is different from the PVID of the port, replace it with PVID forwarding

Question 42

The configuration information of a certain port of the switch is shown in the figure, then this port carries VLAN TAG when sending data frames carrying which VLAN?
interface GigabitEtherneto/0/1
port hybrid tagged vlan 2 to 3 100
port hybrid untagged vlan 4 6
#

A.2.3.100

B.2.3.4.6,100

C.1,2.3,100

D.1,2.3.4.6,100

Question 43

The two switches shown below have both enabled the STP protocol. An engineer made the following conclusions on this network. Which conclusions do you think are correct? (Multiple choice)

A.The G0/0/3 port of SWA is stable in Forwarding state

B.G0/0/2 port of SWB is stable in Forwarding state

C.The G0/0/2 port of SWA is stable in Forwarding state

D.Both ports of SWB are designated ports

E.Both ports of SWA are designated ports

Question 44

Which of the following functions does the LCP protocol in the PPP protocol support?

A.Detect link loops

B.Negotiate the maximum receiving unit MRU

C.Negotiate network layer address

D.Negotiate authentication agreement

Question 45

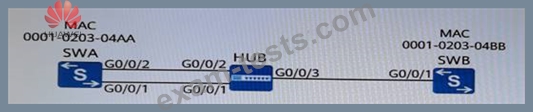

As shown in the figure, the two switches use the default parameters to run STP, the configuration command STP root primary is used on switch A, and the configuration command STP priority 0 is used on switch B.
Then which port will be blocked?

A.G0/0/1 of switch A

B.HUB's G0/0/3

C.G0/0/1 of switch B

D.G0/0/2 of switch A
