D, check that the network is running normally as a standard

Comprehensive and Detailed In-Depth Explanation:

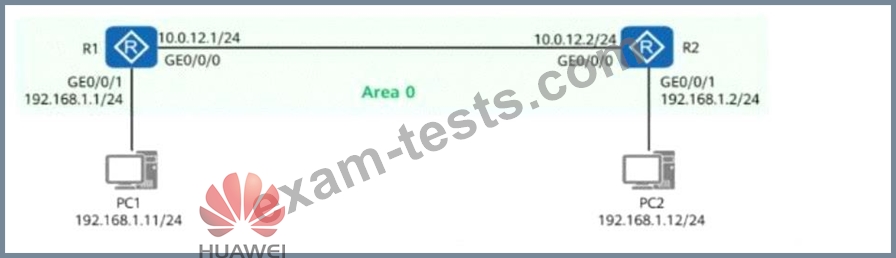

* Understanding the network connectivity:
* R1 and R2 are connected through 10.0.12.0/24 and running OSPF in Area 0.
* PC1 (192.168.1.11/24) is connected to R1, and PC2 (192.168.1.12/24) is connected to R2.
* Analyzing each option:
* Option A: "R2 cannot ping 10.0.12.1." # Incorrect
* R2 is directly connected to 10.0.12.1/24 (R1) on GE0/0/0, so it can ping this IP without any routing issues.
* Option B: "PC1 and PC2 cannot ping each other." # Correct
* OSPF is only running between R1 and R2. There is no indication that R1 and R2 are redistributing connected routes (192.168.1.0/24 and 192.168.1.0/24) into OSPF.
* As a result, R1 does not know how to reach 192.168.1.12, and R2 does not know how to reach 192.168.1.11, making communication between PC1 and PC2 impossible.
* Option C: "R1 cannot ping 192.168.1.2." # Incorrect
* 192.168.1.2 is directly connected to R2, and if R1 can reach R2 through OSPF, then R1 should be able to ping 192.168.1.2.
* Option D: "R1 cannot ping 192.168.1.12." # Correct
* 192.168.1.12 is connected to R2, but if R2 does not advertise this network to R1, R1 has no route to reach it.
* Since PC1 (192.168.1.11) and PC2 (192.168.1.12) are on different subnets, and there's no redistribution, R1 cannot reach PC2's IP.
Key Takeaways and Fix Recommendations:
* To allow PC1 and PC2 to communicate, R1 and R2 must advertise their directly connected networks (192.168.1.0/24) in OSPF using the network command or by redistributing connected routes into OSPF.
* Command example:
makefile
CopyEdit
R1:
router ospf 1
network 192.168.1.0 0.0.0.255 area 0
R2:
router ospf 1
network 192.168.1.0 0.0.0.255 area 0
* This would allow R1 to learn about PC2's network and R2 to learn about PC1's network, enabling communication.
HCIP-Datacom-Advanced Routing & Switching Technology References:
* HCIP-Datacom Official Certification Guide, Chapter on OSPF Network Design and Troubleshooting.
* Huawei Datacom Training Materials, Section on OSPF Inter-Area and External Route Advertisements.
* Huawei Datacom Configuration Guide, Command Reference for OSPF network advertisement and route redistribution.

Comprehensive and Detailed In-Depth Explanation:

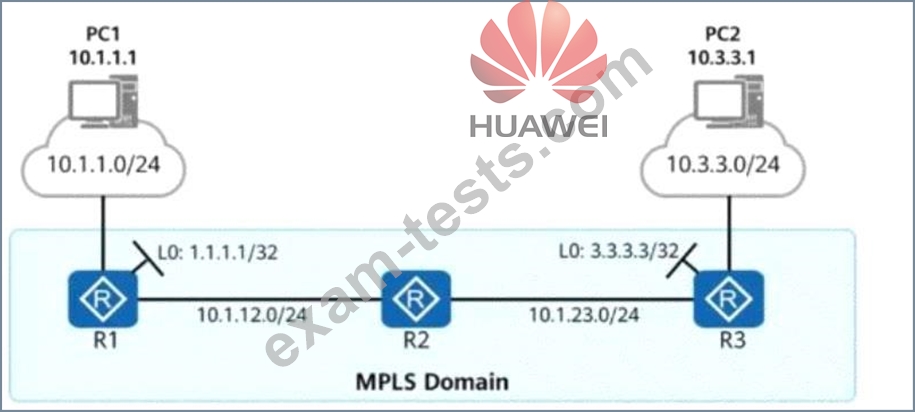

This question is based on MPLS (Multiprotocol Label Switching) and its interaction with routing protocols
. The goal is to ensure PC1 (10.1.1.1) can communicate with PC2 (10.3.3.1) over MPLS. Let's analyze each option carefully.
1## Understanding MPLS Routing Requirements
To forward traffic using MPLS and LDP, we need:
* An IGP (Interior Gateway Protocol) like OSPF or IS-IS to advertise network reachability.
* Loopback interfaces advertised in OSPF to establish LDP neighbor relationships.
* Consistent MPLS LDP enablement on all links in the MPLS domain.
* End-to-end IP reachability between loopbacks (since LDP uses the loopback for label distribution).
2## Option A (Correct Answer) Analysis
This configuration enables OSPF on all routers (R1, R2, and R3) across the MPLS domain:
# All networks are advertised in OSPF area 0, ensuring IP reachability.# Loopback interfaces (1.1.1.1,
2.2.2.2, 3.3.3.3) are included, which is required for MPLS LDP peer establishment.# PC1's network (10.1.1.0/24) and PC2's network (10.3.3.0/24) are properly advertised, ensuring end-to-end connectivity.# R1, R2, and R3 have OSPF neighbor relationships, meaning LDP can use OSPF routes for label switching.
# Conclusion: Option A meets all MPLS forwarding requirements and is the correct answer.
3## Why Other Options Are Incorrect
# Option B (Incorrect)
* Uses BGP instead of OSPF, which is not optimal for MPLS forwarding in a simple MPLS domain.
* LDP requires an IGP like OSPF or IS-IS to work efficiently.
* BGP alone does not establish LDP label bindings between R1, R2, and R3.
# Option C (Incorrect)
* Mixes OSPF and BGP, causing routing inconsistency.
* Uses ip ip-prefix and recursive lookup, which is unnecessary in a standard MPLS domain.
* BGP does not distribute labels dynamically like an IGP with LDP.
# Option D (Incorrect)
* R1 does not advertise the 10.1.1.0/24 network, meaning PC1's network is not reachable.
* R3 does not advertise the 10.3.3.0/24 network, meaning PC2's network is not reachable.
* Missing essential routing entries for full end-to-end reachability.
References:
# HCIP-Datacom Advanced Routing & Switching Technology# Huawei Official MPLS and LDP Configuration Guide# Huawei Enterprise Networking Documentation
