Online Access Free HPE2-Z38 Practice Test

A college is implementing HP Network Protector SDN Application to mitigate network attacks.
To conserve bandwidth, the college wants to prevent students from accessing social media web sites while the students are connected to the college network. However, the college wants to give professors more flexibility, while still protecting the network.
Which configuration meets these requirements?

• A.Place all professors in one VLAN and exclude that VLAN from the flows defined for HP Network Protector SDN Application.
• B.Create a customized greylistfor professors.
• C.Add the professors as exceptions to the college's blacklist.
• D.Create different groups for students and professors, and define a customized blacklist for the student group.

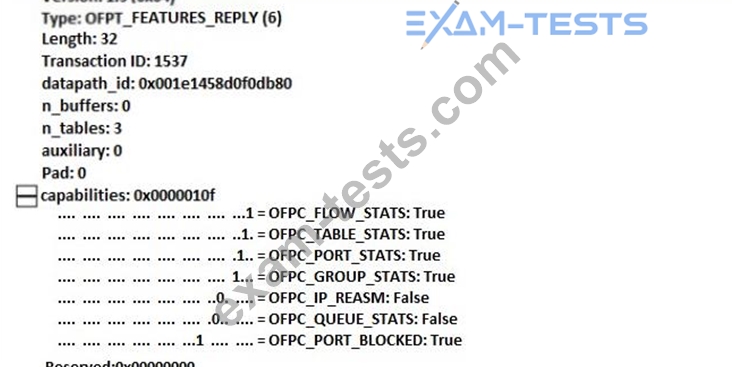

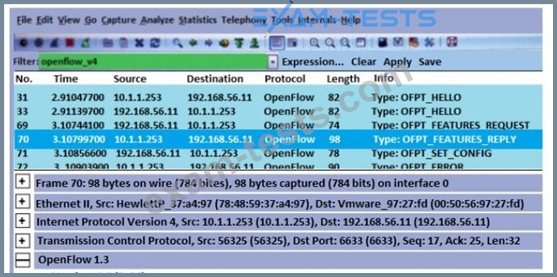

Refer to Exhibit:


What can you infer about the device with the IP address 10.1.1.253?

• A.it is acknowledging that it supports the minimum feature set the controller requires.
• B.it is using OpenFlow 1.3, indicating it has already negotiated the OpenFlow version with the controller
• C.it supports auxiliary 0, which indicates it supports an advanced OpenFlow feature set.
• D.it has a port that has been blocked by OpenFlow.

Why would an architect require an application to be written as an internal application rather than as an external application?

• A.faster event-driven responses
• B.lower cost of development
• C.increased program language options
• D.greater flexibility of platform choices

A company has an HP Network Visualizer SDN Application solution. The network administrator wants to send captured traffic to a server that is running its own local application for receiving that traffic How should the administrator configure the HP Network
Visualizer SDN Application to send the traffic to the server?

• A.Specify the server as the destination IP address for all user capture sessions.
• B.Add the server as an unmanaged capture destination.
• C.Specify the server as the destination IP address for all custom capture sessions
• D.Add the server as a managed capture destination.

A network administrator is examining the OpenFlow Topology page in the HP VAN SDN
Controller Web browser interface. What does a multi-hop link between two switches indicate?

• A.These two OpenFlow switches connect through one or more non-OpenFlow-enabled switches.
• B.These two OpenFlow switches connect on ports that are in different subnets.
• C.These two OpenFlow switches connect over a Layer 3 WAN network.
• D.These two OpenFlow switches connect on ports that do not have OpenFlow enabled on them.
