Online Access Free HPE6-A46 Practice Test

What is a reason to implement port security on an AOS-Switch?

• A.to filter traffic at the edge, based on multiple criteria in the MAC header
• B.to simplify provisioning for devices such as IP phones or printers
• C.to control management access to the switch CLI based on device, as well as user credentials
• D.to enhance the security of an 802.1X solution

Which benefit is provided by MD5 authentication for BGP?

• A.It validates that BGP messages arrive from an authorized device.
• B.It protects BGP routing information from eavesdroppers.
• C.It enables users to authenticate to a server across BGP AS boundaries.
• D.It verifies that received BGP routes have valid next hop IP addresses.

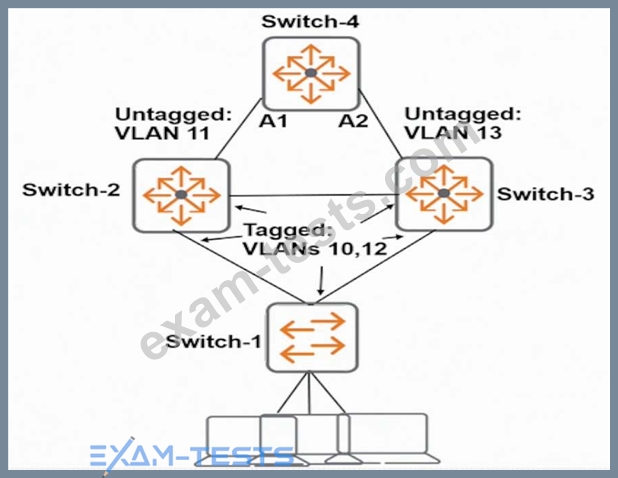

Refer to the exhibits.
Exhibit 1

Exhibit 2

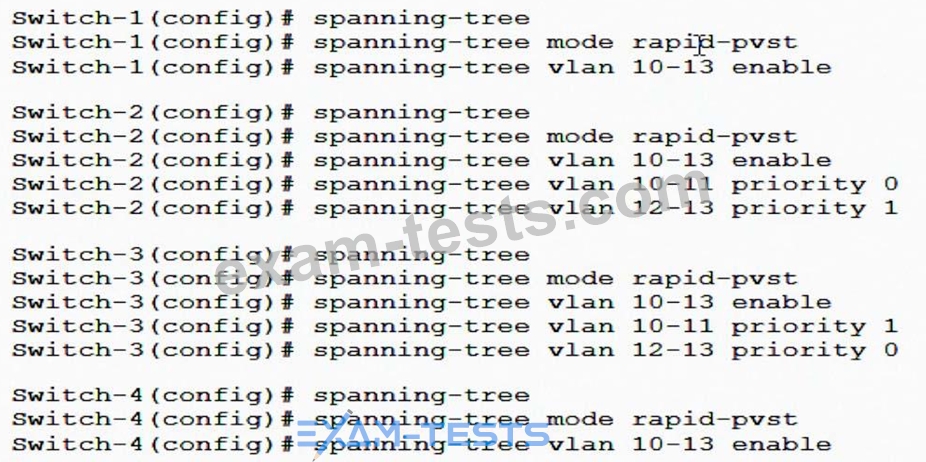

The network administrator enters the commands shown in Exhibit 2. What is the spanning tree status on A1 and A2?

• A.A1 blocks traffic, and A2 forwards traffic.
• B.A1 forwards traffic, and A2 blocks traffic.
• C.Both A1 and A2 forward traffic.
• D.Both A1 and A2 block traffic.

AOS-Switches authenticate guests to ClearPass with captive portal. An administrator notices that some guests are unable to reach the captive portal page. What will resolve this issue?

• A.Permit DNS on the ClearPass Portal
• B.Permit Allow All MAC-Auth on the ClearPass Portal.
• C.Permit HTTP or HTTPS on the ClearPass Portal.
• D.Permit DHCP on the ClearPass Portal.

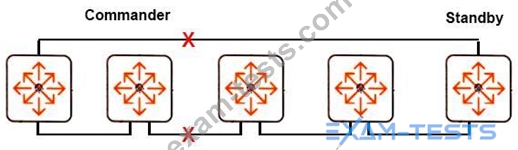

Refer to the exhibit.

An administrator created a backplane stack with the plug-and-play method, and did not alter the default backplane stacking settings. Later, two backplane stacking links failed, as shown in the exhibit.
What happens to the backplane stack after the failures?

• A.The standby becomes the commander of its fragment, which remains active. The fragment with the commander becomes inactive.
• B.The fragment that contains the commander operates at Layer 2 and Layer 3, and the other fragment operates at Layer 2 only.
• C.The standby becomes the commander of its fragment. Both fragments remain active and operate at both Layer 2 and Layer 3.
• D.The fragment that contains the commander remains active, and the fragment with the standby member is disabled.
