Online Access Free HPE6-A70 Practice Test

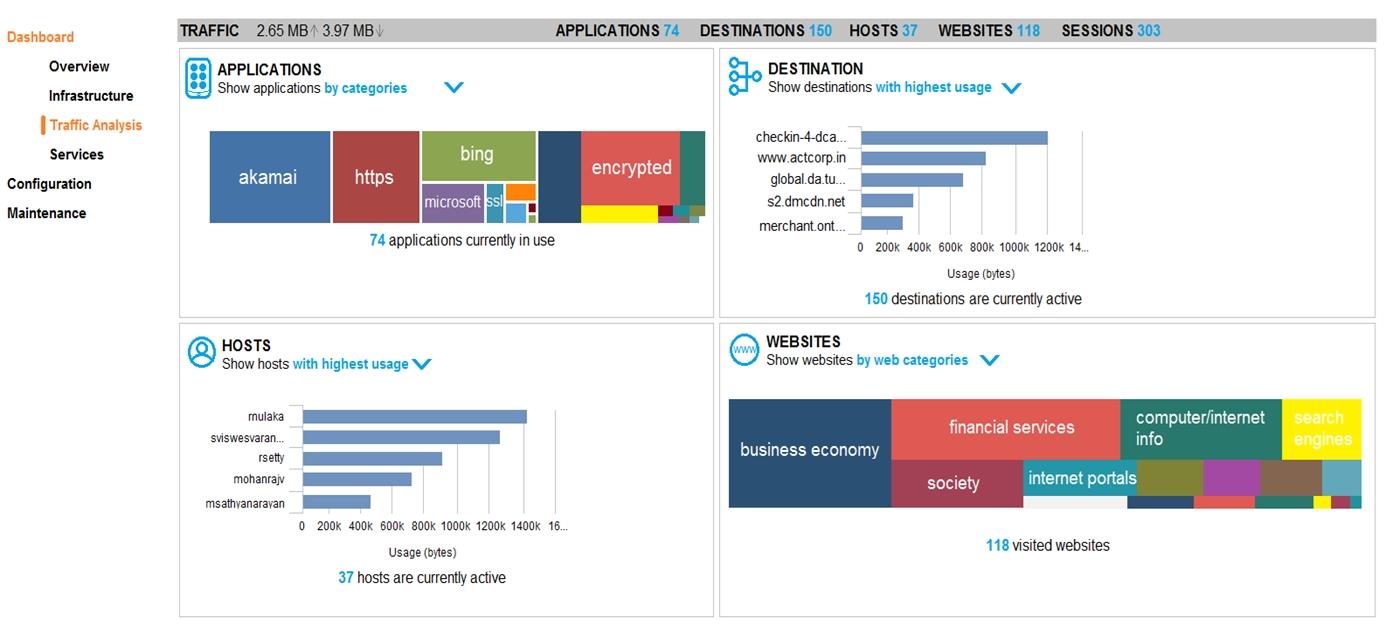

What is one difference between how a network administrator can monitor clients in the Mobility (MM) interface and in the AirWave Management Platform?

• A.MM shows user and role information associated with clients, while AirWave does not.
• B.AirWave shows the current signal level for the client connection, while MM does not show RF statistics.
• C.AirWave shows trends for the past several minutes, while MM shows longer trends.
• D.AirWave combines information from more sources, such as RADIUS authenticating servers and APs.

What are two criteria that distinguish different Aruba Mobility Controller (MC) models from each other?

• A.number of supported users and ability to support 802.11ac APs or not
• B.number of supported APs and ability to support 802.11ac APs or not
• C.firewall speed and ability to act as a standalone controller or not
• D.number of supported users and firewall throughput

Refer to the exhibit.

The alias in the rule shown in the exhibit is network 10.1.1.0/24.
A wireless client is assigned IP address 10.1.2.10/24 and the "admins" role. The wireless client at 10.1.2.10 attempts to initiate a Web session with a server at 10.1.1.2. A wired client at 10.1.1.3 attempts to initiate an SSH session with the wireless client at 10.1.2.10.
How does the Aruba firewall handle these attempts?

• A.The firewall permits the traffic from the wireless client, but drops the return traffic from the server. The firewall drops the traffic from the wireless client.
• B.The firewall drops the traffic from the wireless client. The firewall drops the traffic from the wired client.
• C.The firewall permits the traffic from the wireless client and also permits the return traffic from the server. The firewall drops the traffic from the wired client.
• D.The firewall permits the traffic from the wireless client and also permits the return traffic from the server. The firewall permits the traffic from the wired client and also permits the return traffic from the wireless client.

A company has an Aruba solution and wants to provide guests with wireless access. The company wants to assign guests IP addresses in subnets that exist only within the Aruba solution.
Which feature should network administrators set up so guests can send traffic on the Internet without changes to the company routing solution?

• A.Set up a dynamic default gateway on the Mobility Controllers (MCs).
• B.Create destination NAT rules for the guest role.
• C.Enable NAT on the VLAN assigned to the guest WLAN.
• D.Enable policy-based routing for the guest traffic.

A company deploys an Aruba wireless solution for the first time. In which deployment is clustering supported?

• A.deployment as a standalone VMC
• B.deployment in master-local mode
• C.deployment as Mobility Masters (MMs)
• D.deployment in 7000 Series standalone mode
