Online Access Free HPE6-A72 Practice Test

What is Deep Packet Inspection?

• A.a firewall process of examining the packet header all the way to Layer 7 in order to determine if the packet should be permitted or denied
• B.a concept that applies to firewalls, when examining packets only up through Layer 4
• C.a machine learning method of packet inspection for the purpose of choosing which dynamic routing protocol to automatically assign
• D.a function of Policy Based Routing that examines the entire IPv4 header to forward traffic based on factors other than destination address

What is an available command on an Aruba AOS-CX switch that would back up the secondary image to a secure remote repository?

• A.copy secondary sftp://[email protected]/GL.10.04.0003.swi
• B.copy secondary tftp://[email protected]/GL.10.04.0003.swi
• C.backup secondary sftp://[email protected]/GL.10.04.0003.swi
• D.copy sftp://[email protected]/GL.10.04.0003.swi secondary

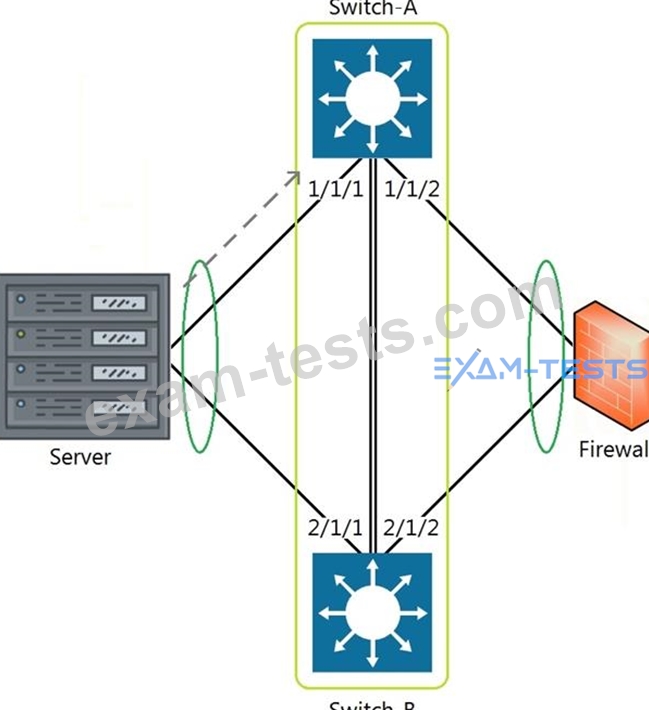

Refer to the exhibit.

The above scenario shows a packet from the Server destined for the Firewall. Switch-A and Switch-B are bundled as VSF stack. The LAG between the VSF stack and the firewall indicates a hash function to forward the packet on port 2/1/2.
Which statement is true regarding how Switch-A will forward the packet?

• A.Switch-A will forward the packet along the VSF link to Switch-B so that it will egress on port 2/1/2 per the hash function.
• B.Switch-A will drop the packet. Multi-Chassis lag to multi-chassis lag is not a supported feature of VSF.
• C.Switch-A will encapsulate the packet using GRE to forward to Switch-B in order for the packet to egress on port 2/1/2 per the hash function.
• D.Switch-A will forward the packet on port 1/1/2. VSF will override the typical LAG hash function used for the physical interface selection.

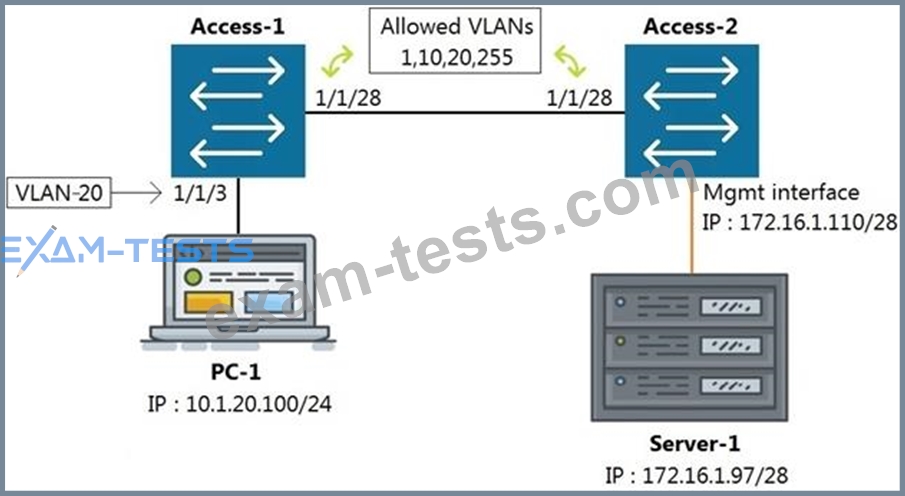

Refer to the exhibit.

All switches are running Aruba OS-CX. While working in the terminal of Access-2, you are unable to reach Server-1 using SSH.
What is the correct command to ping Server-1 from Access-2 to test reachability?

• A.Access-2# ping 172.16.1.97
• B.Access-2# ping6 172.16.1.97 vrf mgmt.
• C.Access-2# ping 172.16.1.97 vrf mgmt
• D.Access-2# ping 172.16.1.97 vrf default

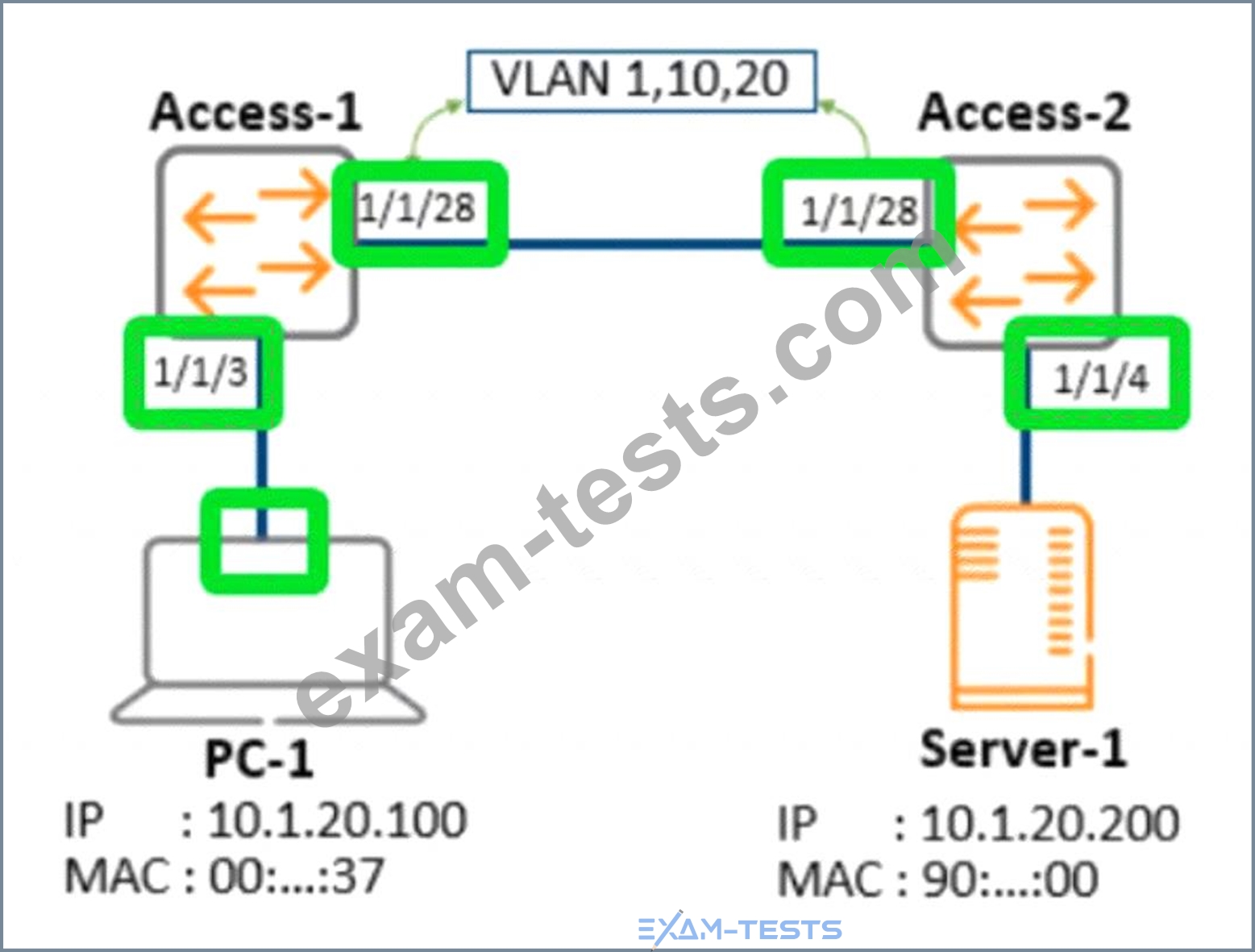

Review the exhibit.
Which ports should be configured as access ports? Click in the green box to make your selection. (Select two.)

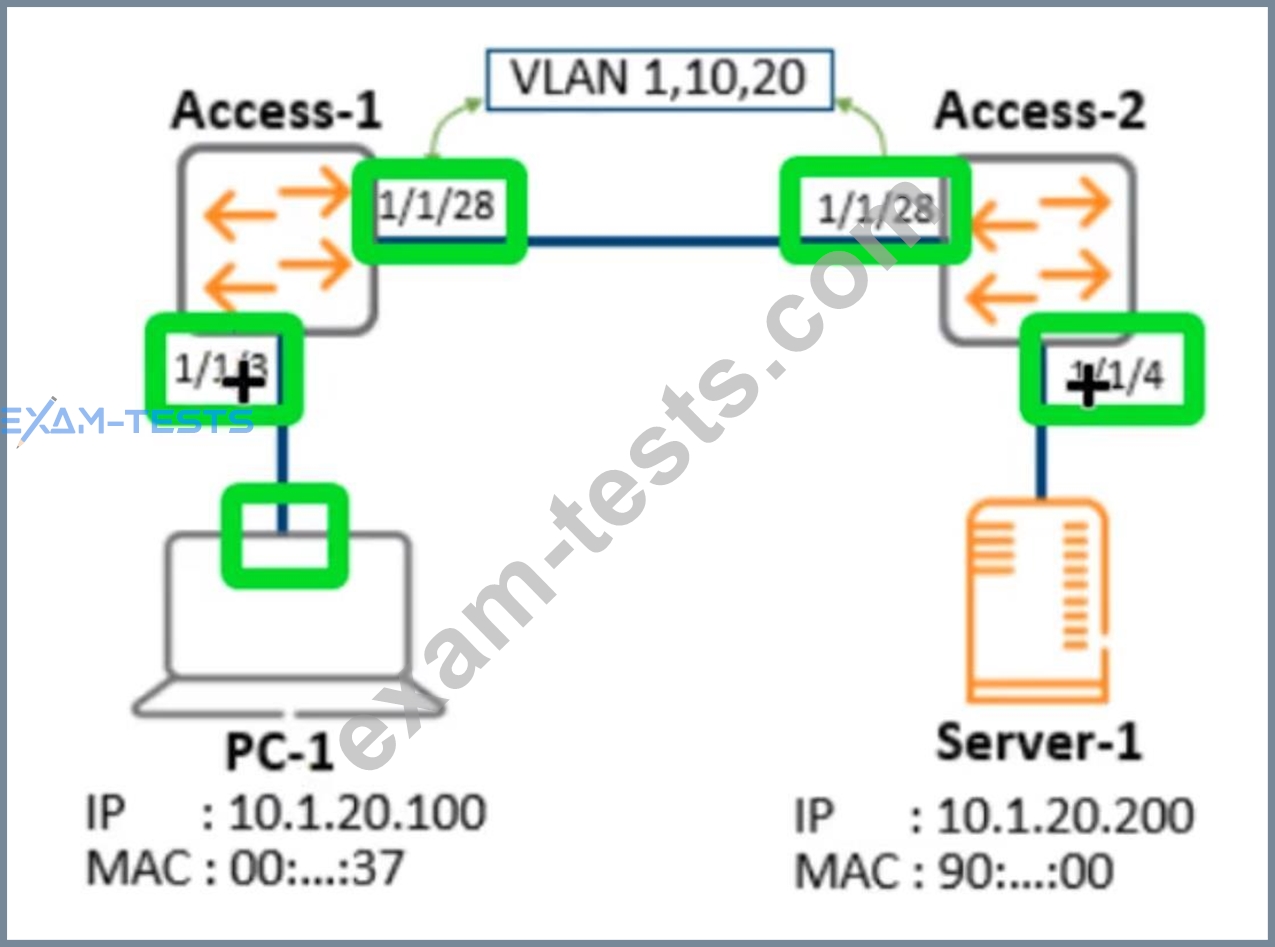

Correct Answer:

Explanation:
A diagram of a computer network Description automatically generated
