Question 11

Refer to the exhibit.

The above output is the result of issuing the command show system resource-utilization. What command should be used to enable terminal output line by line or page by page?
  • Question 12

    ServiceOS login: admin
    SVOS> password
    Enter password: ********
    Confirm password: ********
    The login password to access an Aruba AOS-CX was lost. After connecting to the switch console port, a reboot is performed and the Service OS console is accessed as shown above.
    What is the default password that is required for the admin account while under the Service OS console?
  • Question 13

    Interface 1/1/1 is up
    Admin state is up
    Link transitions: 1
    Description: TO_PC-1
    Hardware: Ethernet, MAC Address: 00:11:22:33:44:55
    MTU 1500
    Type 1GbT
    Full-duplex
    qos trust none
    Speed 1000 Mb/s
    Auto-negotiation is on
    Flow-control: off
    Error-control: off
    MDI mode: MDIX
    VLAN Mode: access
    Access VLAN: 1111
    Which command will produce the above output?
  • Question 14

    Refer to the exhibit.

    All four switches in the diagram have been configured with the region name "Aruba1".
    What two other MSTP configurations must match for switches within the same MST region? (Choose two.)
  • Question 15

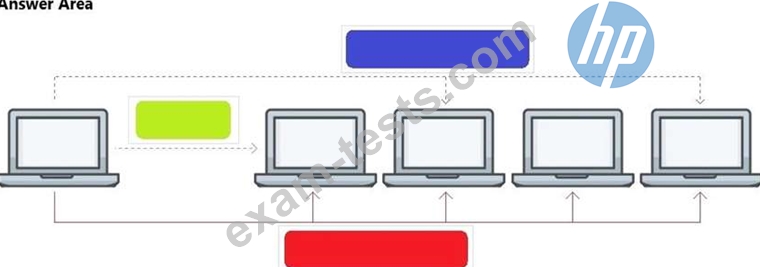

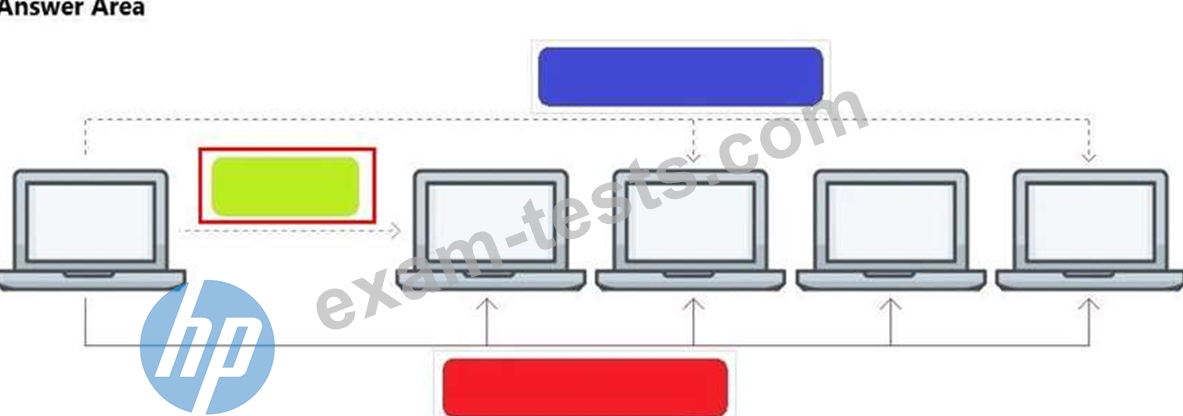

    Click on the colored box that corresponds with the line that best represents Unicast traffic flow.
