Online Access Free HPE6-A73 Practice Test

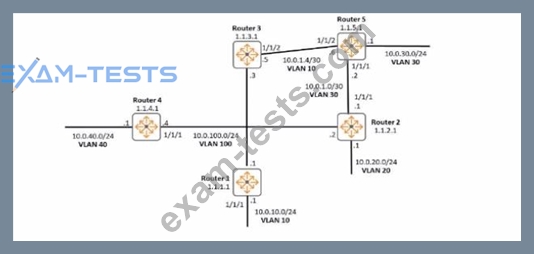

Examine the network exhibit:

Examine Rome r4"s partial OSPF configuration: router OSPF 1
Area 0
exit interface vlan 100
ip ospf area 0
exit interface vlan 40
ip ospf area 0
exit interface 1/1/1
vlan access 100
mtu9000
Ip ospt hello-Interval 1
Ip ospt dead-Interval 4
ip ospf authentication simple-text
ip ospf authentication-key key123
When executing the "show ip ospf neighbors" command, Router 4 is in a FULL state with Router 3 and Router 2, but a 2-WAY state with Route3. What is causing the 2-WAY state with Router 1?

• A.The timers on Interface 1/1/1 Is mismatched with Router i's VLAN TOO interlace.
• B.Router 1 and Route1 3 have a mismatched authentication Key.
• C.The MTU size on interface 1/1/1 is mismatched with Router Vs VLAN 100 interface.

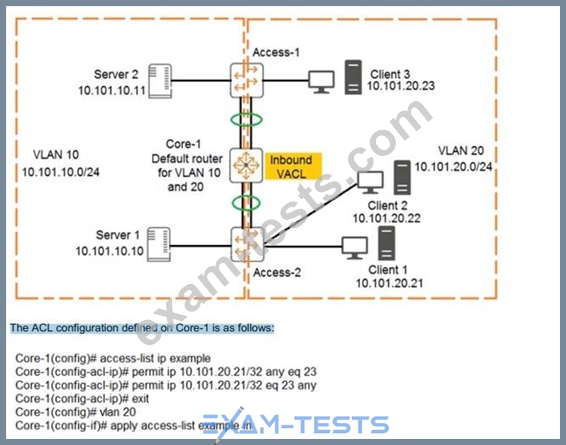

Examine the network exhibit:

The ACL configuration defined on Core-1 is as follows:
If telnet was being used, which device connection would be permitted and functional in both directions?
(Choose two.)

• A.Server 2 to Client 2
• B.Server 1 to Client 1
• C.Client 3 to Client 2
• D.Client 1 to Client 2
• E.Client 1 to Client 3

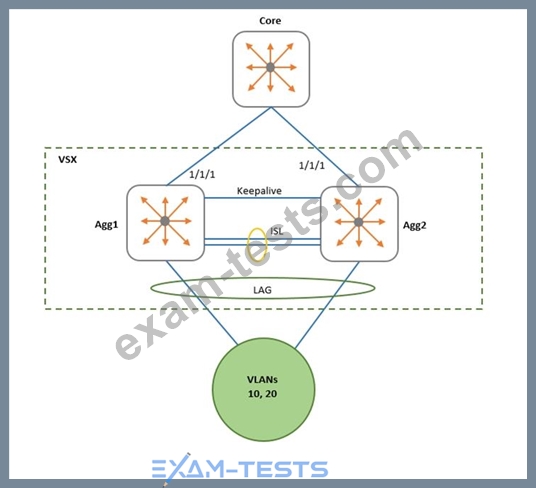

Examine the network exhibit.

A network administrator is implementing OSPF on a VSX pair of aggregation switches: Agg1 and Agg2. VLANs 10 and 20 are connected to layer-2 access switches. Agg-1 and Agg-2 are configured as the default gateway for VLANs 10 and 20, with active gateway enabled.
What is the best practice for configuring OSPF on the aggregation switches and their connection to the Core switch?

• A.Define a layer-2 VSX LAG associated with a layer-3 VLAN interface. Enable active gateway for the Layer-3 VLAN.
• B.Define separate layer-3 VLAN interfaces between the aggregation and core switches. Enable active forwarding for the Layer-3 VLAN.
• C.Define separate layer-3 VLAN interfaces between the aggregation and core switches. Enable active gateway for the Layer-3 VLAN.
• D.Define a layer-2 VSX LAG associated with a layer-3 VLAN interface. Enable active forwarding for the Layer-3 VLAN.

An administrator wants to leverage the Network Analysis Engine (NAE) feature on AOS-CX switches to perform root cause analysis and to assist in quickly identifying problems. Which two AOS-CX databases does the administrator have access to when implementing scripts? (Select two.)

• A.API
• B.Audit
• C.VSX
• D.Time-series
• E.Configuration

A company uses NetEdit to manage a network of 700 AOS-CX switches and approximately 1,000 other SNMP-capable devices.
Which management solution should the company use to monitor all the devices, as well as see a topology picture of how all the devices are connected together?

• A.Aruba AirWave
• B.Network Analysis Engine (NAE)
• C.NetEdit
• D.Aruba Activate
