Examine the network exhibit:

The ACL configuration defined on Core-1 is as follows:
If telnet was being used, which device connection would be permitted and functional in both directions?
(Choose two.)

A network administrator is implementing NAE on AOS-CX switches. When attempting to create an agent on a particular switch, the agent appears in the NAE Agents panel with a red triangle error symbol and a status of
"Unknown".
What is the cause of this issue?

An administrator creates an ACL rulewith both the "count" and "log';option enabled What is correct about the action takenby an AOS-CX switch when there is a match on this rule?

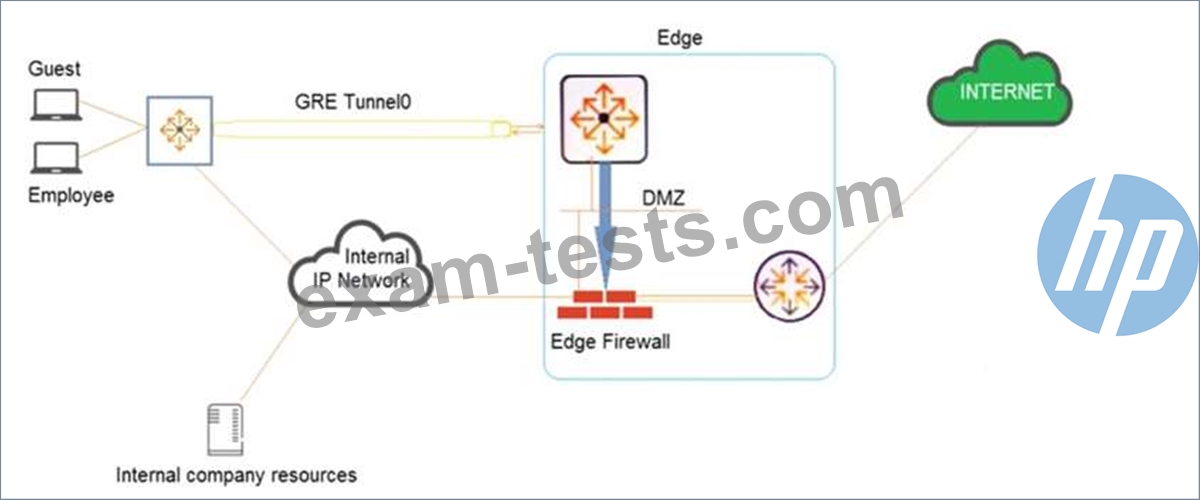

Examine the network exhibit.

A company has a guest implementation for wireless and wired access. Wireless access is implemented through a third-party vendor. The company is concerned about wired guest traffic traversing the same network as the employee traffic. The network administrator has established a GRE tunnel between AOS-CX switches where guests are connected to a routing switch in the DMZ.
Which feature should the administrator implement to ensure that the guest traffic is tunneled to the DMZ while the employee traffic is forwarded using OSPF?

A company requires access by all users guests, and employees to be authenticated Employees will be authenticated using 802 1X. whereas guests will be authenticated using captive portal Which type of authentication must be configured on an AOS-CX switch ports where both guests and employees connect?
