When would you bond multiple 20MHz wide 802.11 channels?

• A.To provision highly available AP groups
• B.To decrease the Signal to Noise Ratio (SNR)
• C.To increase throughput between the client and AP
• D.To utilize high gain omni-directional antennas

You need to troubleshoot an Aruba CX 6300F switch that fails to boot correctly. Select the option that allows you to access the switch and see the boot options available for OS images and ServiceOS.

• A.Omgmt port using SSH
• B.USB-A console port
• C.RJ-45 console port
• D.USB-C console port

Which statement is true for a device with a MAC address of B8-31-B5-80-41-4F?

• A.The device OUI is B8-31-B5 and the device serial number is MD5 hash is 80-41-4F
• B.The device OUI is B8-31 and the device NIC serial number is B5-80-41-4F
• C.The device OUI is 80-41-4F and the device NIC serial number is B8-31-B5
• D.The device OUI is B8-31-B5 and the device NIC serial number is 80-41-4F

What does the status of "ALFOE" mean when checking LACP with "show lacp interfaces'"?

• A.The interface on the local switch is configured as static-LAG
• B.LACP is in a synchronizing process
• C.LACP is working fine with no problems
• D.LACP is not configured on the peer side

Match the phase of message processing with the Open Systems interconnection (OSl) layer.

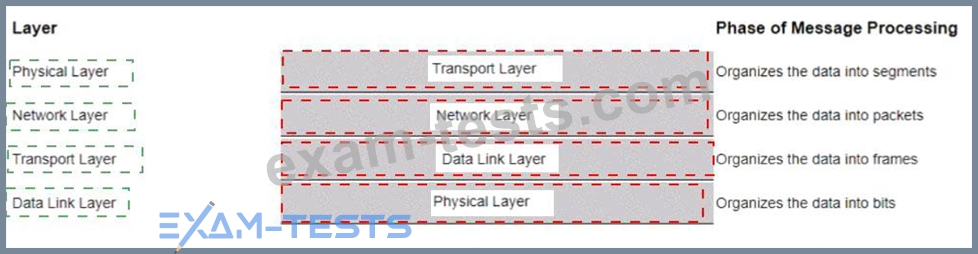

Correct Answer:

Explanation:
Layer: 1) Physical layer Phase of Message Processing: d) Organize the data into bits Layer: 2) Data Link layer Phase of Message Processing: c) Organize the data into frames Layer: 3) Network layer Phase of Message Processing: b) Organize the data into packets Layer: 4) Transport layer Phase of Message Processing: a) Organize the data into segments The OSI model divides the networking process into seven layers, each representing a different step of the transmission chain. Each layer has its own function and is responsible for well-defined tasks. User data passes sequentially from the highest layer down through the lower layers until the device transmits it externally. The lowest layer, the physical layer, converts the data into bits that can be sent over a physical medium. The second layer, the data link layer, organizes the bits into frames that can be transmitted over a link between two nodes. The third layer, the network layer, organizes the frames into packets that can be routed across a network of nodes. The fourth layer, the transport layer, organizes the packets into segments that can provide reliable and error-free communication between two end points12. References: 1 https://www.linode.com/docs
/guides/introduction-to-osi-networking-model/ 2 https://en.wikipedia.org/wiki/OSI_model
