* Client IP address: This factor can be used to determine if the client is on the same VLAN as the AP or not. If the client IP address is on the same VLAN as the AP, then the client traffic is bridged locally. If the client IP address is on a different VLAN than the AP, then the client traffic is forwarded to the gateway cluster through a secure tunnel 12.
* Client VLAN: This factor can be used to determine if the client belongs to a specific VLAN or not. If the client belongs to a specific VLAN, then the client traffic is forwarded to that VLAN based on its IP address and security profile 12.

The reason is that the Inter-Switch Link Protocol (ISLP) is a protocol that enables VSX stack join and synchronization between two VSX peer switches. ISLP uses a hello interval to exchange control messages between the switches.
The hello interval is a parameter that specifies the time interval between sending hello messages. The default value of the hello interval is 1 second. The hello interval can be configured from 1 second to 10 seconds.
https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/index.html

The correct answer is C. Create a new SVI and use attach command.
To create a new SVI for a separate routing table, you need to use the attach command to associate the SVI with a VRF (Virtual Routing and Forwarding) instance. A VRF is a logical entity that allows multiple routing tables to coexist on the same switch. Each VRF has its own set of interfaces, routing protocols, and routes that are isolated from other VRFs.
According to the AOS-CX Virtual Switching Framework (VSF) Guide1, one of the steps to configure VRF- aware VSF is:
Configure the VRFs on each member switch and assign the SVIs to the respective VRFs using the attach command.
For example:
switch(config)# vrf red
switch(config-vrf)# exit
switch(config)# interface vlan 10
switch(config-if-vlan)# ip address 10.1.1.1/24
switch(config-if-vlan)# attach vrf red
The above commands create a VRF named red and assign VLAN 10 SVI to it. The SVI has an IP address of 10.1.1.1/24.
The other options are incorrect because:
A) You cannot attach a VRF to a VLAN directly. You need to create an SVI for the VLAN and then attach the VRF to the SVI.
B) You cannot create a new routing table manually. You need to create a VRF and then use routing protocols or static routes to populate the routing table for the VRF.
D) You cannot attach a routing table to a VLAN directly. You need to create an SVI for the VLAN and then attach a VRF that has a routing table associated with it.

The reason is that the linkup delay timer is a feature that delays bringing downstream VSX links up, following a VSX device reboot or an ISL flap. The linkup delay timer has two phases: initial synchronization phase and link-up delay phase.
The initial synchronization phase is the download phase where the rebooted node learns all the LACP+MAC+ARP+STP database entries from its VSX peer through ISLP. The initial synchronization timer, which is not configurable, is the required time to download the database information from the peer.
The link-up delay phase is the duration for installing the downloaded entries to the ASIC, establishing router adjacencies with core nodes and learning upstream routes. The link-up delay timer default value is 180 seconds. Depending on the network size, ARP/routing tables size, you might be required to set the timer to a higher value (maximum 600 seconds).
When both VSX devices reboot, the link-up delay timer is not used.

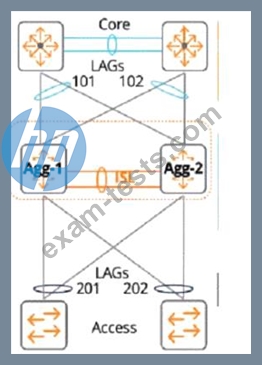

Therefore, by configuring the linkup delay timer to include LAGs 101 and 102, which are part of the same VSX device as LAG 201, you can ensure that both devices have enough time to synchronize their databases and form routing adjacencies before bringing down their downstream links.
