Free Access Juniper.JN0-349.v2023-04-25.q110 Practice Test (Page 13)

Question 56

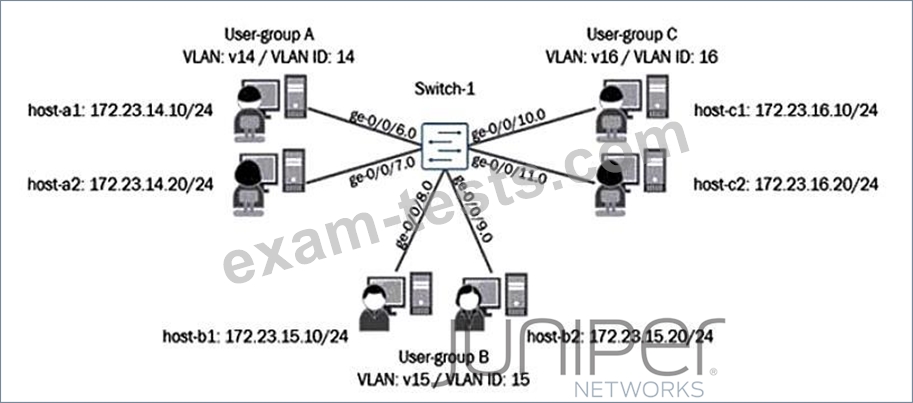

Exhibit.

Referring to the exhibit, all users connected to the same VLAN can communicate with each other, but not with users on other VLANs in this network.
What must be configured to enable communication between the VLANs?

A.A separate routing device is required to forward traffic between the configured VLANs.

B.A logical IRB interface must be created and assigned to each VLAN.

C.The switch ports to which the users are connected should be configured as trunk ports.

D.A single logical IRB interface must be created and assigned to all three VLANs

Question 57

You have a VLAN with two devices acting as a single gateway for hosts.
In this scenario, which protocol would provide a single gateway IP for the hosts?

A.BGP

B.VRRP

C.IS-IS

D.OSPF

Question 58

Which two OSPF header fields must match to form an adjacency over a broadcast connection? (Choose two.)

A.Router priority

B.Options

C.Hello interval

D.neighbor

Question 59

Click the Exhibit button.

Which type of route is shown in the exhibit?

A.aggregate

B.generated

C.static

D.direct

Question 60

You must implement filter-based forwarding. You need to direct traffic from 192.168.1.0/24 through vr1 and traffic from 10.210.0.128/26 through vr2.
Which configuration is correct in this scenario?

A.firewall {
family inet {
filter fbf-filter1 {
term match-192-subnet {
from {
source-address {
192.168.0.0/24;
}
}
then {
routing-instance vr1;
}
}
term match-10-subnet {
from {
source-address {
10.210.0.128/27;
}
}
then {
routing-instance vr2;
}
}
}
}
}

B.firewall {
family inet {
filter fbf-filter1 {
term match-192-subnet {
from {
source-address {
192.168.1.0/26;
}
}
then {
routing-instance vr2;
}
}
term match-10-subnet {
from {
source-address {
10.210.0.128/26;
}
}
then {
routing-instance vr1;
}
}
}
}
}

C.firewall {
family inet {
filter fbf-filter1 {
term match-192-subnet {
from {
source-address {
192.168.2.0/26;
}
}
then {
routing-instance vr2;
}
}
term match-10-subnet {
from {
source-address {
10.210.1.128/26;
}
}
then {
routing-instance vr1;
}
}
}
}
}

D.firewall {
family inet {
filter fbf-filter1 {
term match-192-subnet {
from {
source-address {
192.168.1.0/24;
}
}
then {
routing-instance vr1;
}
}
term match-10-subnet {
from {
source-address {
10.210.0.128/26;
}
}
then {
routing-instance vr2;
}
}
}
}
}
